MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Hydra-Borer Hydraulic Circuit Parts Diagram

Maxi Sneaker Series E Trencher

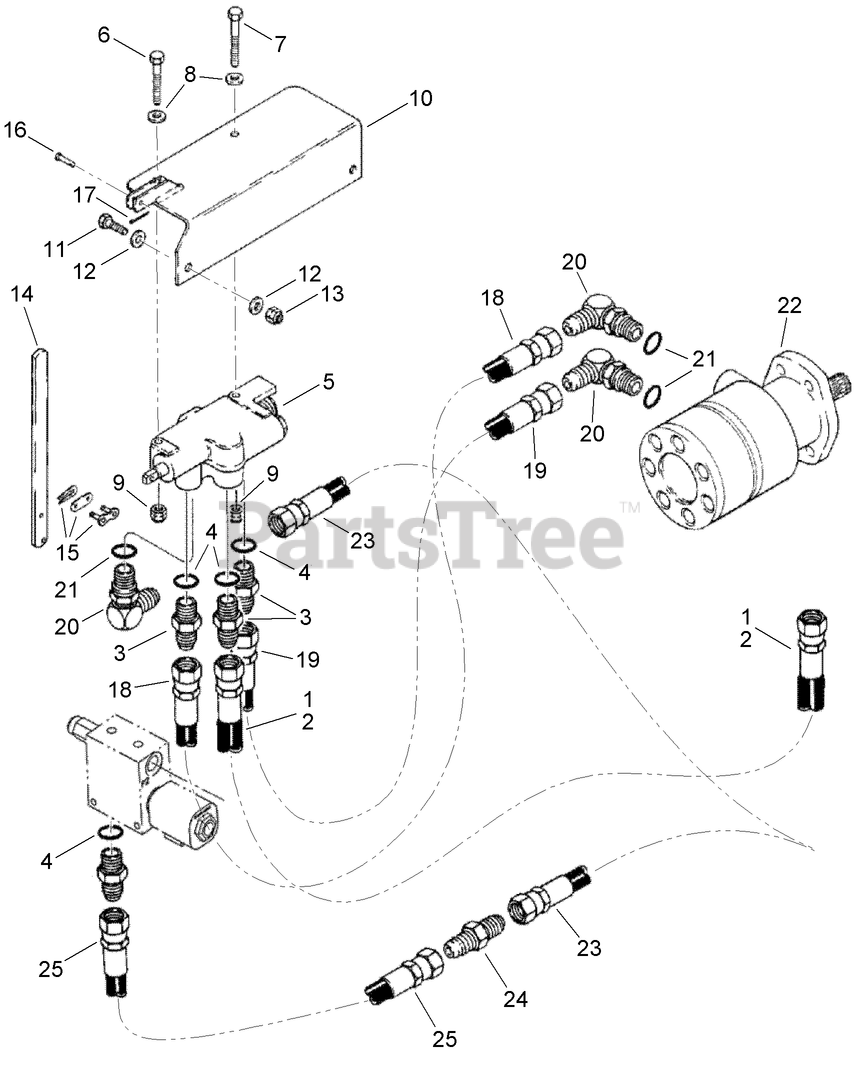

Hydra-Borer Hydraulic Circuit Parts Diagram

  • Title

1

Toro AUL78468

DISCONTINUED

$

$

Not available

2

Toro AUH432542

HOSE-5/8X400

$92.99

$

Usually ships in 3-6 days

0

3

Toro AU218-5062

CONNECTOR-SHORT

$9.49

$

Usually ships in 3-6 days

0

4

Toro AU237-6010

O-RING
(Superseded to 237-80)

$7.49

$

In Stock, Qty 7

0

5

Toro AU107110A1

SINGLE SPOOL VALVE ASM

$

$

Not available

6

Toro AU426-536

See Supercession: 322-11
(Superseded to 322-11)

$1.99

$

In Stock, Qty 18

0

7

Toro AU426-540

BOLT

$0.99

$

Usually ships in 3-6 days

0

8

Toro AU496-11034

See Supercession: 94-6936
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU232-4115

NUT-HEX

$

$

Not available

10

Toro AUH664730

BRACKET - Valve Mounting

$

$

Not available

11

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

14

Toro AUH377325

See Supercession: AUH377325-03
(Superseded to AUH377325-03)

$80.99

$

Usually ships in 3-6 days

0

15

Toro AU241-1315

LINK-#50, CONNECT (SINGLE PITCH)
(Superseded to 116-6897)

$8.99

$

In Stock, Qty 5

0

16

Toro AUH35279

PIN-CLEVIS

$48.99

$

Usually ships in 3-6 days

0

17

Toro AU432-48

See Supercession: 3272-1
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 10

0

18

Toro AUR22412

HOSE-BOOM

$

$

Not available

19

Toro AUD20358

HOSE-1/2X46

$162.99

$

Usually ships in 3-6 days

0

20

Toro AU218-5107

ELBOW-90 ADJ 5/8 TUBE

$10.99

$

Usually ships in 3-6 days

0

21

Toro AU237-6010

O-RING
(Superseded to 237-80)

$7.49

$

In Stock, Qty 7

0

22

Toro AUH673156

HYD MOTOR ASM

$1998.99

$

Usually ships in 3-6 days

0

23

Toro AUH432542

HOSE-5/8X400

$92.99

$

Usually ships in 3-6 days

0

24

Toro AU218-736

FITTING-UNION

$8.49

$

Usually ships in 3-6 days

0

25

Toro AUH431809

HOSE-5/8X1600

$245.99

$

Usually ships in 3-6 days

0
