MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Hydra-Borer Mounting Assembly Parts Diagram

Maxi Sneaker Series E Trencher

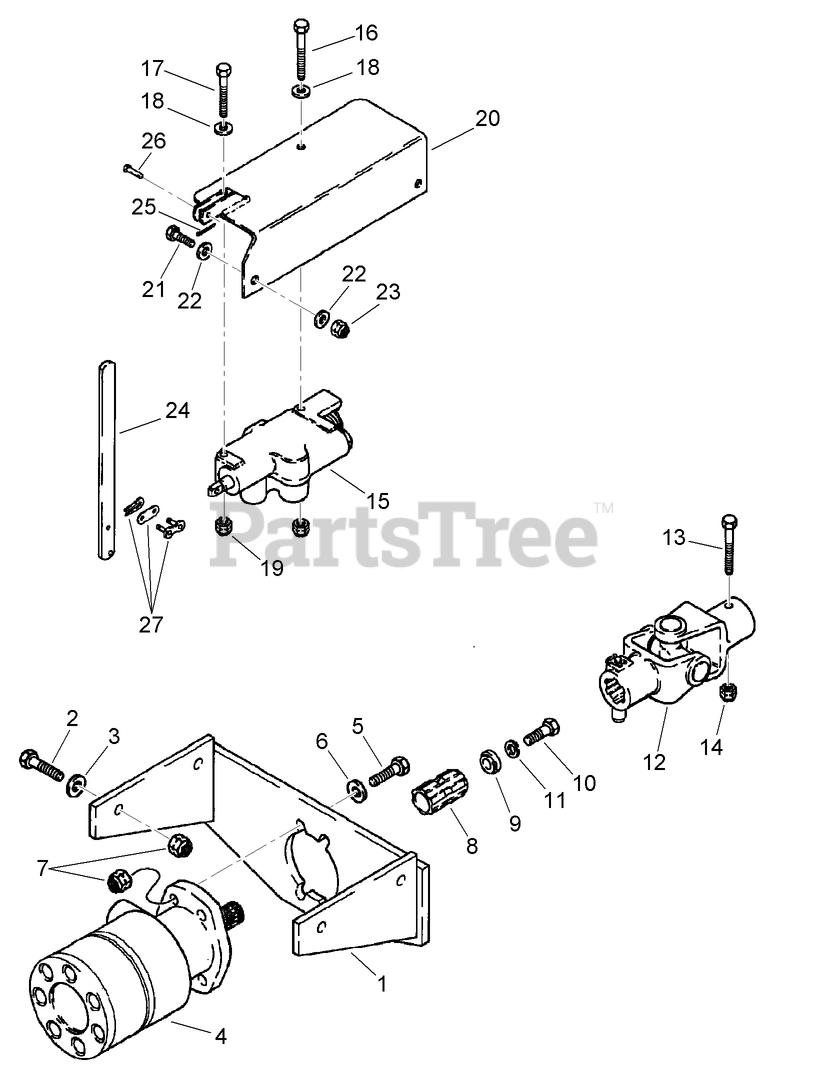

Hydra-Borer Mounting Assembly Parts Diagram

  • Title

1

Toro AU115704A1

MOUNT - Hydra-Borer Motor

$

$

Not available

2

Toro AU426-828

See Supercession: 121-1524
(Superseded to 121-1524)

$3.99

$

Usually ships in 3-6 days

0

3

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

4

Toro AUH673156

HYD MOTOR ASM

$1998.99

$

Usually ships in 3-6 days

0

5

Toro AU426-828

See Supercession: 121-1524
(Superseded to 121-1524)

$3.99

$

Usually ships in 3-6 days

0

6

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

7

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

8

Toro AUH312314

ADAPTER

$326.99

$

Usually ships in 3-6 days

0

9

Toro AUH435886

RETAINER-ADAPTER

$81.99

$

Usually ships in 3-6 days

0

10

Toro AU414-820

See Supercession: 106-0378
(Superseded to 106-0378)

$5.49

$

In Stock, only 3 left!

0

11

Toro AU492-11050

See Supercession: 3253-7
(Superseded to 325-37)

$7.49

$

In Stock, Qty 20+

0

12

Toro AUH511113

See Supercession: AUH511113-03
(Superseded to AUH511113-03)

$406.99

$

Usually ships in 3-6 days

0

13

Toro AU424-640

See Supercession: 323-47
(Superseded to 323-47)

$5.99

$

In Stock, only 1 left!

0

14

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

15

Toro AU107110A1

SINGLE SPOOL VALVE ASM

$

$

Not available

16

Toro AU426-540

BOLT

$0.99

$

Usually ships in 3-6 days

0

17

Toro AU426-536

See Supercession: 322-11
(Superseded to 322-11)

$1.99

$

In Stock, Qty 18

0

18

Toro AU496-11034

See Supercession: 94-6936
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

19

Toro AU232-4115

NUT-HEX

$

$

Not available

20

Toro AUH664730

BRACKET - Valve Mounting

$

$

Not available

21

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

22

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

23

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

24

Toro AUH377325

See Supercession: AUH377325-03
(Superseded to AUH377325-03)

$80.99

$

Usually ships in 3-6 days

0

25

Toro AU432-48

See Supercession: 3272-1
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 10

0

26

Toro AUH35279

PIN-CLEVIS

$48.99

$

Usually ships in 3-6 days

0

27

Toro AU241-1315

LINK-#50, CONNECT (SINGLE PITCH)
(Superseded to 116-6897)

$8.99

$

In Stock, Qty 5

0
