MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Instrument and Electrical Assembly Parts Diagram

Maxi Sneaker Series E Trencher

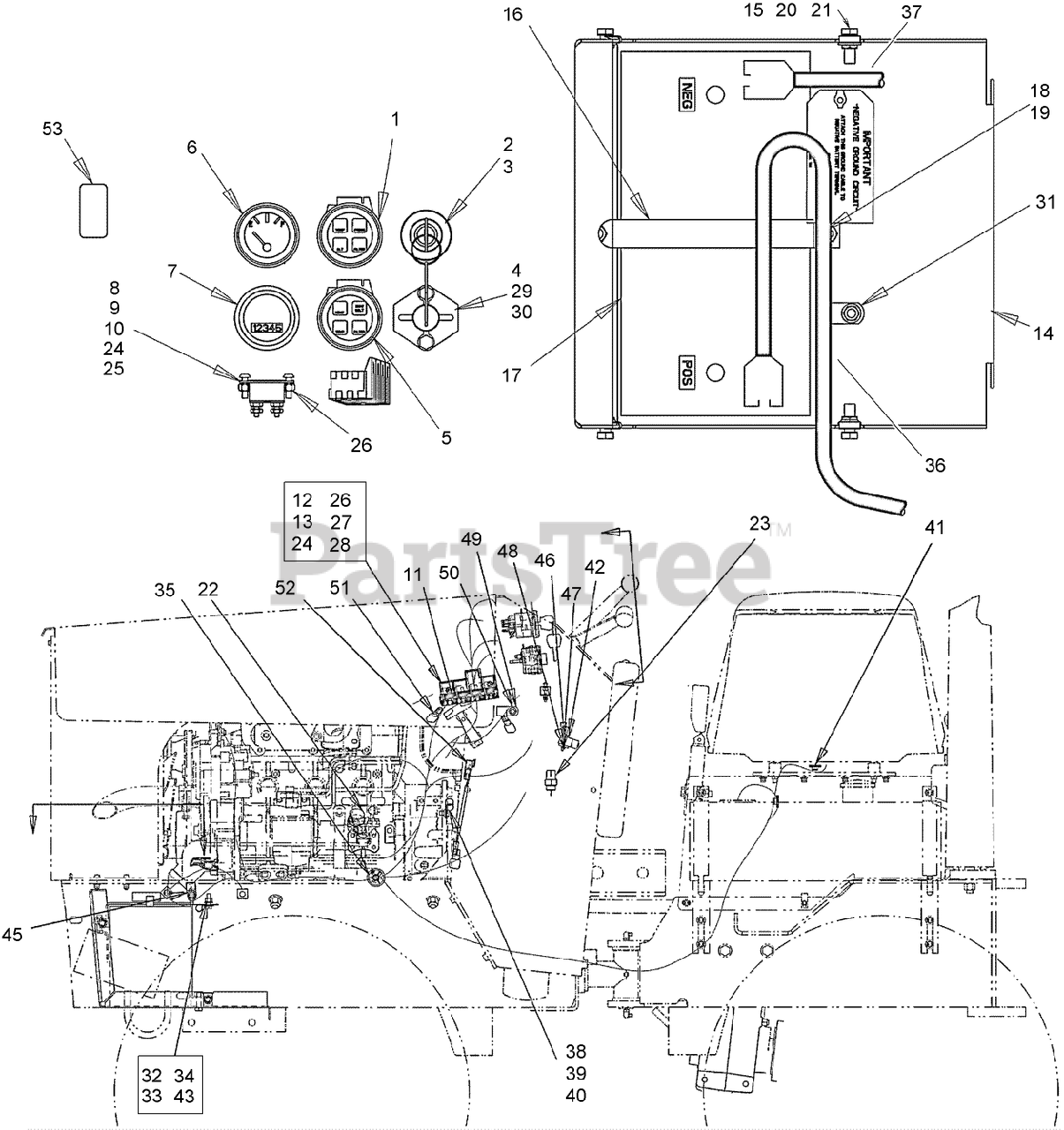

Instrument and Electrical Assembly Parts Diagram

  • Title

Toro AU125687

INSTRUMENTS AND ELECTRICAL REF

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUH437690

CLUSTER-ENGINE

$198.99

$

Usually ships in 3-6 days

0

2

Toro AU103815

SWITCH-IGNITION

$72.99

$

Usually ships in 3-6 days

0

3

Toro AU195-81015

WASHER-FLAT

$12.99

$

Usually ships in 3-6 days

0

4

Toro AUH35048

SWITCH-STARTER

$107.99

$

Usually ships in 3-6 days

0

5

Toro AU143128A1

CLUSTER-HYD W/NEUT IND

$

$

Not available

6

Toro AUH437688

GAUGE-FUEL

$195.99

$

Usually ships in 3-6 days

0

7

Toro AU411857A1

METER-HOUR, ELECTRONIC

$251.99

$

Usually ships in 3-6 days

0

8

Toro AUL104328

BREAKER-CIRCUIT, 25A

$61.99

$

Usually ships in 3-6 days

0

9

Toro AU493-41020

WASHER-TOOTHED LOCK #10
(Superseded to 3255-17)

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU225-14210

NUT - Hex, #10-32 UNF, 303 Stainless Steel

$

$

Not available

11

Toro AU110719

HARNESS-WIRING - MAIN

$1099.99

$

Usually ships in 3-6 days

0

12

Toro AUD128310

RELAY-30/40 AMP

$33.99

$

Usually ships in 3-6 days

0

13

Toro AU224787A1

See Supercession: 127-8418
(Superseded to 127-8418)

$308.99

$

Usually ships in 3-6 days

0

14

Toro AUH673382

TRAY - Battery

$

$

Not available

15

Toro AU131-634

NUT-SPRING

$5.99

$

Usually ships in 3-6 days

0

16

Toro AUH436777

See Supercession: AUH436777-03
(Superseded to AUH436777-03)

$129.99

$

Usually ships in 3-6 days

0

17

BATTERY - 12 Volt (order from local Exide supplier)

Note: Not serviced separately

$

$

Not available

18

Toro AU426-620

See Supercession: 323-44
(Superseded to 323-44)

$5.99

$

Usually ships in 3-6 days

0

19

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

20

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

21

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

22

Toro AU292950A1

SWITCH-PRESSURE, VACUUM

$55.99

$

Usually ships in 3-6 days

0

23

Toro AUH81935

DISCONTINUED

$

$

Not available

24

Toro AU459-11012

SCREW - Machine, 10 - 32 x 3/4 Slotted Pan Head

$

$

Not available

25

Toro AU492-11010

WASHER-LOCK, 3/16 REG. ZND

$0.99

$

Usually ships in 3-6 days

0

26

Toro AU231-24409

NUT - Prev Trq #10 GR8 ZND Insert

$

$

Currently unavailable

27

Toro AU495-31020

See Supercession: 3256-14
(Superseded to 3256-14)

$0.99

$

In Stock, Qty 20+

0

28

Toro AU87420999

INSERT - 10-32 Short Well Nut

$

$

Not available

29

Toro AU426-412

BOLT

$0.99

$

Usually ships in 3-6 days

0

30

Toro AU232-4114

NUT-PREV TRQ

$

$

Not available

31

Toro AU515-23127

CLAMP-12.7MM ""P"" INSUL 3/8

$2.49

$

Usually ships in 3-6 days

0

32

Toro AU426-516

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

33

Toro AU496-11034

See Supercession: 94-6936
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

34

Toro AU232-4115

NUT-HEX

$

$

Not available

35

Toro AUH139634

SWITCH-PRESSURE

$115.99

$

Usually ships in 3-6 days

0

36

Toro AUD136982

CABLE-BATTERY - POSITIVE

$

$

Not available

37

Toro AUH106096

CABLE-BATTERY

$76.99

$

Usually ships in 3-6 days

0

38

Toro AU515-23159

CLAMP-R

$1.49

$

Usually ships in 3-6 days

0

39

Toro AU614-8014

BOLT-M8 X 14 CLASS 8.8 ZND
(Superseded to 33114-016)

$0.99

$

In Stock, Qty 20+

0

40

Toro AU892-11008

WASHER - Spring Lock Reg 8mm ZND.

$

$

Not available

41

Toro AUH439303

CLIP-WIRE - HARNESS

$5.49

$

Usually ships in 3-6 days

0

42

Toro AU86992539

SWITCH-NEUTRAL START

$280.99

$

Usually ships in 3-6 days

0

43

Toro AU102569

TAG-NEGATIVE GROUND CIRCUIT

$13.99

$

Usually ships in 3-6 days

0

44

Toro AUH256990

CABLE-BLACK

Note: Not illustrated

$

$

Not available

45

Toro AU493-41033

WASHER-TOOTHED LOCK 5/16 ZND
(Superseded to 3255-8)

$0.99

$

In Stock, Qty 10

0

46

Toro AU102475

BOLT-U

$12.99

$

Usually ships in 3-6 days

0

47

Toro AU101637

SPACER-SWITCH

$3.49

$

Usually ships in 3-6 days

0

48

Toro AU193-1003

NUT-KEPS EXT T WSHR #6-32 ZP

$0.99

$

Usually ships in 3-6 days

0

49

Toro AU515-23190

CLAMP-19MM ""P"" INSUL 3/8 BO

$1.99

$

Usually ships in 3-6 days

0

50

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

51

Toro AUL71879

DIODE

$26.99

$

Usually ships in 3-6 days

0

52

Toro AU102470

DISCONTINUED

$

$

Not available

53

Toro AU382892A1

BLANK-SWITCH, ROCKER
(Superseded to 99-7420)

$9.49

$

Usually ships in 3-6 days

0

54

Toro AU110720

SCHEMATIC - Electrical

Note: Not illustrated

$

$

Not available
