Maxi Sneaker Series E Trencher

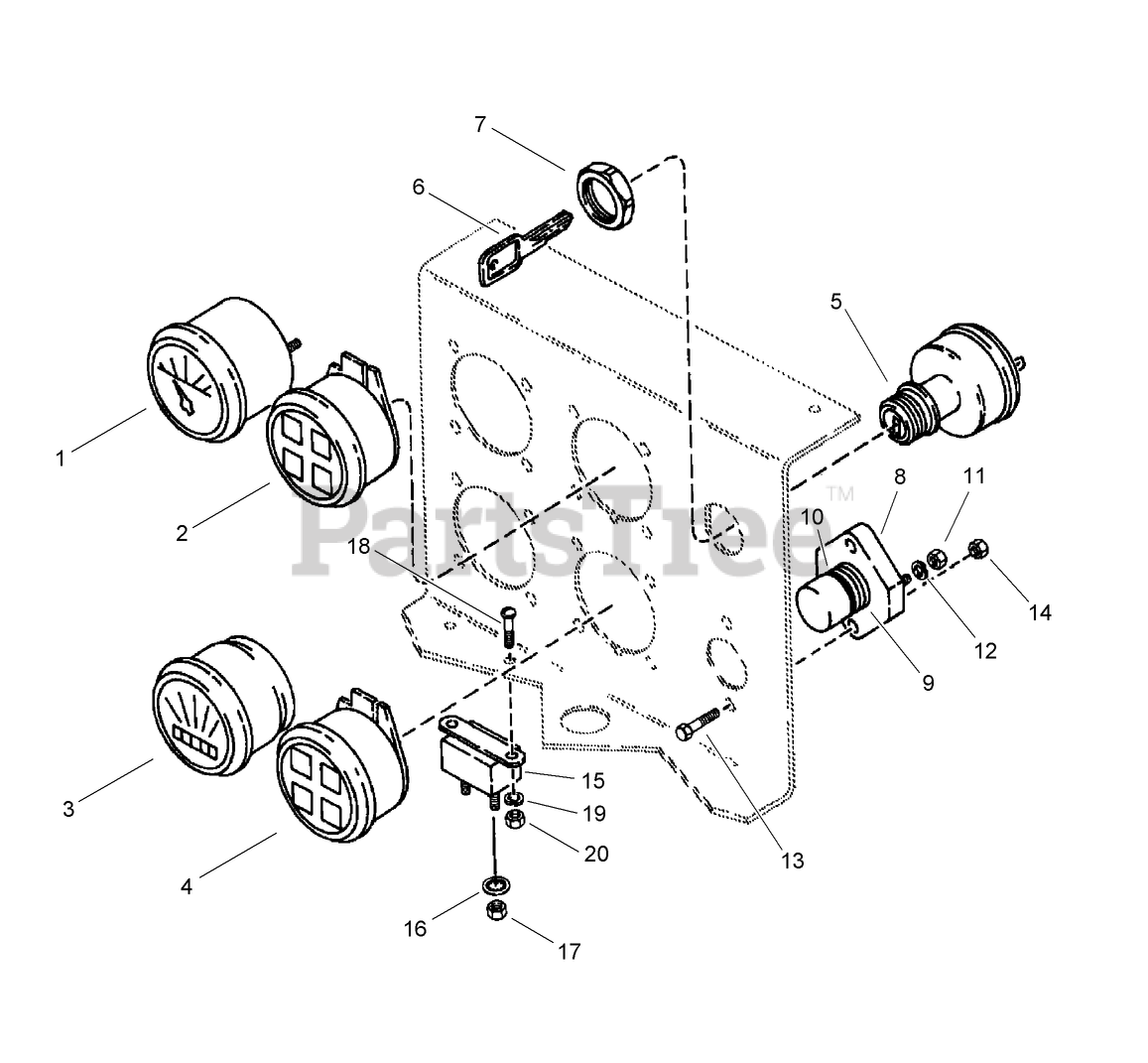

Instrument and Mounting Assembly Parts Diagram

  • Title

1

Toro AUH437688

GAUGE-FUEL

$195.99

$

Usually ships in 3-6 days

0

2

Toro AUH437690

CLUSTER-ENGINE

$198.99

$

Usually ships in 3-6 days

0

3

Toro AU411857A1

METER-HOUR, ELECTRONIC

$251.99

$

Usually ships in 3-6 days

0

4

Toro AU143128A1

CLUSTER-HYD W/NEUT IND

$

$

Not available

4

Toro AU103815

SWITCH-IGNITION

$72.99

$

Usually ships in 3-6 days

0

5

SWITCH - Ignition

Note: Not serviced separately

$

$

Not available

6

Toro AU103816

KEY-IGNITION

$30.99

$

Usually ships in 3-6 days

0

7

NUT - Hex, Special, Key Switch Mounting

Note: Not serviced separately

$

$

Not available

7

Toro AUH35048

SWITCH-STARTER

$107.99

$

Usually ships in 3-6 days

0

8

SWITCH - Heater

Note: Not serviced separately

$

$

Not available

9

SPRING - Heater Switch

Note: Not serviced separately

$

$

Not available

10

O-RING - Switch

Note: Not serviced separately

$

$

Not available

11

Toro AU425-115

See Supercession: 3219-2
(Superseded to 3219-2)

$0.99

$

In Stock, Qty 20+

0

12

Toro AU492-11031

WASHER-LOCK, 5/16 REG. ZND

$

$

Not available

13

Toro AU426-412

BOLT

$0.99

$

Usually ships in 3-6 days

0

14

Toro AU232-4114

NUT-PREV TRQ

$

$

Not available

15

Toro AUL104328

BREAKER-CIRCUIT, 25A

$61.99

$

Usually ships in 3-6 days

0

16

Toro AU493-41020

WASHER-TOOTHED LOCK #10
(Superseded to 3255-17)

$0.99

$

Usually ships in 3-6 days

0

17

Toro AU225-14210

NUT - Hex, #10-32 UNF, 303 Stainless Steel

$

$

Not available

18

Toro AU459-11012

SCREW - Machine, 10 - 32 x 3/4 Slotted Pan Head

$

$

Not available

19

Toro AU492-11010

WASHER-LOCK, 3/16 REG. ZND

$0.99

$

Usually ships in 3-6 days

0

20

Toro AU225-14210

NUT - Hex, #10-32 UNF, 303 Stainless Steel

$

$

Not available

21

Toro AUN8320

BULB

Note: Not illustrated

$10.99

$

Usually ships in 3-6 days

0

22

Toro AU382892A1

BLANK-SWITCH, ROCKER
(Superseded to 99-7420)

Note: Not illustrated

$9.49

$

Usually ships in 3-6 days

0
