Maxi Sneaker Series E Trencher

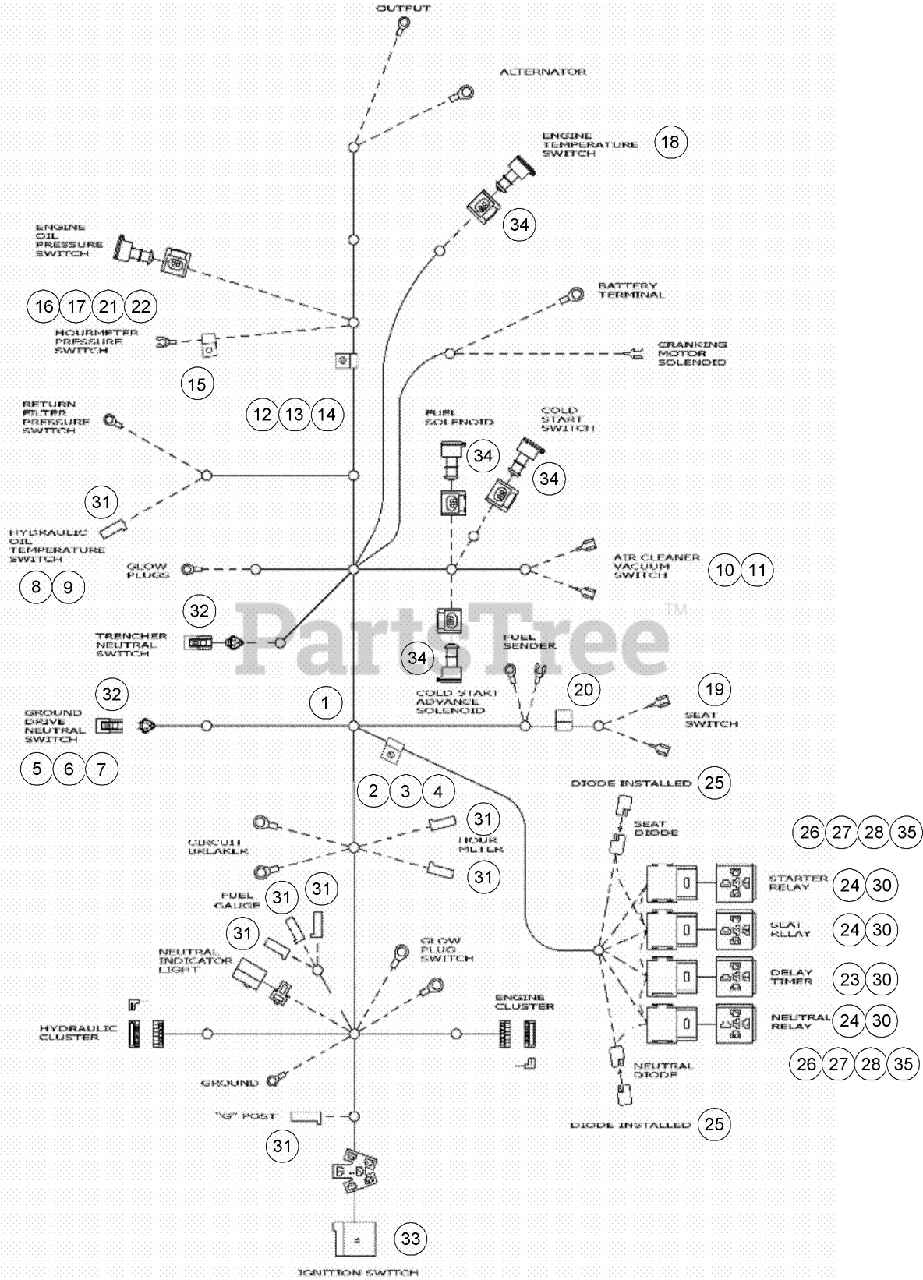

Main Wiring Harness and Connection Assembly Parts Diagram

  • Title

1

Toro AU110719

HARNESS-WIRING - MAIN

$1099.99

$

Usually ships in 3-6 days

0

2

Toro AU515-23159

CLAMP-R

$1.49

$

Usually ships in 3-6 days

0

3

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU86992539

SWITCH-NEUTRAL START

$280.99

$

Usually ships in 3-6 days

0

6

Toro AU102475

BOLT-U

$12.99

$

Usually ships in 3-6 days

0

7

Toro AU193-1003

NUT-KEPS EXT T WSHR #6-32 ZP

$0.99

$

Usually ships in 3-6 days

0

8

Toro AU221-607

REDUCER

$33.99

$

Usually ships in 3-6 days

0

9

Toro AUH81935

DISCONTINUED

$

$

Not available

10

Toro AU1983233C1

See Supercession: AU292950A1
(Superseded to AU292950A1)

$55.99

$

Usually ships in 3-6 days

0

11

Toro AU221-1335

COUPLING-1/8 GALV 90 STD

$7.49

$

Usually ships in 3-6 days

0

12

Toro AU515-23159

CLAMP-R

$1.49

$

Usually ships in 3-6 days

0

13

Toro AU614-8014

BOLT-M8 X 14 CLASS 8.8 ZND
(Superseded to 33114-016)

$0.99

$

In Stock, Qty 20+

0

14

Toro AU892-11008

WASHER - Spring Lock Reg 8mm ZND.

$

$

Not available

15

Toro AU515-23127

CLAMP-12.7MM ""P"" INSUL 3/8

$2.49

$

Usually ships in 3-6 days

0

16

Toro AU892-11006

WASHER-LOCK - #6
(Superseded to 43-5930)

$1.49

$

Usually ships in 3-6 days

0

17

Toro AU825-1406

NUT-M6 CLASS 8 ZND

$

$

Not available

18

SWITCH-Water Temperature

Note: Not serviced separately

$

$

Not available

19

Toro AU175875A1

SWITCH-SEAT TWIST MOUNT

$50.99

$

Usually ships in 3-6 days

0

20

Toro AUH439303

CLIP-WIRE - HARNESS

$5.49

$

Usually ships in 3-6 days

0

21

Toro AU194291A1

TEE-SPCL 1/8

$230.99

$

Usually ships in 3-6 days

0

22

Toro AUH139634

SWITCH-PRESSURE

$115.99

$

Usually ships in 3-6 days

0

23

Toro AU224787A1

See Supercession: 127-8418
(Superseded to 127-8418)

$308.99

$

Usually ships in 3-6 days

0

24

Toro AUD128310

RELAY-30/40 AMP

$33.99

$

Usually ships in 3-6 days

0

25

Toro AUL71879

DIODE

$26.99

$

Usually ships in 3-6 days

0

26

Toro AU459-11012

SCREW - Machine, 10 - 32 x 3/4 Slotted Pan Head

$

$

Not available

27

Toro AU495-31020

See Supercession: 3256-14
(Superseded to 3256-14)

$0.99

$

In Stock, Qty 20+

0

28

Toro AU231-24409

NUT - Prev Trq #10 GR8 ZND Insert

$

$

Currently unavailable

30

Toro AU245731C1

CONNECTOR-RELAY

$

$

Not available

31

Toro AU223-154

CONNECTOR - Electrical

$

$

Not available

32

Toro AU225295C1

CONNECTOR - Electrical

$

$

Currently unavailable

33

Toro AU225253C1

BODY-CONNECTOR

$

$

Not available

34

CONNECTOR - Junior Power Timer

Note: Not serviced separately

$

$

Not available

35

Toro AU87420999

INSERT - 10-32 Short Well Nut

$

$

Not available
