MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Plow Attachment Assembly Parts Diagram

Maxi Sneaker Series E Trencher

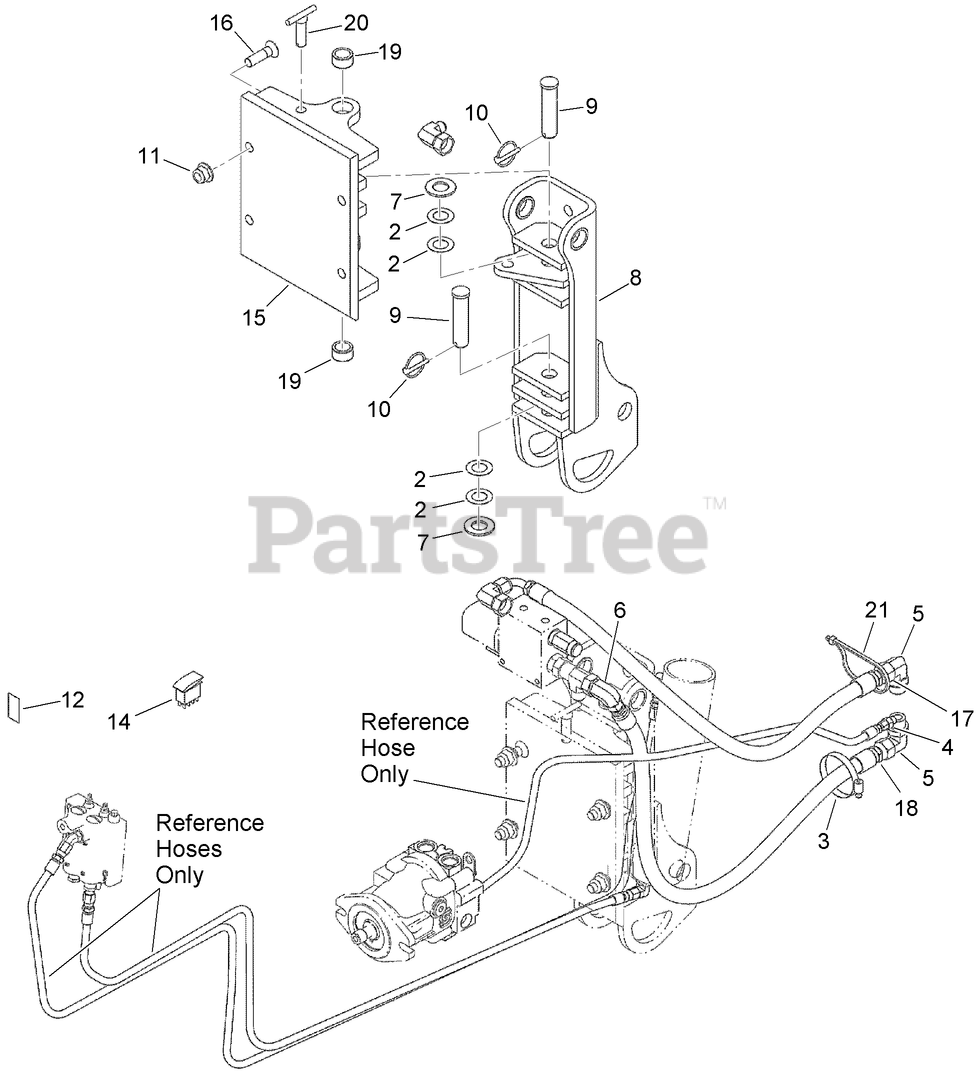

Plow Attachment Assembly Parts Diagram

  • Title

Toro AU198781A1

ASSEMBLY - Plow Attachment

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU7-52550

INSTRUCTIONS - P40 Plow

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU195-81015

WASHER-FLAT

$12.99

$

Usually ships in 3-6 days

0

3

Toro AU214-1456

CLAMP-HOSE TYPE F #56

$8.49

$

Usually ships in 3-6 days

0

4

Toro AU218-5057

FITTING-STRAIGHT

$4.49

$

Usually ships in 3-6 days

0

5

Toro AU218-5108

FITTING-ELBOW,90

$34.99

$

Usually ships in 3-6 days

0

6

Toro AU218-5377

FITTING-ELBOW, 90

$58.99

$

Usually ships in 3-6 days

0

7

Toro AU495-11106

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

8

Toro AU112368A1

See Supercession: 127-1044
(Superseded to 127-1044)

$1605.99

$

Usually ships in 3-6 days

0

9

Toro AU113192A1

PIN-PIVOT

$179.99

$

Usually ships in 3-6 days

0

10

Toro AUA30338

See Supercession: 107-3039
(Superseded to 107-3039)

$11.99

$

In Stock, only 2 left!

0

11

Toro AU100529

NUT-HHF

$8.49

$

Usually ships in 3-6 days

0

12

Toro AU106750

DISCONTINUED SEE NOTES

$

$

Not available

13

Toro AU107045

HARNESS-PLOW

Note: Not illustrated

$

$

Not available

14

Toro AU107046

SWITCH - SPST

$

$

Not available

Toro AUTX444305

SWITCH-SPST ON/OFF W/LIGHT

Note: Not illustrated

$37.99

$

Usually ships in 3-6 days

0

Toro AUTX444361

ACTUATOR-HARD BLACK

Note: Not illustrated

$6.99

$

Usually ships in 3-6 days

0

15

Toro AU107916

SLIDE-QUICK ATTACH

$

$

Not available

16

Toro AU107931

SCREW-HSFH

$18.99

$

Usually ships in 3-6 days

0

17

Toro AU109217

HOSE-HYD - 3000PSI, -10-12

$251.99

$

Usually ships in 3-6 days

0

18

Toro AU109253

HOSE-HYD - 3000PSI, -10-12

$

$

Not available

19

Toro AUD34818

BUSHING-UPPER

$147.99

$

Usually ships in 3-6 days

0

20

Toro AUH582585

LOCK-SWING

$149.99

$

Usually ships in 3-6 days

0

21

Toro AUL18331

STRAP-TIE

$2.99

$

Usually ships in 3-6 days

0
