MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Plow Gearbox and Motor Mounting Assembly P40 Plow Parts Diagram

Maxi Sneaker Series E Trencher

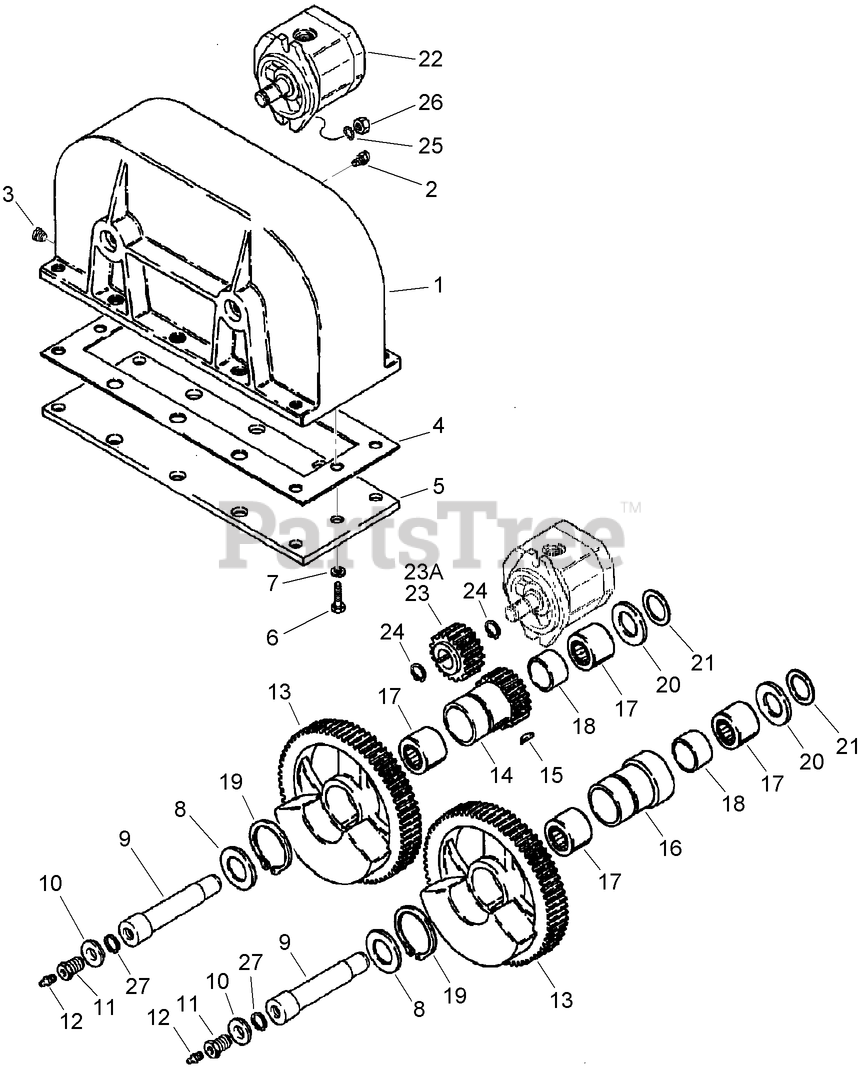

Plow Gearbox and Motor Mounting Assembly P40 Plow Parts Diagram

  • Title

Toro AUH530204

GEAR CASE ASM

Note: Not illustrated

$

$

Not available

1

Toro AUH113209

See Supercession: AUH113209-03
(Superseded to AUH113209-03)

$2217.99

$

Usually ships in 3-6 days

0

2

Toro AU152127H1

See Supercession: AUL33264
(Superseded to AUL33264)

$14.99

$

Usually ships in 3-6 days

0

3

Toro AU217-430

PLUG-1/8

$1.99

$

Usually ships in 3-6 days

0

4

Toro AUH113266

GASKET-GEARBOX

$22.99

$

Usually ships in 3-6 days

0

5

Toro AUH113274

See Supercession: AUH113274-03
(Superseded to AUH113274-03)

$146.99

$

Usually ships in 3-6 days

0

6

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

7

Toro AU492-11038

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, only 4 left!

0

8

Toro AUH159160

WASHER-THRUST

$38.99

$

Usually ships in 3-6 days

0

9

Toro AUH436788

PIN-BEARING

$294.99

$

Usually ships in 3-6 days

0

10

Toro AUH436789

WASHER-FLAT, STEPPED

$32.99

$

Usually ships in 3-6 days

0

11

Toro AUD136218

ADAPTER-LOCATING

$55.99

$

Usually ships in 3-6 days

0

12

Toro AU219-17

See Supercession: 302-63
(Superseded to 302-63)

$3.49

$

In Stock, only 4 left!

0

13

Toro AUH113217

GEAR

$2841.99

$

Usually ships in 3-6 days

0

14

Toro AUH113225

HUB-DRIVE, BEARING

$1069.99

$

Usually ships in 3-6 days

0

15

Toro AUH120550

KEY-SQ

$34.99

$

Usually ships in 3-6 days

0

16

Toro AUH113233

HUB-BEARING

$292.99

$

Usually ships in 3-6 days

0

17

Toro AUH748210

BEARING-PITCH LINE

$92.99

$

Usually ships in 3-6 days

0

18

Toro AUH369496

SPACER

$79.99

$

Usually ships in 3-6 days

0

19

Toro AU103-11225

RING-RETAINING

$4.49

$

Usually ships in 3-6 days

0

20

Toro AUH113241

WASHER-10 GAUGE

$30.99

$

Usually ships in 3-6 days

0

21

Toro AUH357517

WASHER

$15.99

$

Usually ships in 3-6 days

0

22

Toro AU117652A1

SEE NOTES - FORWARD TO PARTS REP

$

$

Not available

23

Toro AUH113282

GEAR-MOUNTING, DRIVE

$399.99

$

Usually ships in 3-6 days

0

23A

Toro AU380530A1

KEY

Note: Not illustrated

$67.99

$

Usually ships in 3-6 days

0

24

Toro AU100-1168

See Supercession: 32151-79
(Superseded to 32151-79)

$6.49

$

Usually ships in 3-6 days

0

25

Toro AU493-41046

WASHER-TOOTHED, LOCK

$0.99

$

Usually ships in 3-6 days

0

26

Toro AU232-4117

NUT-HEX LOCK 7/16-14 CAD GRD C

$

$

Not available

27

Toro AU100-21125

RING-#125 1.388 BASIC INT RET

$

$

Not available
