MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Plow Hydraulic Circuit Plow Lift and Swing - P75 Plow Parts Diagram

Maxi Sneaker Series E Trencher

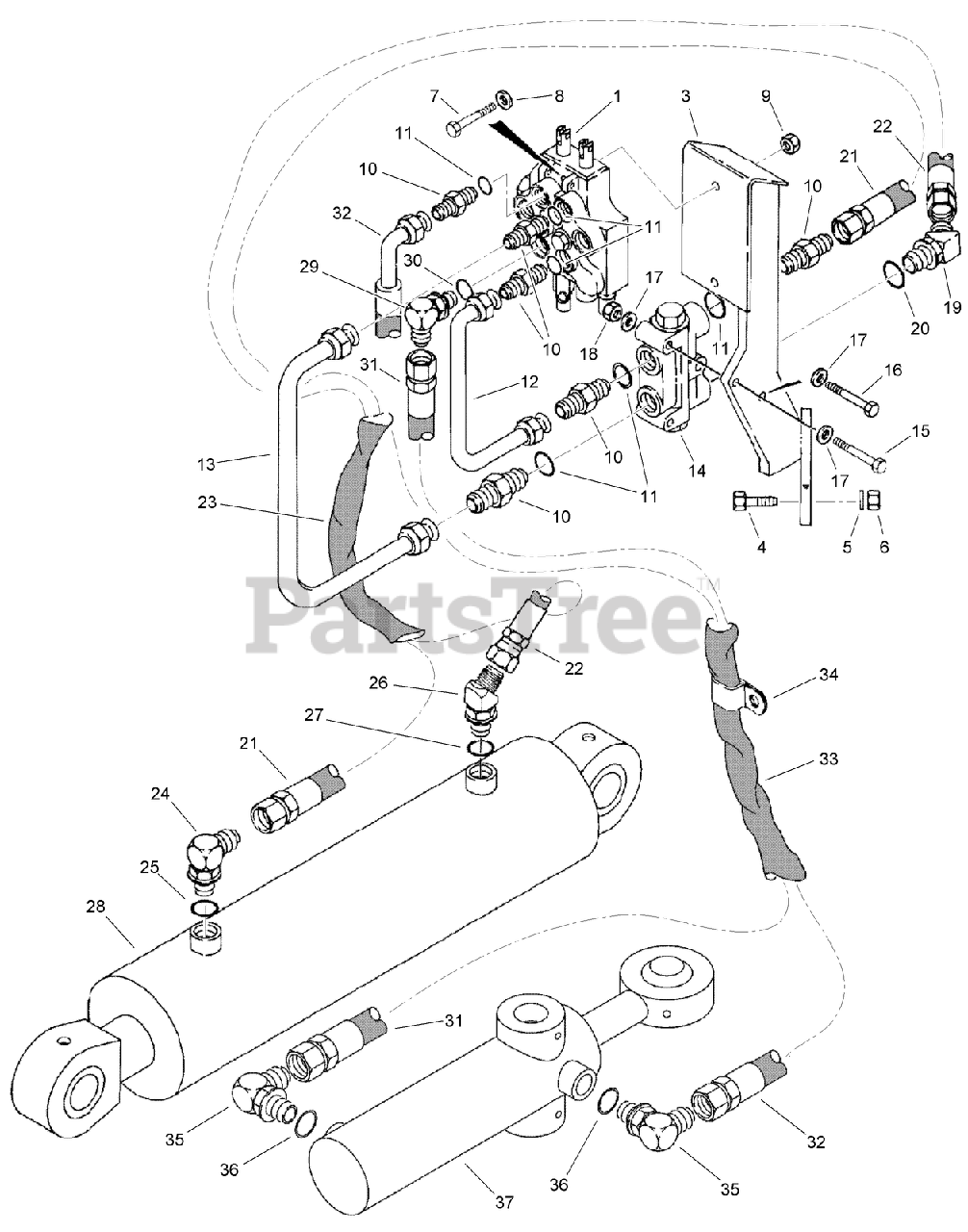

Plow Hydraulic Circuit Plow Lift and Swing - P75 Plow Parts Diagram

  • Title

1

Toro AU220409A1

VALVE-CONTROL

$

$

Not available

2

Toro AU127447A1

DECAL-CONTROL VALVE

Note: Not illustrated

$11.99

$

Usually ships in 3-6 days

0

3

Toro AU177568A1

MOUNT ASM-VALVE

$1346.99

$

Usually ships in 3-6 days

0

4

Toro AU426-824

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

5

Toro AUH274894

WASHER

$2.99

$

Usually ships in 3-6 days

0

6

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

7

Toro AU426-544

BOLT - Hex, 5/16 NC x 2-3/4 inch

$

$

Not available

8

Toro AU496-11034

See Supercession: 94-6936
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU232-4115

NUT-HEX

$

$

Not available

10

Toro AU218-5058

CONNECTOR

$6.49

$

Usually ships in 3-6 days

0

11

Toro AU237-6008

See Supercession: AU128825
(Superseded to AU128825)

$

$

Not available

12

Toro AU127537A1

TUBE ASM-SWING

$78.99

$

Usually ships in 3-6 days

0

13

Toro AU127538A1

TUBE ASM-HYDRAULIC

$106.99

$

Usually ships in 3-6 days

0

14

Toro AUH672547

HYD LOCKOUT VALVE ASM

$

$

Not available

15

Toro AU426-544

BOLT - Hex, 5/16 NC x 2-3/4 inch

$

$

Not available

16

Toro AU426-548

BOLT - Hex, 5/16 NC x 3 inch

$

$

Not available

17

Toro AU496-11034

See Supercession: 94-6936
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

18

Toro AU232-4115

NUT-HEX

$

$

Not available

19

Toro AU218-5148

ELBOW-45 ADJ 37FL 3/8 X 1/2 T

$12.99

$

Usually ships in 3-6 days

0

20

Toro AU237-6008

See Supercession: AU128825
(Superseded to AU128825)

$

$

Not available

21

Toro AU231082A1

HOSE ASM-HYD, 685MM

$108.99

$

Usually ships in 3-6 days

0

22

Toro AU231083A1

HOSE ASM, HYDRAULIC, 450MM

$97.99

$

Usually ships in 3-6 days

0

23

Toro AU183444A1

SLEEVE - Nylon, 32 (1-1/4) ID x 250 mm (9-7/8 inch) Long, Lift Cylinder Hoses

$

$

Currently unavailable

24

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$4.99

$

Usually ships in 3-6 days

0

25

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

26

Toro AU218-5135

ELBOW-45

$

$

Not available

27

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

28

Toro AU118918

CYLINDER-3.5"BX11.4"SX1.5"R

$1974.99

$

Usually ships in 3-6 days

0

29

Toro AU218-5128

See Supercession: 353-537
(Superseded to 353-537)

$15.99

$

Usually ships in 3-6 days

0

30

Toro AU237-6008

See Supercession: AU128825
(Superseded to AU128825)

$

$

Not available

31

Toro AU231081A1

HOSE ASM, HYDRAULIC

$

$

Not available

32

Toro AU117279A1

HOSE ASM-HYD

$

$

Not available

33

Toro AU183444A1

SLEEVE - Nylon, 32 (1-1/4) ID x 250 mm (9-7/8 inch) Long, Lift Cylinder Hoses

$

$

Currently unavailable

34

Toro AUL71188

CLAMP-HOSE RETAINING

$5.49

$

Usually ships in 3-6 days

0

35

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$4.99

$

Usually ships in 3-6 days

0

36

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

37

Toro AU230679A1

CYLINDER-HYDRAULIC

$1620.99

$

Usually ships in 3-6 days

0
