MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Plow Lift/Swing Control Valve Assembly P75 Plow Parts Diagram

Maxi Sneaker Series E Trencher

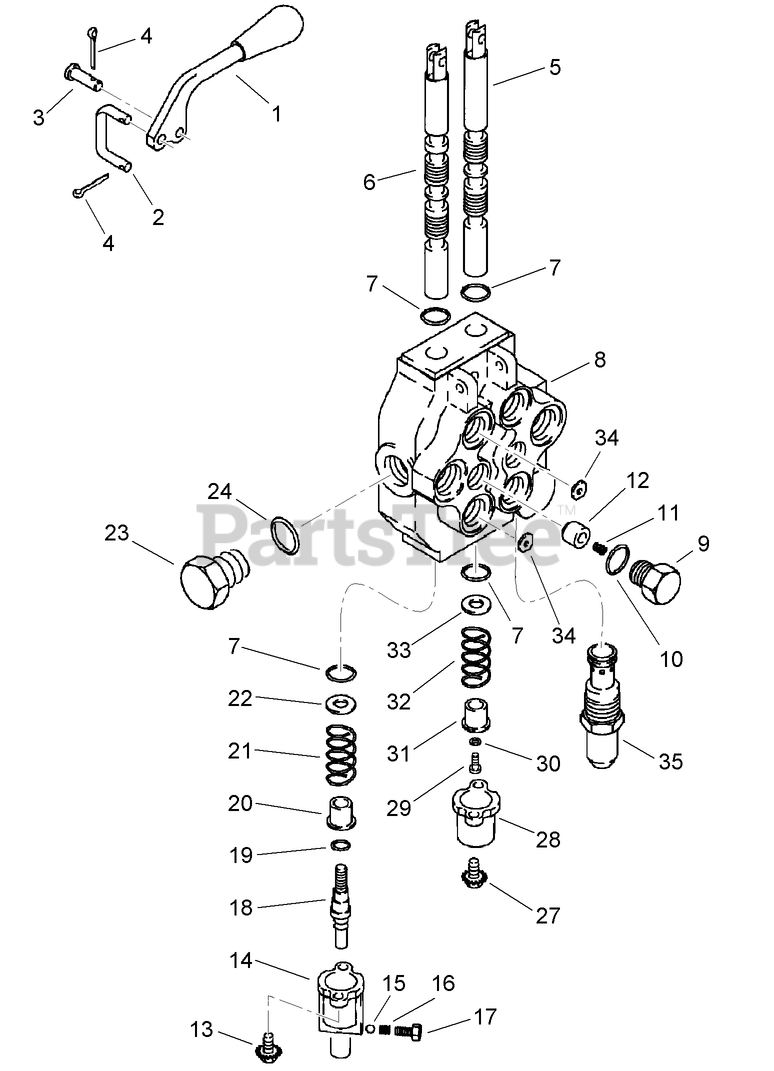

Plow Lift/Swing Control Valve Assembly P75 Plow Parts Diagram

  • Title

Toro AU220409A1

VALVE-CONTROL

Note: Not illustrated

$

$

Not available

1

Toro AU138306A1

HANDLE

$115.99

$

Usually ships in 3-6 days

0

2

Toro AUH438042

HOOK-C

$37.99

$

Usually ships in 3-6 days

0

3

Toro AU427-4077

PIN-CLEVIS
(Superseded to 1-808265)

$3.99

$

Usually ships in 3-6 days

0

4

Toro AU432-412

See Supercession: 3272-2
(Superseded to 327-22)

$14.99

$

Usually ships in 3-6 days

0

5

SPOOL - Plow Control Valve, Lift Section

Note: Not serviced separately

$

$

Not available

6

SPOOL - Plow Control Valve, Swing Section

Note: Not serviced separately

$

$

Not available

7

Toro AUH438030

DISCONTINUED

$

$

Not available

8

BODY - Control Valve

Note: Not serviced separately

$

$

Not available

Toro AU142999A1

KIT-CHECK

Note: Not illustrated

$

$

Not available

9

PLUG - Load Check

Note: Not serviced separately

$

$

Not available

10

O-RING - Plug

Note: Not serviced separately

$

$

Not available

11

SPRING - Load Check

Note: Not serviced separately

$

$

Not available

12

POPPET - Load Check

Note: Not serviced separately

$

$

Not available

Toro AU138313A1

KIT-DETENT

Note: Not illustrated

$485.99

$

Usually ships in 3-6 days

0

13

SCREW - Includes Lock Washer, Detent Float

Note: Not serviced separately

$

$

Not available

14

Toro AUN9540

HOUSING - Detent

$

$

Currently unavailable

15

BALL - Detent Cap

Note: Not serviced separately

$

$

Not available

16

Toro AUN9506

SPRING - Detent

$

$

Not available

17

Toro AUD86560

PLUG - Detent

$

$

Currently unavailable

18

SPOOL - Detent

Note: Not serviced separately

$

$

Not available

19

O-RING - Detent Spool

Note: Not serviced separately

$

$

Not available

20

Toro AUD86559

SEAT - Spring, Lift Spool

$

$

Currently unavailable

21

Toro AUD86558

SPRING - Return

$

$

Currently unavailable

22

Toro AUD86557

WASHER - Lift Spool

$

$

Currently unavailable

23

Toro AU132547A1

PLUG - Hex, Power Beyond Port

$

$

Currently unavailable

24

Toro AU237-6012

O-RING, 3/4 OD TUBE CLASS 6

$

$

Not available

Toro AUH674816

SEE NOTES - FORWARD TO PARTS REP

Note: Not illustrated

$

$

Not available

27

SCREW - Includes Lock Washer

Note: Not serviced separately

$

$

Not available

28

Toro AUN9528

CAP - Bucket Spool End

$

$

Currently unavailable

29

Toro AU62-7108

SCREW-BH 10-32 X

$

$

Not available

30

Toro AU495-11034

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

31

Toro AUN9529

SPACER

$18.99

$

Usually ships in 3-6 days

0

32

Toro AUN9539

SPRING-RETURN

$

$

Currently unavailable

33

WASHER - Spring Seat, Spool

Note: Not serviced separately

$

$

Not available

34

Toro AU141141A1

PLATE

$

$

Not available

35

Toro AU138303A1

VALVE - Relief

$

$

Currently unavailable
