Maxi Sneaker Series E Trencher

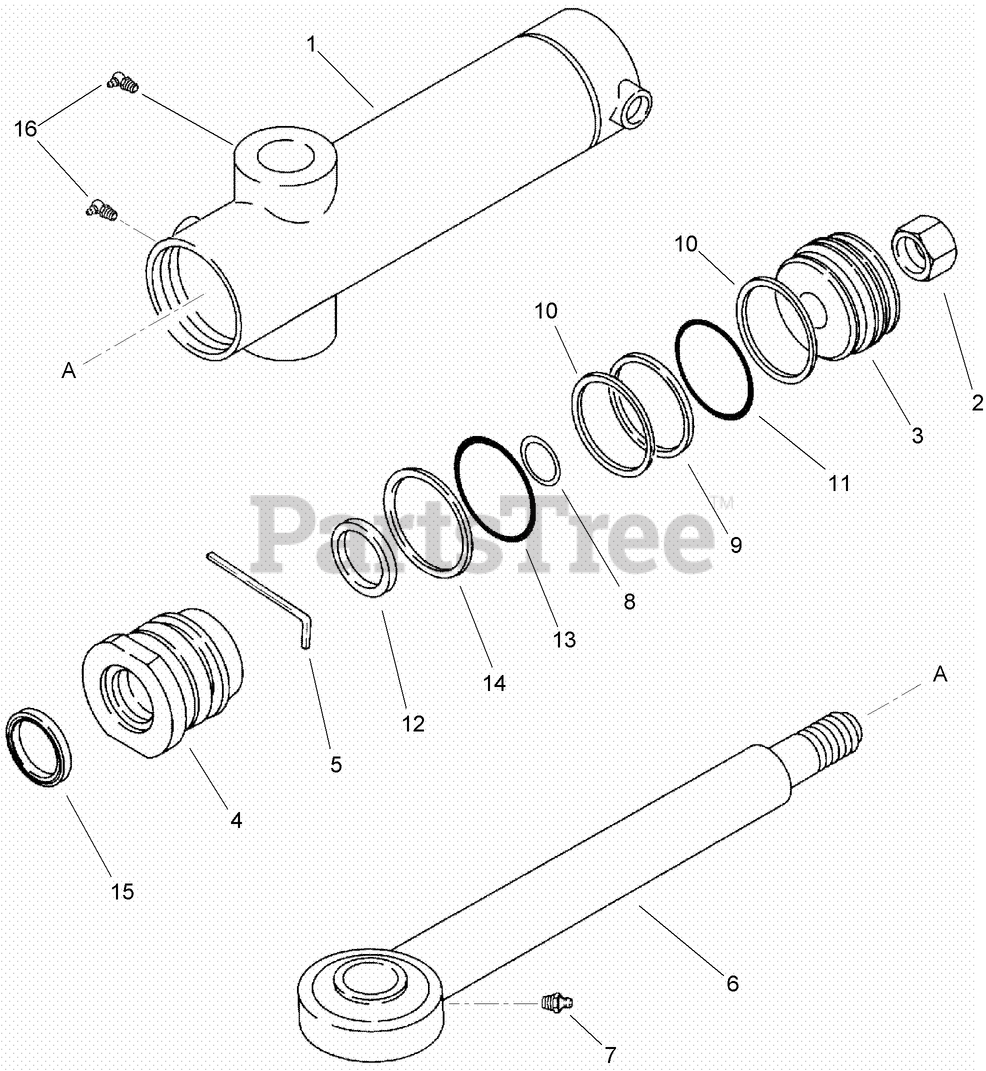

Plow Swing Cyclinder Assembly P75 Plow Parts Diagram

  • Title

Toro AU230679A1

CYLINDER-HYDRAULIC

Note: Not illustrated

$1620.99

$

Usually ships in 3-6 days

0

Toro AU230679A1

CYLINDER-HYDRAULIC

Note: Not illustrated

$1620.99

$

Usually ships in 3-6 days

0

1

Toro AU244121A1

TUBE - Cylinder

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU231-41310

NUT - Hex, Self-Locking, 5/8 inch NC

Note: Not illustrated

$

$

Currently unavailable

3

Toro AU110501A1

PISTON - Cylinder

Note: Not illustrated

$

$

Currently unavailable

4

Toro AU108641C1

GLAND - Cylinder

Note: Not illustrated

$

$

Currently unavailable

5

Toro AU461180R1

RING - Retaining

Note: Not illustrated

$

$

Currently unavailable

6

Toro AU140227A1

ROD-W

Note: Not illustrated

$1135.99

$

Usually ships in 3-6 days

0

7

Toro AU219-20

FITTING-LUBE 1/4-28 UNF X .52

Note: Not illustrated

$2.99

$

Usually ships in 3-6 days

0

Toro AU110510A1

KIT-SEAL

Note: Not illustrated

$

$

Not available

Toro AU110510A1

KIT-SEAL

Note: Not illustrated

$

$

Not available

8

SEAL - Rod, Small

Note: Not serviced separately

$

$

Not available

8

SEAL - Rod, Small

Note: Not illustrated

$

$

Not available

9

SEAL - Piston

Note: Not illustrated

$

$

Not available

9

SEAL - Piston

Note: Not serviced separately

$

$

Not available

10

RING - Wear, Piston

Note: Not serviced separately

$

$

Not available

10

RING - Wear, Piston

Note: Not illustrated

$

$

Not available

11

O-RING - Piston Seal

Note: Not illustrated

$

$

Not available

11

O-RING - Piston Seal

Note: Not serviced separately

$

$

Not available

12

SEAL - U-Cup, Gland

Note: Not serviced separately

$

$

Not available

12

SEAL - U-Cup, Gland

Note: Not illustrated

$

$

Not available

13

Toro AU238-6326

O-RING - 1-5/8 ID x 3/16 inch Wide, Gland

Note: Not illustrated

$

$

Currently unavailable

14

Toro AU381293R1

RING - Backup, Gland O-Ring

Note: Not illustrated

$

$

Currently unavailable

15

Toro AU532773R1

WIPER - Piston Rod

Note: Not illustrated

$

$

Currently unavailable

16

Toro AU219-57

FITTING-LUBE 1/4 SAE-LT 90 DE

Note: Not illustrated

$1.99

$

Usually ships in 3-6 days

0
