MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Quick Attach Assembly Parts Diagram

Maxi Sneaker Series E Trencher

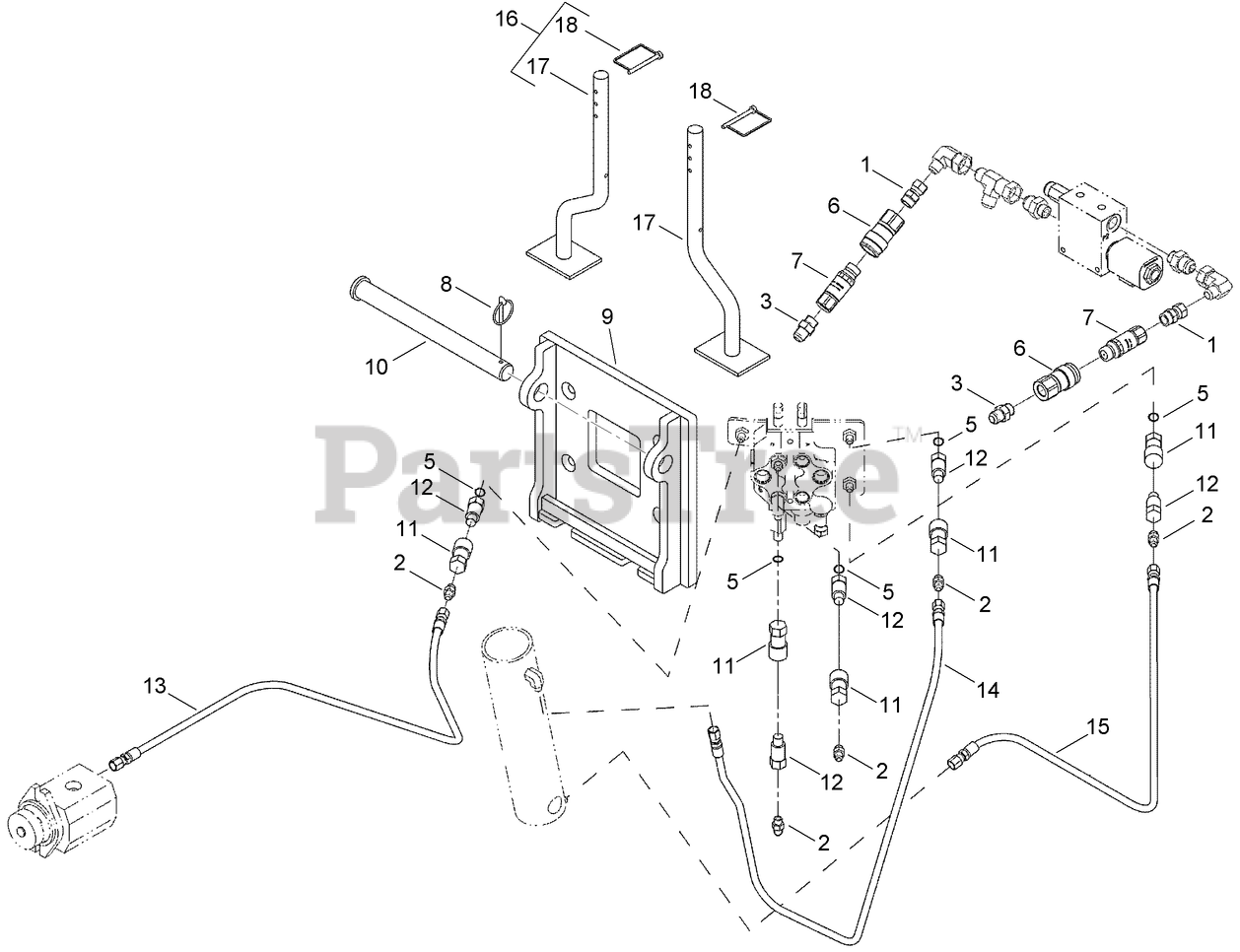

Quick Attach Assembly Parts Diagram

  • Title

Toro AU107910

ASSEMBLY - Quick Attach

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU91-2266-10-10S

ADAPTER - 5/8, SAE O-RING

$

$

Currently unavailable

2

Toro AU218-5057

FITTING-STRAIGHT

$4.49

$

Usually ships in 3-6 days

0

3

Toro AU218-5062

CONNECTOR-SHORT

$9.49

$

Usually ships in 3-6 days

0

5

Toro AU371544R1

RING

$

$

Not available

6

Toro AU393396A1

COUPLER - 1/2 Female Quick Disconnect

$

$

Currently unavailable

7

Toro AU436994A1

COUPLER-1/2 MALE QUICK DISCON

$129.99

$

Usually ships in 3-6 days

0

8

Toro AUA30338

See Supercession: 107-3039
(Superseded to 107-3039)

$11.99

$

In Stock, only 2 left!

0

9

Toro AU107911

LOCKING WELDMENT - Quick Attach

$

$

Currently unavailable

10

Toro AU107920

PIN - Locking

$

$

Currently unavailable

11

Toro AU107932

COUPLER-QUICK DISCONNECT - F

$159.99

$

Usually ships in 3-6 days

0

12

Toro AU107933

COUPLER-QUICK DISCONNECT - M

$160.99

$

Usually ships in 3-6 days

0

13

Toro AU109287

HOSE ASM, 46.5" OL, -6/-4/-6

$

$

Not available

14

Toro AU109288

HOSE ASM, 54" OL, -6/-4/-6

$95.99

$

Usually ships in 3-6 days

0

15

Toro AU109288

HOSE ASM, 54" OL, -6/-4/-6

$95.99

$

Usually ships in 3-6 days

0

16

Toro AU111706

ASSEMBLY - Plow Stand

$

$

Currently unavailable

17

Toro AU107996

WELDMENT - Leg, Plow Stand

$

$

Currently unavailable

18

Toro AU101718

PIN-SNAPPER

$

$

Not available
