MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Rock Saw Assembly (18 Inch Depth) Parts Diagram

Maxi Sneaker Series E Trencher

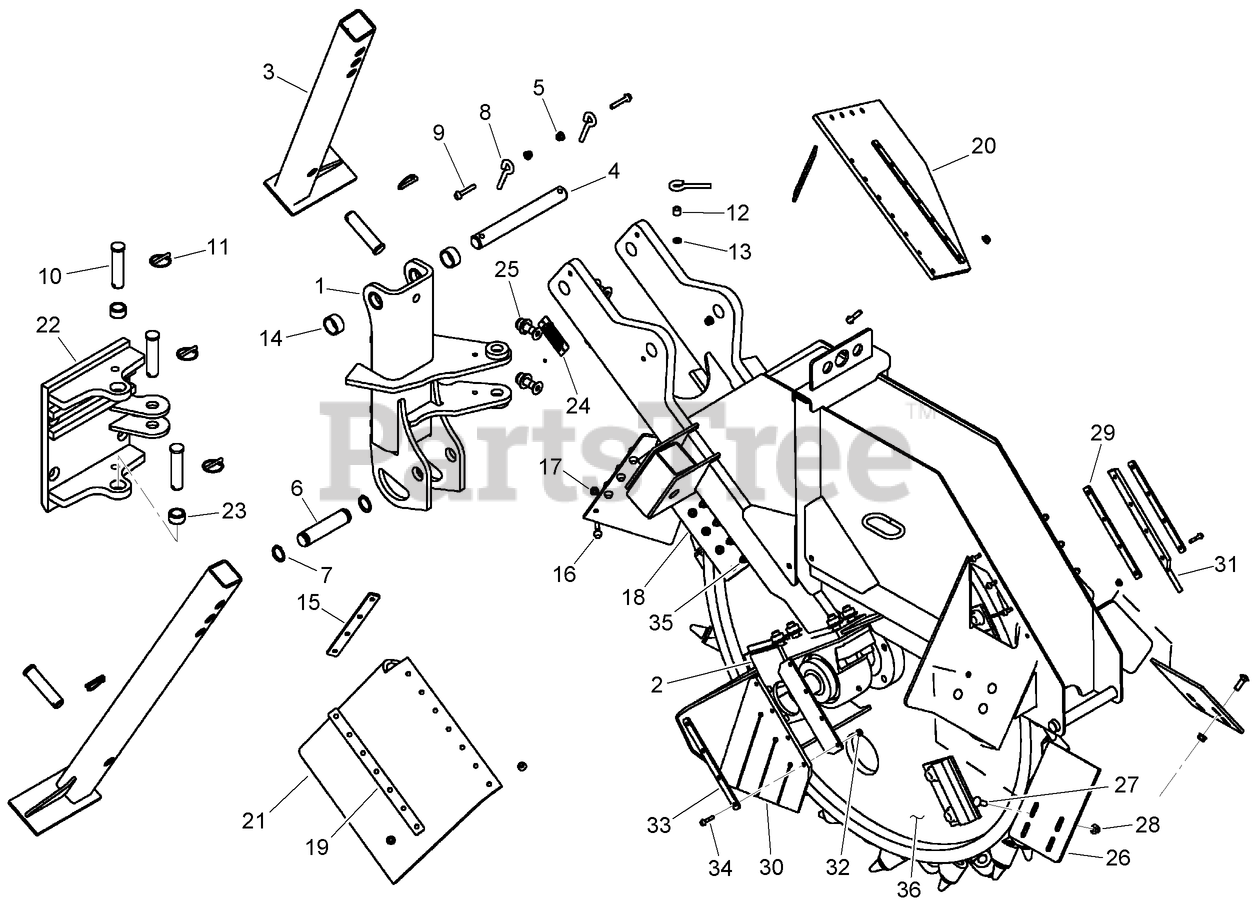

Rock Saw Assembly (18 Inch Depth) Parts Diagram

  • Title

Toro AU107987

ROCK SAW - 18 inch Depth

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU108034

PIVOT - Plow

$

$

Currently unavailable

2

Toro AU113444

PLATE - Motor Cover

$

$

Currently unavailable

3

Toro AU108109

LEG - Support Stand

$

$

Currently unavailable

4

Toro AU107970

PIN - Cylinder

$

$

Currently unavailable

5

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

6

Toro AUH434557

PIN-CLEVIS

$148.99

$

Usually ships in 3-6 days

0

7

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$5.49

$

Usually ships in 3-6 days

0

8

Toro AUH313981

PIN-RETAINER

$77.99

$

Usually ships in 3-6 days

0

9

Toro AU100321

SCREW-METRIC FLNG M8 X 50

$

$

Not available

10

Toro AU113192A1

PIN-PIVOT

$179.99

$

Usually ships in 3-6 days

0

11

Toro AUA30338

See Supercession: 107-3039
(Superseded to 107-3039)

$11.99

$

In Stock, only 2 left!

0

12

Toro AUH53959

SPACER

$

$

Not available

13

Toro AU496-11034

See Supercession: 94-6936
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

14

Toro AU108162

SPACER - Pin

$

$

Currently unavailable

15

Toro AU108941

PLATE-FRONT SKIRT

$

$

Not available

16

Toro AU100398

SCREW-FLANGE

$2.99

$

Usually ships in 3-6 days

0

17

Toro AU100443

NUT-HEX FLNGE M8-1.25 10.9 ZN

$0.99

$

Usually ships in 3-6 days

0

18

Toro AU110333

BRACKET - Side Skirt

$

$

Currently unavailable

19

Toro AU108940

PLATE-SKIRT SIDE

$

$

Not available

20

Toro AU108981

SKIRT - Front, LH

$

$

Currently unavailable

21

Toro AU108981

SKIRT - Front, LH

$

$

Currently unavailable

22

Toro AU107916

SLIDE-QUICK ATTACH

$

$

Not available

23

Toro AUD34818

BUSHING-UPPER

$147.99

$

Usually ships in 3-6 days

0

24

Toro AU100572

PLATE - Serial Number

$

$

Currently unavailable

25

Toro AU104193

TACK-FASTENER, STEEL

$2.99

$

Usually ships in 3-6 days

0

26

Toro AU109322

PLATE - Discharge Slide

$

$

Currently unavailable

27

Toro AU433-620

BOLT - Round Hd .375 x 1.25 GR5 ZND

$

$

Not available

28

Toro AU231-5146

See Supercession: 3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

29

Toro AU109388

PLATE-DISCHARGE ANGLE

$

$

Not available

30

Toro AU108970

FLAP - Side Discharge

$

$

Currently unavailable

31

Toro AU108970

FLAP - Side Discharge

$

$

Currently unavailable

32

Toro AU100442

NUT-HEX FLNGE M6-1.0 10.9 ZND

$

$

Not available

33

Toro AU108966

PLATE-DISCHARGE SKIRT

$

$

Not available

34

Toro AU100871

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

35

Toro AU100873

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

36

Toro AU118287

ASSEMBLY - Rocksaw Axle

$

$

Currently unavailable
