MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Selector Valve and Attachment Lift Hydraulic Circuits Parts Diagram

Maxi Sneaker Series E Trencher

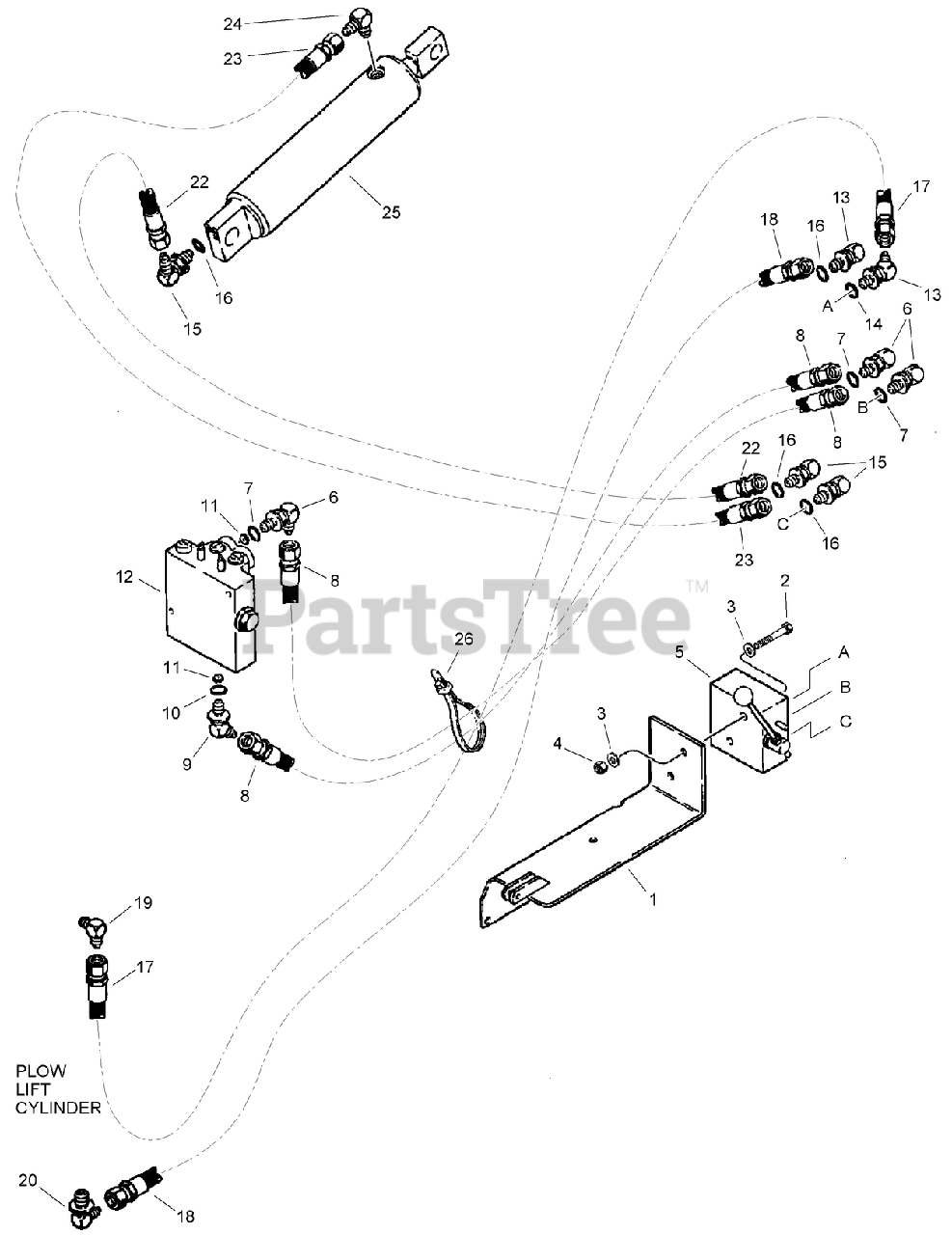

Selector Valve and Attachment Lift Hydraulic Circuits Parts Diagram

  • Title

Toro AU191322A1

TRENCHER ATTACHMENT - Quad REF

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU179579A1

BRACKET - Switch and Valve Mounting

$

$

Not available

2

Toro AU426-652

BOLT

$2.99

$

Usually ships in 3-6 days

0

3

Toro AU495-11041

WASHER-FLAT, 3/8 ZND

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5

Toro AUH672689

See Supercession: 127-6557
(Superseded to 127-6557)

$1376.99

$

Usually ships in 3-6 days

0

6

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$4.99

$

Usually ships in 3-6 days

0

7

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

8

Toro AUH169151

HOSE

$

$

Not available

9

Toro AU218-5135

ELBOW-45

$

$

Not available

10

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

11

Toro AUH757815

ORIFICE

$26.99

$

Usually ships in 3-6 days

0

12

Toro AU407213A1

HYD STEERING VALVE ASM

$2726.99

$

Usually ships in 3-6 days

0

13

Toro AU218-5552

ELBOW-90 ADJ LONG 3/8

$24.99

$

Usually ships in 3-6 days

0

14

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

15

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$4.99

$

Usually ships in 3-6 days

0

16

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

17

Toro AUH165282

HOSE

$64.99

$

Usually ships in 3-6 days

0

18

Toro AUH171264

HOSE

$

$

Not available

19

Toro AU218-1053

ELBOW-90 9/16 37FL-NPTF 3/8

$12.99

$

Usually ships in 3-6 days

0

20

Toro AU218-5128

See Supercession: 353-537
(Superseded to 353-537)

$15.99

$

Usually ships in 3-6 days

0

21

Toro AU237-6008

See Supercession: AU128825
(Superseded to AU128825)

Note: Not illustrated

$

$

Not available

22

Toro AUH433466

HOSE-1/4X2050

$

$

Not available

23

Toro AUH433468

HOSE-1/4X2250

$

$

Not available

24

Toro AU218-1053

ELBOW-90 9/16 37FL-NPTF 3/8

$12.99

$

Usually ships in 3-6 days

0

25

Toro AUH504076

HYD CYLINDER ASM

$2308.99

$

Usually ships in 3-6 days

0

26

Toro AUL18337

See Supercession: AUL18331
(Superseded to AUL18331)

$2.99

$

Usually ships in 3-6 days

0
