Maxi Sneaker Series E Trencher

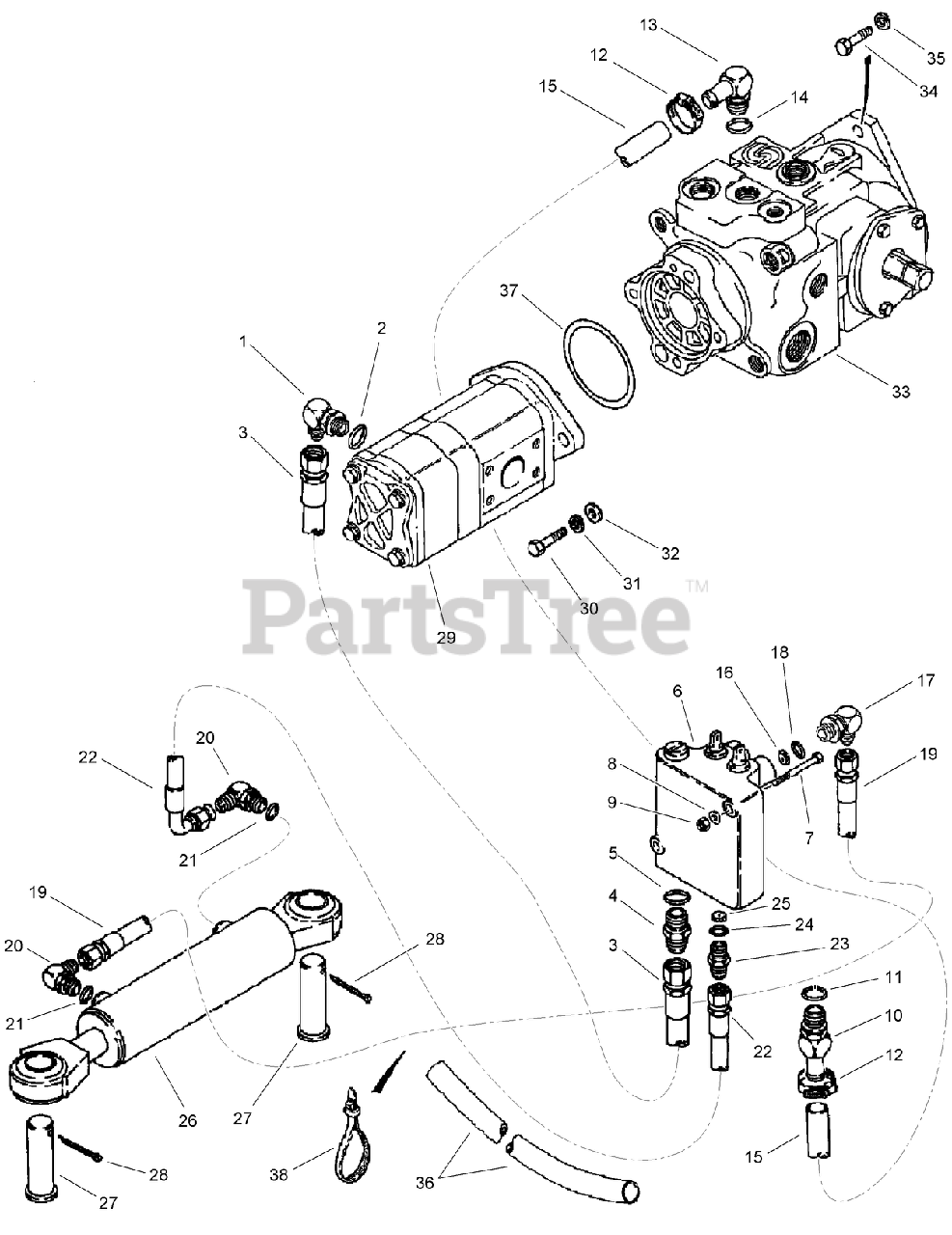

Steering Hydraulic Circuit Parts Diagram

  • Title

1

Toro AU218-5121

ELBOW-1/2 TO 5/8 90 DEG.

$21.99

$

Usually ships in 3-6 days

0

2

Toro AU237-6010

O-RING
(Superseded to 237-80)

$7.49

$

In Stock, Qty 7

0

3

Toro AUH174672

HOSE - 610 mm (24 inch) Long, Pump to Steering Control Valve

$

$

Not available

4

Toro AU218-5059

CONNECTOR-SHORT 37FL 1/2 TUBE

$5.99

$

Usually ships in 3-6 days

0

5

Toro AU237-6008

See Supercession: AU128825
(Superseded to AU128825)

$

$

Not available

6

Toro AU407213A1

HYD STEERING VALVE ASM

$2726.99

$

Usually ships in 3-6 days

0

7

Toro AU426-432

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

8

Toro AUH426767

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU232-4114

NUT-PREV TRQ

$

$

Not available

10

Toro AU217-396

STEM-STR BEAD HOSE 3/4ID X 3/

$98.99

$

Usually ships in 3-6 days

0

11

Toro AU237-6008

See Supercession: AU128825
(Superseded to AU128825)

$

$

Not available

12

Toro AU214-1412

CLAMP-HOSE TYPE F #12

$1.49

$

Usually ships in 3-6 days

0

13

Toro AU217-351

STEM-90 BEAD HOSE 3/4ID X1-1/

$64.99

$

Usually ships in 3-6 days

0

14

Toro AU237-6012

O-RING, 3/4 OD TUBE CLASS 6

$

$

Not available

15

Toro AUH434280

HOSE-CUT MAXI

$103.99

$

Usually ships in 3-6 days

0

16

Toro AUH746875

PLATE-ORIFICE

$27.99

$

Usually ships in 3-6 days

0

17

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$4.99

$

Usually ships in 3-6 days

0

18

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

19

Toro AUH172965

HOSE ASM, -4/-4/-4, 37" OAL

$110.99

$

Usually ships in 3-6 days

0

20

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$4.99

$

Usually ships in 3-6 days

0

21

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

22

Toro AUH249029

HOSE-6/-4/-6 736MM OAL

$

$

Not available

23

Toro AU218-5057

FITTING-STRAIGHT

$4.49

$

Usually ships in 3-6 days

0

24

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

25

Toro AUH206235

DISCONTINUED
(Superseded to AUH433173)

$40.99

$

Usually ships in 3-6 days

0

26

Toro AU86992252

See Supercession: AU125471
(Superseded to AU125471)

$1953.99

$

Usually ships in 3-6 days

0

27

Toro AUH67272

PIN-CLEVIS

$87.99

$

Usually ships in 3-6 days

0

28

Toro AU432-1628

PIN-COTTER

$3.99

$

Usually ships in 3-6 days

0

29

Toro AU188947A1

HYD PUMP ASM
(Superseded to 137-4680)

$2296.99

$

Usually ships in 3-6 days

0

30

Toro AU426-620

See Supercession: 323-44
(Superseded to 323-44)

$5.99

$

Usually ships in 3-6 days

0

31

Toro AU492-11038

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, only 4 left!

0

32

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

33

Toro AU239918A1

HYD VARIABLE PUMP ASM

$3980.99

$

Usually ships in 3-6 days

0

34

Toro AU426-820

BOLT-1/2-13 X 1-1/4 GR 8 ZND

$1.49

$

Usually ships in 3-6 days

0

35

Toro AU492-11050

See Supercession: 3253-7
(Superseded to 325-37)

$7.49

$

Usually ships in 3-6 days

0

36

Toro AUD131789

SLEEVE-HOSE PROTECTOR

$

$

Not available

37

Toro AU238-5152

O-RING

$1.99

$

Usually ships in 3-6 days

0

38

Toro AUL18337

See Supercession: AUL18331
(Superseded to AUL18331)

$2.99

$

Usually ships in 3-6 days

0
