MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Trencher Control Valve Mounting and Drive Circuit Parts Diagram

Maxi Sneaker Series E Trencher

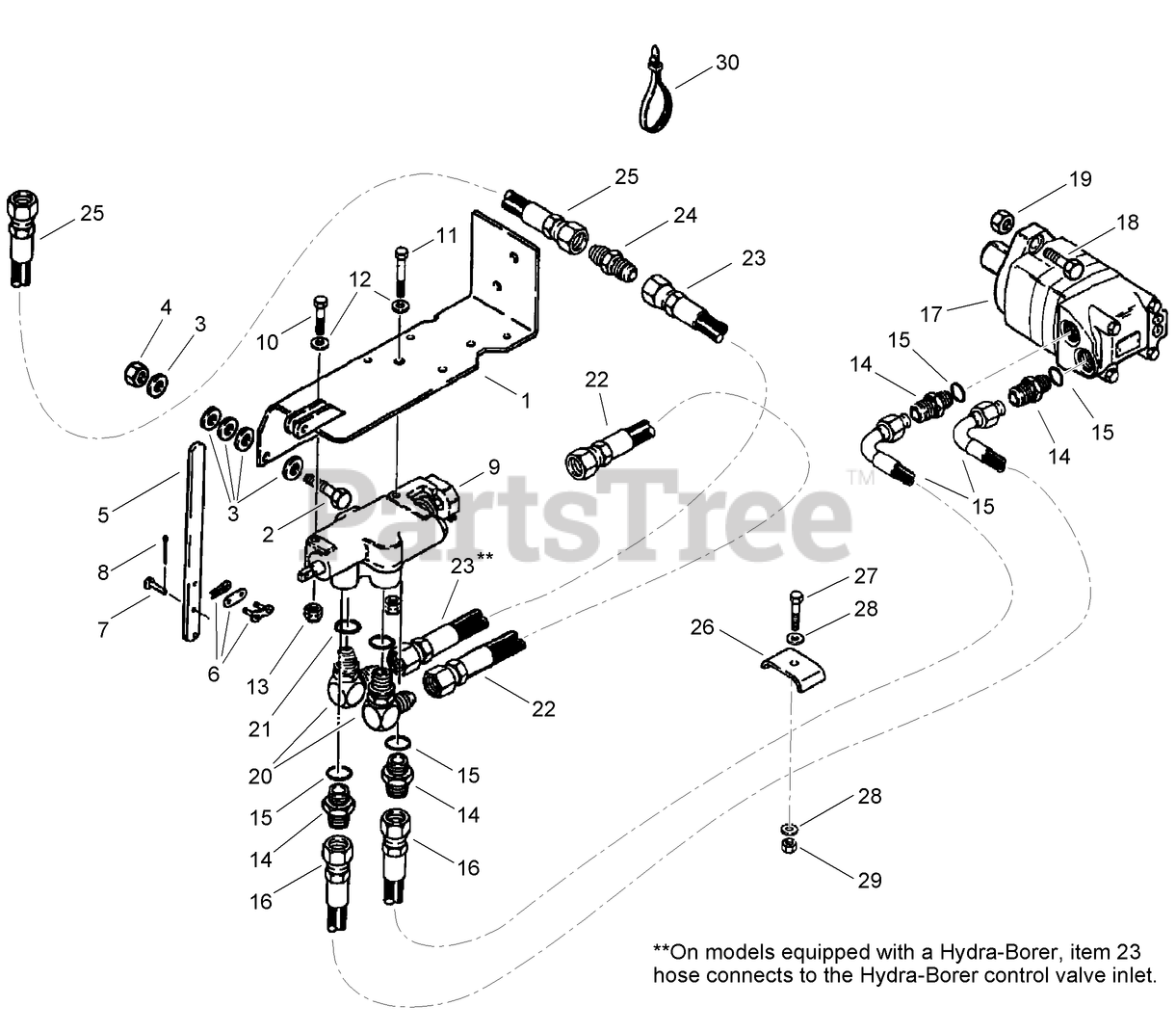

Trencher Control Valve Mounting and Drive Circuit Parts Diagram

  • Title

1

Toro AU179579A1

BRACKET - Switch and Valve Mounting

$

$

Not available

2

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

3

Toro AU495-11041

WASHER-FLAT, 3/8 ZND

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU179581A1

LEVER-VALVE

$

$

Currently unavailable

6

Toro AU241-1315

LINK-#50, CONNECT (SINGLE PITCH)
(Superseded to 116-6897)

$8.99

$

In Stock, Qty 5

0

7

Toro AUH35279

PIN-CLEVIS

$48.99

$

Usually ships in 3-6 days

0

8

Toro AU432-48

See Supercession: 3272-1
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 10

0

9

Toro AUH544718

HYD VALVE ASM

$3701.99

$

Usually ships in 3-6 days

0

10

Toro AU426-536

See Supercession: 322-11
(Superseded to 322-11)

$1.99

$

In Stock, Qty 18

0

11

Toro AU426-540

BOLT

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU495-11034

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU232-4115

NUT-HEX

$

$

Not available

14

Toro AU218-5062

CONNECTOR-SHORT

$9.49

$

Usually ships in 3-6 days

0

15

Toro AU237-6010

O-RING
(Superseded to 237-80)

$7.49

$

In Stock, Qty 7

0

16

Toro AUH432609

HOSE-1/2X2100MM

$187.99

$

Usually ships in 3-6 days

0

17

Toro AU188974A1

HYD MOTOR ASM

$2124.99

$

Usually ships in 3-6 days

0

18

Toro AU426-824

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

19

Toro AU230-4218

NUT-HEX

$3.49

$

Usually ships in 3-6 days

0

20

Toro AU218-5107

ELBOW-90 ADJ 5/8 TUBE

$10.99

$

Usually ships in 3-6 days

0

21

Toro AU237-6010

O-RING
(Superseded to 237-80)

$7.49

$

In Stock, Qty 7

0

22

Toro AUL78468

DISCONTINUED

$

$

Not available

23

Toro AUH432542

HOSE-5/8X400

$92.99

$

Usually ships in 3-6 days

0

24

Toro AU218-736

FITTING-UNION

$8.49

$

Usually ships in 3-6 days

0

25

Toro AUH431809

HOSE-5/8X1600

$245.99

$

Usually ships in 3-6 days

0

26

Toro AUH46888

CLAMP

$36.99

$

Usually ships in 3-6 days

0

27

Toro AU426-528

BOLT-5/16-18 X 1-3/4 GR 8 ZND

$0.99

$

Usually ships in 3-6 days

0

28

Toro AU495-11034

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

29

Toro AU232-4115

NUT-HEX

$

$

Not available

30

Toro AUL18337

See Supercession: AUL18331
(Superseded to AUL18331)

$2.99

$

Usually ships in 3-6 days

0
