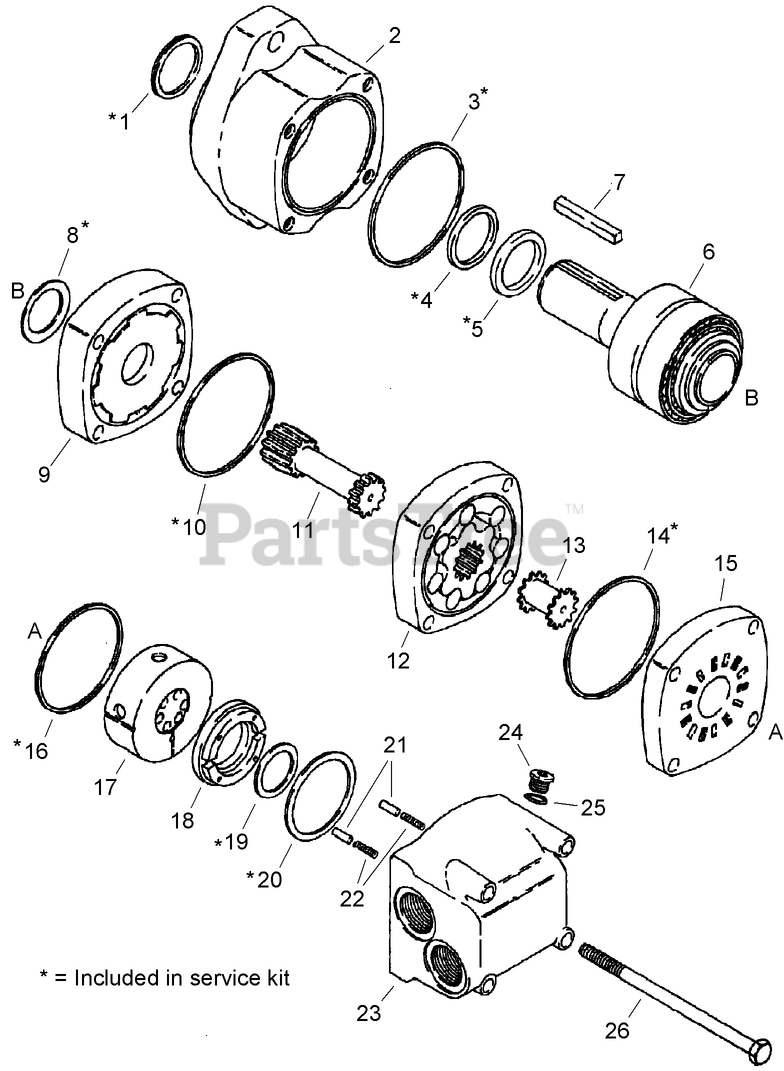

Maxi Sneaker Series E Trencher

Trencher Drive Motor Assembly Parts Diagram

  • Title

Toro AU188974A1

HYD MOTOR ASM

Note: Not illustrated

$2124.99

$

Usually ships in 3-6 days

0

1

SEAL - Dust

Note: Not serviced separately

$

$

Not available

2

HOUSING - Bearing

Note: Not serviced separately

$

$

Not available

3

SEAL - 3 inch (76 mm) ID, Bearing Housing

Note: Not serviced separately

$

$

Not available

4

RING - Backup, Shaft Seal

Note: Not serviced separately

$

$

Not available

5

SEAL-Shaft

Note: Not serviced separately

$

$

Not available

6

Toro AUN9531

See Supercession: AU189091A1

$

$

Not available

7

Toro AU189090A1

KIT-SHAFT

$1002.99

$

Usually ships in 3-6 days

0

8

Toro AUS114491

SEAL - Shaft, to Wear Plate

$

$

Currently unavailable

9

Toro AU189092A1

PLATE - Wear, Motor

$

$

Currently unavailable

10

SEAL - 3 inch (76 mm) ID, Wear Plate

Note: Not serviced separately

$

$

Not available

11

Toro AU189093A1

SHAFT - Motor Drive

$

$

Not available

12

Toro AU189095A1

GEROTOR ASSEMBLY - Motor

$

$

Currently unavailable

13

Toro AUS114496

VALVE-DRIVE

$102.99

$

Usually ships in 3-6 days

0

14

SEAL - 3 inch (76 mm) ID, Valve Plate

Note: Not serviced separately

$

$

Not available

15

Toro AU189096A1

PLATE - Valve

$

$

Currently unavailable

16

SEAL - 3 inch (76 mm) ID, Housing

Note: Not serviced separately

$

$

Not available

17

Toro AUS300407

VALVE - Motor

$

$

Currently unavailable

18

Toro AUN9532

PLATE - Balance

$

$

Not available

19

SEAL - Balance Plate, Inner

Note: Not serviced separately

$

$

Not available

20

SEAL - Balance Plate, Outer

Note: Not serviced separately

$

$

Not available

21

Toro AUS114372

PIN - Valve Housing

$

$

Currently unavailable

22

Toro AUS114366

SPRING - Pin

$

$

Currently unavailable

23

HOUSING - Motor, Port End (order 188974A1 motor assembly)

Note: Not serviced separately

$

$

Not available

24

Toro AU218-5207

See Supercession: AU278548

$

$

Not available

25

Toro AU237-6004

O-RING

$1.49

$

Usually ships in 3-6 days

0

26

Toro AU189099A1

BOLT - Hex, Special

$

$

Currently unavailable

Toro AUS300417

KIT-SEAL (F/ MOTOR 188974A1)
(Superseded to 56-6890)

Note: Not illustrated

$158.99

$

Usually ships in 3-6 days

0
