MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Trencher Frame, Drive Line and Mounting Assembly Parts Diagram

Maxi Sneaker Series E Trencher

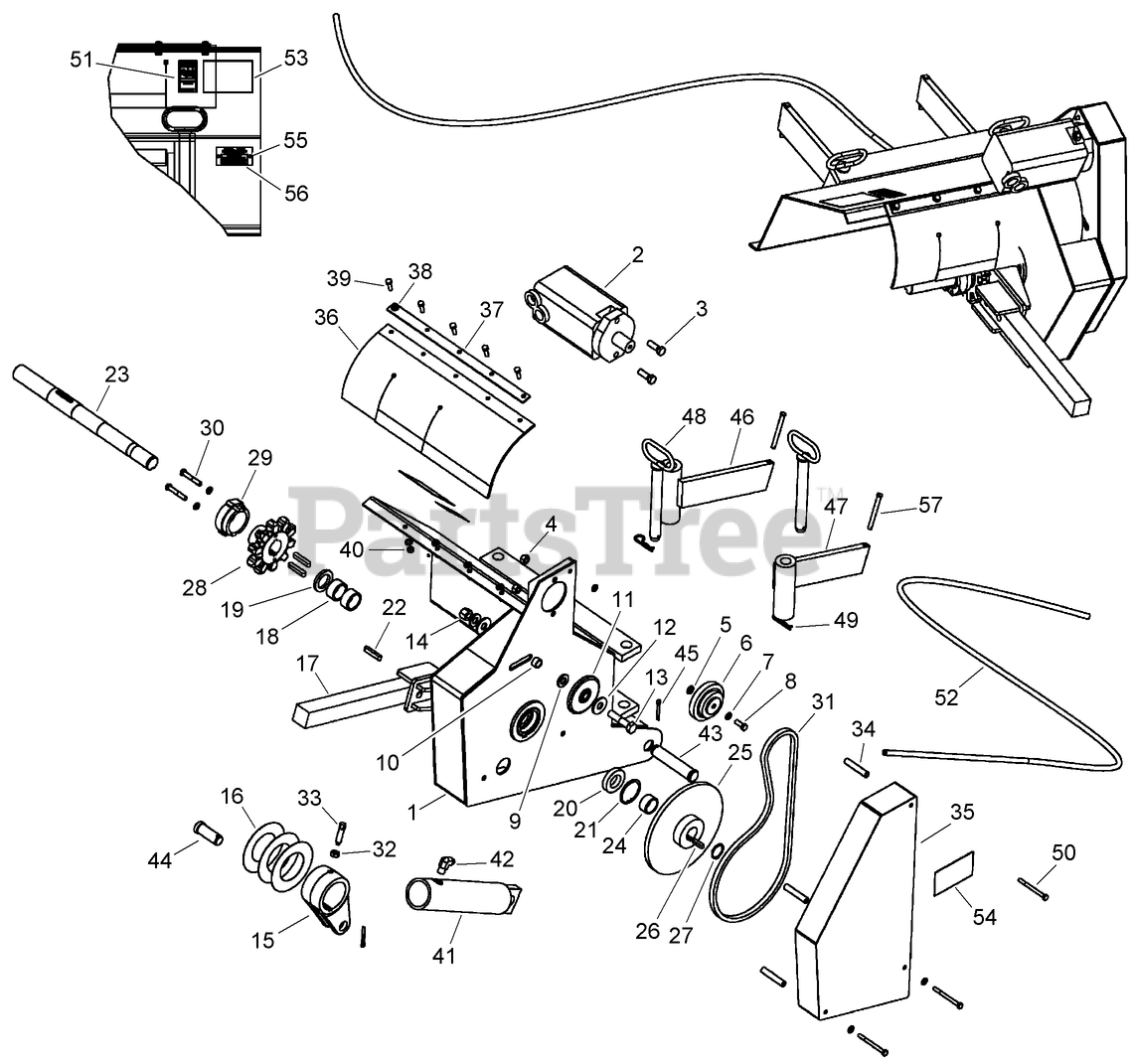

Trencher Frame, Drive Line and Mounting Assembly Parts Diagram

  • Title

Toro AU106833

TRENCHER GROUP

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUH660142

FRAME-TRENCHER

$

$

Not available

2

Toro AU188974A1

HYD MOTOR ASM

$2124.99

$

Usually ships in 3-6 days

0

3

Toro AU426-824

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

4

Toro AU230-4218

NUT-HEX

$3.49

$

Usually ships in 3-6 days

0

5

Toro AU495-11041

WASHER-FLAT, 3/8 ZND

$0.99

$

Usually ships in 3-6 days

0

6

Toro AUH660217

SPROCKET-DRIVE

$607.99

$

Usually ships in 3-6 days

0

7

Toro AU492-11038

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, only 4 left!

0

8

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

9

Toro AUH426809

WASHER-FLAT

$23.99

$

Usually ships in 3-6 days

0

10

Toro AUH114140

SPACER-SPROCKET, IDLER

$49.99

$

Usually ships in 3-6 days

0

11

Toro AU541857R92

IDLER BEARING AND SPROCKET ASM

$165.99

$

Usually ships in 3-6 days

0

12

Toro AU495-21069

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

13

Toro AU426-1044

BOLT-5/8-11 X 2-3/4 GR 8 ZND
(Superseded to 110-4614)

$5.99

$

Usually ships in 3-6 days

0

14

Toro AU230-42110

NUT-HEX, CENTER LOCK

$3.49

$

Usually ships in 3-6 days

0

15

Toro AUH413492

CRANK-BOOM CYLINDER

$

$

Not available

16

Toro AUH261834

SHIM

$38.99

$

Usually ships in 3-6 days

0

17

Toro AU106541

See Supercession: AU106541-03
(Superseded to AU106541-03)

$4296.99

$

Usually ships in 3-6 days

0

18

Toro AUF7356

BEARING-NEEDLE

$57.99

$

Usually ships in 3-6 days

0

19

Toro AUH758854

SEAL-OIL

$24.99

$

Usually ships in 3-6 days

0

20

Toro AU38742

BEARING

$120.99

$

Usually ships in 3-6 days

0

21

Toro AU100-21244

RING-#244 2.702 BASIC INT RET

$55.99

$

Usually ships in 3-6 days

0

22

Toro AUH413625

KEY

$122.99

$

Usually ships in 3-6 days

0

23

Toro AU106634

SHAFT-DRIVE, TRENCHER

$798.99

$

Usually ships in 3-6 days

0

24

Toro AUH415562

SPACER

$55.99

$

Usually ships in 3-6 days

0

25

Toro AUH415554

See Supercession: AUH415554-03
(Superseded to AUH415554-03)

$823.99

$

Usually ships in 3-6 days

0

26

Toro AUH415604

KEY-SQ

$15.99

$

Usually ships in 3-6 days

0

27

Toro AU100-11137

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

28

Toro AUH69773

SPROCKET

$282.99

$

Usually ships in 3-6 days

0

29

Toro AUH69930

HUB

$388.99

$

Usually ships in 3-6 days

0

30

Toro AU426-636

BOLT - Hex Hd .375 x 2.25 GR5 ZND

$

$

Not available

31

Toro AUH758862

CHAIN-68P

$154.99

$

Usually ships in 3-6 days

0

32

Toro AU425-158

NUT

$1.49

$

Usually ships in 3-6 days

0

33

Toro AUH33746

SCREW-SET, DOG POINT

$52.99

$

Usually ships in 3-6 days

0

34

Toro AUH413302

SPACER

$65.99

$

Usually ships in 3-6 days

0

35

Toro AUH660191

See Supercession: 127-1038
(Superseded to 127-1038)

$446.99

$

Usually ships in 3-6 days

0

36

Toro AUH426718

FLAP-DIRT

$275.99

$

Usually ships in 3-6 days

0

37

Toro AUH314237

STRIP-BACK

$34.99

$

Usually ships in 3-6 days

0

38

Toro AU495-11034

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

39

Toro AU426-516

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

40

Toro AU230-4215

NUT-5/16-18 P/T LOCK GRD A CA

$

$

Not available

41

Toro AUH504076

HYD CYLINDER ASM

$2308.99

$

Usually ships in 3-6 days

0

42

Toro AU218-1053

ELBOW-90 9/16 37FL-NPTF 3/8

$12.99

$

Usually ships in 3-6 days

0

43

Toro AUH257048

PIN

$146.99

$

Usually ships in 3-6 days

0

44

Toro AUH65011

PIN-CLEVIS

$167.99

$

Usually ships in 3-6 days

0

45

Toro AU432-1628

PIN-COTTER

$3.99

$

Usually ships in 3-6 days

0

46

Toro AUH660175

See Supercession: AUH660175-03
(Superseded to AUH660175-03)

$438.99

$

Usually ships in 3-6 days

0

47

Toro AUH660183

See Supercession: AUH660183-03
(Superseded to AUH660183-03)

$425.99

$

Usually ships in 3-6 days

0

48

Toro AUH660209

PIN-MOUNTING

$

$

Not available

49

Toro AUH32292

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

50

Toro AU426-556

BOLT

$1.49

$

Usually ships in 3-6 days

0

51

Toro AU103837

DECAL-UNDERGROUND HAZARDS

$2.99

$

Usually ships in 3-6 days

0

52

Toro AUH433468

HOSE-1/4X2250

$

$

Not available

53

Toro AUH438908

DECAL-WARNING - CHAIN

$18.99

$

Usually ships in 3-6 days

0

54

Toro AU321-3258

DECAL-WARNING

$

$

Not available

55

Toro AU104193

TACK-FASTENER, STEEL

$2.99

$

Usually ships in 3-6 days

0

56

Toro AU100572

PLATE - Serial Number

$

$

Currently unavailable

57

Toro AUH230243

PIN-CLEVIS

$43.99

$

Usually ships in 3-6 days

0
