MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Weight Kit Assembly Parts Diagram

Maxi Sneaker Series E Trencher

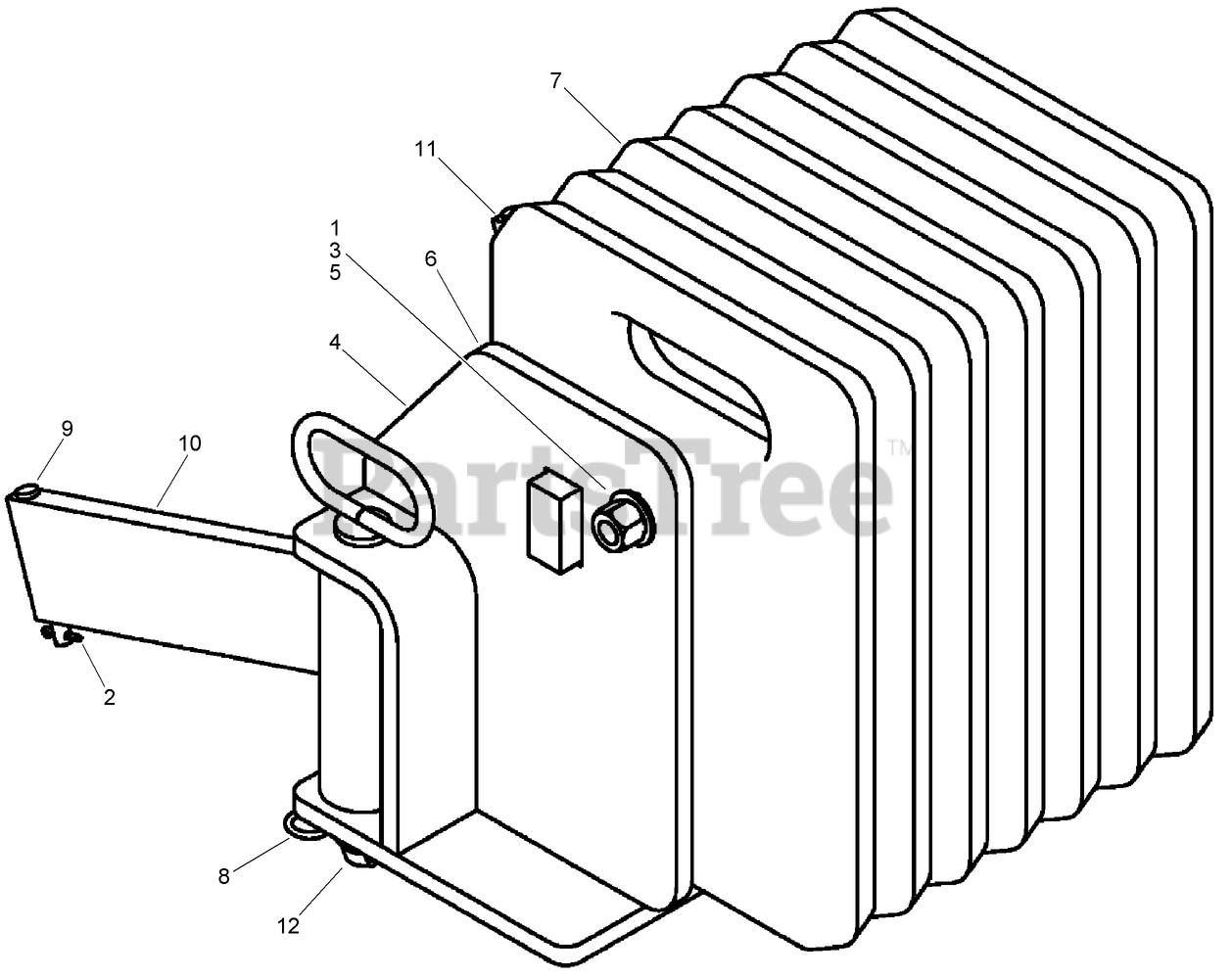

Weight Kit Assembly Parts Diagram

  • Title

Toro AU104328

COUNTERWEIGHT KIT

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU232-41110

NUT-LOCK, HEX

$1.99

$

Usually ships in 3-6 days

0

2

Toro AU432-812

PIN-COTTER, 1/8 X 3/4 ZINC P

$

$

Not available

3

Toro AU495-11066

WASHER-FLAT

$9.99

$

Usually ships in 3-6 days

0

4

Toro AU104329

FRAME-WEIGHT KIT

$

$

Not available

5

Toro AU104330

ROD-WEIGHT RETAINER

$1.49

$

Usually ships in 3-6 days

0

6

Toro AU104331

SPACER-7/8" OD

$30.99

$

Usually ships in 3-6 days

0

7

Toro AU109364A1

COUNTERWEIGHT-60LB

$414.99

$

Usually ships in 3-6 days

0

8

Toro AUH32292

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

9

Toro AUH230243

PIN-CLEVIS

$43.99

$

Usually ships in 3-6 days

0

10

Toro AUH660175

See Supercession: AUH660175-03
(Superseded to AUH660175-03)

$438.99

$

Usually ships in 3-6 days

0

11

Toro AUH660183

See Supercession: AUH660183-03
(Superseded to AUH660183-03)

$425.99

$

Usually ships in 3-6 days

0

12

Toro AUH660209

PIN-MOUNTING

$

$

Not available

13

Toro AU6-48400

INSTALLATION INSTRUCTIONS - Field

Note: Not illustrated

$

$

Currently unavailable
