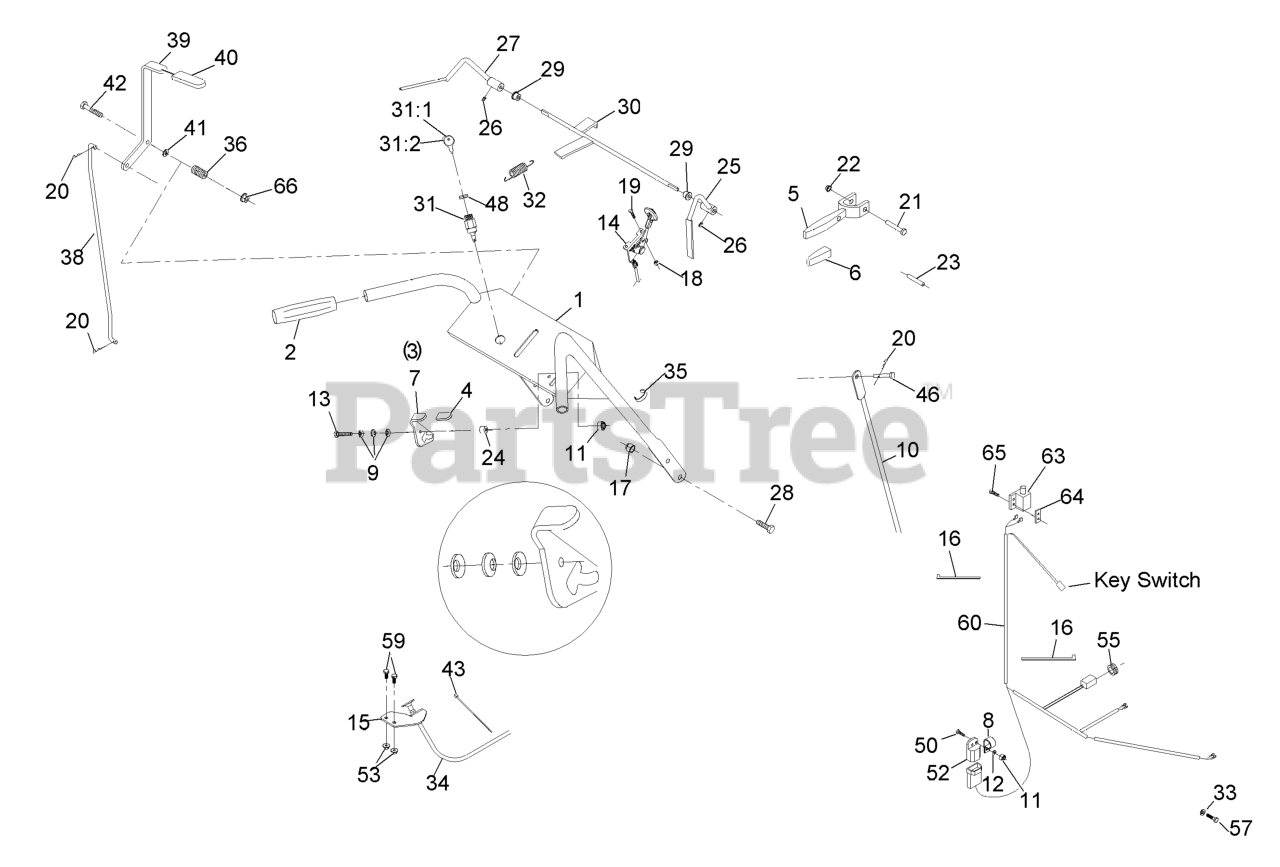

MG481KA322P - Exmark 32" Metro Walk-Behind Mower, Kawasaki FS481V (SN: 314000000 - 314999999) (2014) Pistol Grip Upper Handle And Controls Parts Diagram

32" Metro Walk-Behind Mower, Kawasaki FS481V

Pistol Grip Upper Handle And Controls Parts Diagram

  • Title

1

Exmark 109-4695

KIT,HANDLE W/DECALS METRO

$

$

Not available

2

Exmark 1-303097

104-9838
(Superseded to 104-9838)

$6.49

$

In Stock, Qty 20+

0

3

Exmark 1-324279

137-9508
(Superseded to 137-9508)

Note: Not illustrated

$30.99

$

In Stock, only 2 left!

0

4

Exmark 1-303019

GRIP-LATCH

$2.99

$

In Stock, only 2 left!

0

5

Exmark 1-302006

DRIVE LEVER ASM

$63.99

$

In Stock, Qty 7

0

6

Exmark 1-303021

GRIP-LEVER, DRIVE

$1.99

$

In Stock, Qty 20+

0

7

Exmark 1-324280

137-9507
(Superseded to 137-9507)

$30.99

$

In Stock, only 2 left!

0

8

Exmark 1-323229

CLIP-LOOM

$3.49

$

Usually ships in 3-6 days

0

9

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

10

Exmark 1-323359

LINKAGE-WHEEL, DRIVE

$25.99

$

In Stock, only 2 left!

0

11

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Exmark 321-18

SCREW-HH

$2.49

$

In Stock, Qty 17

0

14

Exmark 116-2426

CONTROL, THROTTLE

$53.99

$

In Stock, Qty 14

0

15

Exmark 103-1797-01

BRACKET-CABLE, CHOKE

$10.99

$

In Stock, only 1 left!

0

16

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

17

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

20

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

21

Exmark 1-808250

PIN-LEVER, DRIVE

$2.99

$

In Stock, Qty 20+

0

22

Exmark 1-803001

NUT-PUSH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-806340

PIN-ROLL
(Superseded to 1-806340)

$5.99

$

In Stock, Qty 8

0

24

Exmark 1-323549

SPACER

$14.99

$

Usually ships in 3-6 days

0

25

Exmark 1-412185-03

LEVER-RH

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$91.99

$

In Stock, only 3 left!

0

26

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

0

27

Exmark 1-412183-03

LEVER-LH

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$87.99

$

In Stock, only 4 left!

0

28

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

29

Exmark 1-303365

BUSHING-NYLON

$5.99

$

In Stock, Qty 20+

0

30

Exmark 1-322192-03

WLD,ROD OPC

$52.99

$

In Stock, only 4 left!

0

31

Exmark 1-403121

SWITCH & KEY (INCLUDES NU

$25.99

$

In Stock, only 2 left!

0

31:1

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.99

$

In Stock, Qty 16

0

31:2

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

32

Exmark 1-303363

SPRING-EXTENSION

$7.49

$

In Stock, Qty 15

0

33

Exmark 33094-00

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

34

Exmark 103-1796

CABLE-CHOKE

$55.99

$

In Stock, Qty 13

0

35

Exmark 1-303088

CLIP-CABLE

$2.99

$

Usually ships in 3-6 days

0

36

Exmark 1-303160

SPRING-COMPRESSION

$7.49

$

Usually ships in 3-6 days

0

38

Exmark 1-323298

LINKAGE-BLADE, UPPER

$102.99

$

Usually ships in 3-6 days

0

39

Exmark 116-6331

LEVER ASM

$62.99

$

Usually ships in 3-6 days

0

40

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, only 2 left!

0

41

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

42

Exmark 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

43

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

46

Exmark 1-808286

PIN-CLEVIS

$5.99

$

In Stock, Qty 20+

0

48

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.99

$

In Stock, Qty 10

0

50

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

52

Exmark 1-323430

MODULE-INTERLOCK

$153.99

$

In Stock, only 2 left!

0

53

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

55

Exmark 1-543296

GROMMET

$9.49

$

In Stock, only 2 left!

0

57

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

59

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

60

Exmark 116-2661

HARNESS-WIRE

$106.99

$

Usually ships in 3-6 days

0

63

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$21.99

$

In Stock, Qty 13

0

64

Exmark 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

65

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

66

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
