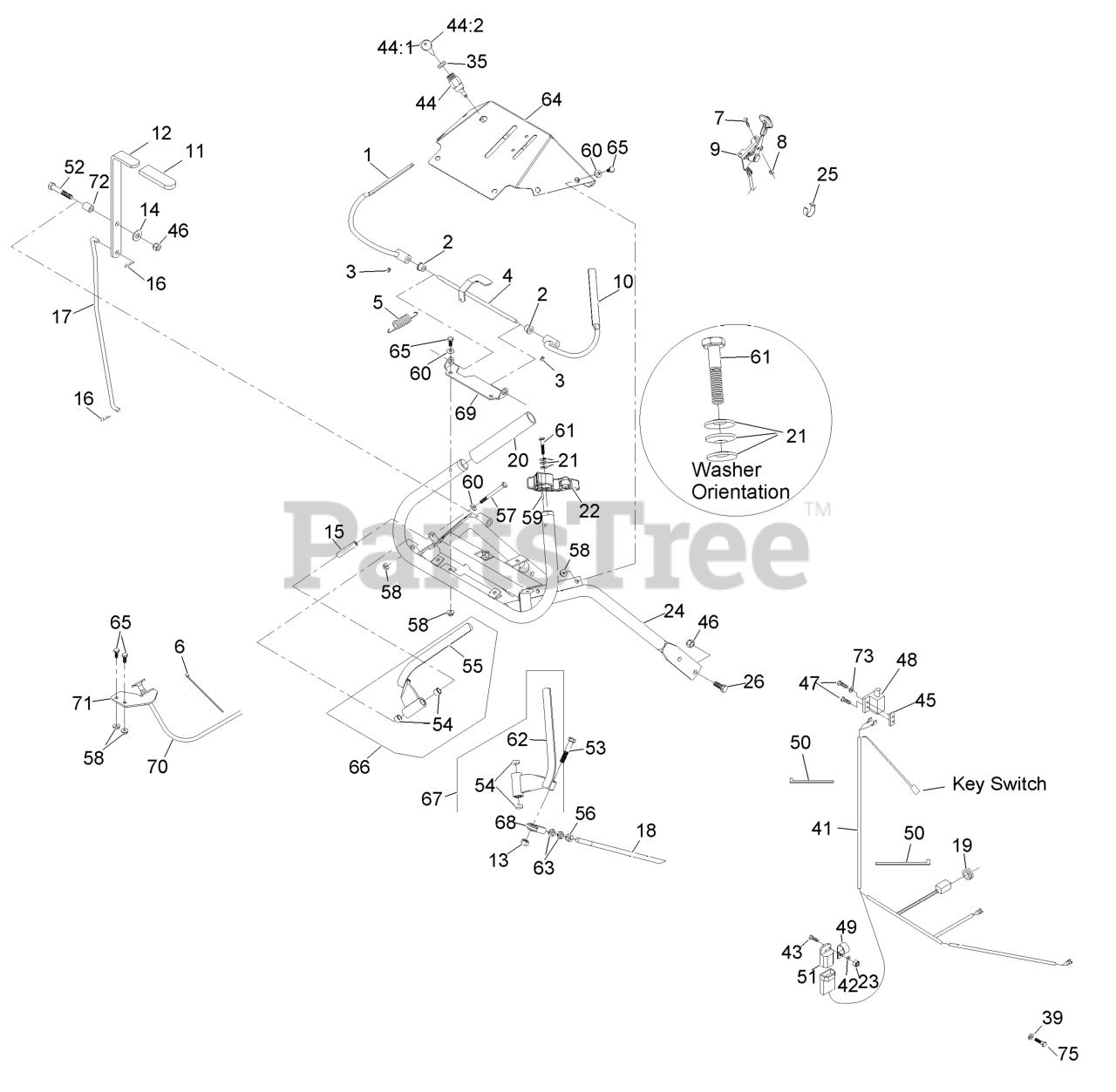

MG481KA362CA - Exmark 36" Metro Walk-Behind Mower, Kawasaki FS481V, CARB (SN: 314000000 - 314999999) (2014) ECS Upper Handle and Controls Parts Diagram

36" Metro Walk-Behind Mower, Kawasaki FS481V, CARB

ECS Upper Handle and Controls Parts Diagram

  • Title

1

Exmark 116-4079

WLD,LH OPC LEVER

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$42.99

$

In Stock, Qty 12

0

2

Exmark 1-303365

BUSHING-NYLON

$5.99

$

In Stock, Qty 20+

0

3

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

0

4

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$52.99

$

In Stock, Qty 20+

0

5

Exmark 1-303363

SPRING-EXTENSION

$7.49

$

In Stock, Qty 15

0

6

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

7

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

8

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Exmark 116-2426

CONTROL, THROTTLE

$53.99

$

In Stock, Qty 14

0

10

Exmark 116-4080

WLD,RH OPC LEVER

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$42.99

$

In Stock, Qty 10

0

11

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, only 2 left!

0

12

Exmark 103-1629

CLUTCH LEVER-W/GRIP

$25.99

$

Usually ships in 3-6 days

0

13

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

15

Exmark 103-0027

BUSHING-LEVER, DRIVE

$22.99

$

In Stock, Qty 20+

0

16

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

17

Exmark 103-1627

LINKAGE,UPPER BLADE (PLT)

$21.99

$

In Stock, only 2 left!

0

18

Exmark 103-1604

LINKAGE,DRIVE (PLT)

$28.99

$

In Stock, only 3 left!

0

19

Exmark 1-543296

GROMMET

$9.49

$

In Stock, only 2 left!

0

20

Exmark 103-0815

GRIP-BAR, HANDLE

$13.99

$

In Stock, only 2 left!

0

21

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

22

Exmark 103-1631

ASM,LH THUMB LATCH

Note: Not illustrated

$42.99

$

In Stock, only 2 left!

0

22

Exmark 103-1630

ASM,RH THUMB LATCH

$42.99

$

In Stock, only 1 left!

0

23

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Exmark 103-0770-03

WLD,UPPER ECS HANDLE

$751.99

$

Usually ships in 3-6 days

0

25

Exmark 1-303088

CLIP-CABLE

$2.99

$

Usually ships in 3-6 days

0

26

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

35

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.99

$

In Stock, Qty 10

0

39

Exmark 33094-00

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

41

Exmark 116-2661

HARNESS-WIRE

$106.99

$

Usually ships in 3-6 days

0

42

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

44

Exmark 1-403121

SWITCH & KEY (INCLUDES NU

$25.99

$

In Stock, only 2 left!

0

44:1

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.99

$

In Stock, Qty 16

0

44:2

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

45

Exmark 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

46

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

47

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

48

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$21.99

$

In Stock, Qty 13

0

49

Exmark 1-513762

CLIP-LOOM

$8.49

$

In Stock, only 1 left!

0

50

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

51

Exmark 1-323430

MODULE-INTERLOCK

$153.99

$

In Stock, only 2 left!

0

52

Exmark 3231-4

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

53

Exmark 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

54

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

0

55

Exmark 116-4081-03

Lever, Drive Lh

$

$

Currently unavailable

56

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 8

0

57

Exmark 321-14

SCREW-HH

$5.49

$

In Stock, Qty 7

0

58

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

59

Exmark 103-0464

126-2925
(Superseded to 126-2925)

$1.49

$

In Stock, Qty 10

0

60

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

61

Exmark 103-0235

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 5

0

62

Exmark 116-4082-03

Lever, Drive Rh

$

$

Currently unavailable

63

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

64

Exmark 109-4934

ASM, CONSOLE W/DECALS

$314.99

$

Usually ships in 3-6 days

0

65

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

66

Exmark 103-2513

DRIVE LEVER-ASM, RH

$156.99

$

Usually ships in 3-6 days

0

67

Exmark 103-2514

DRIVE LEVER-ASM, LH

$156.99

$

In Stock, only 4 left!

0

68

Exmark 103-2463

JOINT-BALL, END

$31.99

$

In Stock, only 2 left!

0

69

Exmark 103-0489-03

BRACKET,OPC AXLE

$28.99

$

In Stock, only 2 left!

0

70

Exmark 103-1796

CABLE-CHOKE

$55.99

$

In Stock, Qty 13

0

71

Exmark 103-1797-01

BRACKET-CABLE, CHOKE

$10.99

$

In Stock, only 1 left!

0

72

Exmark 1-633080

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

73

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

75

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 20+
