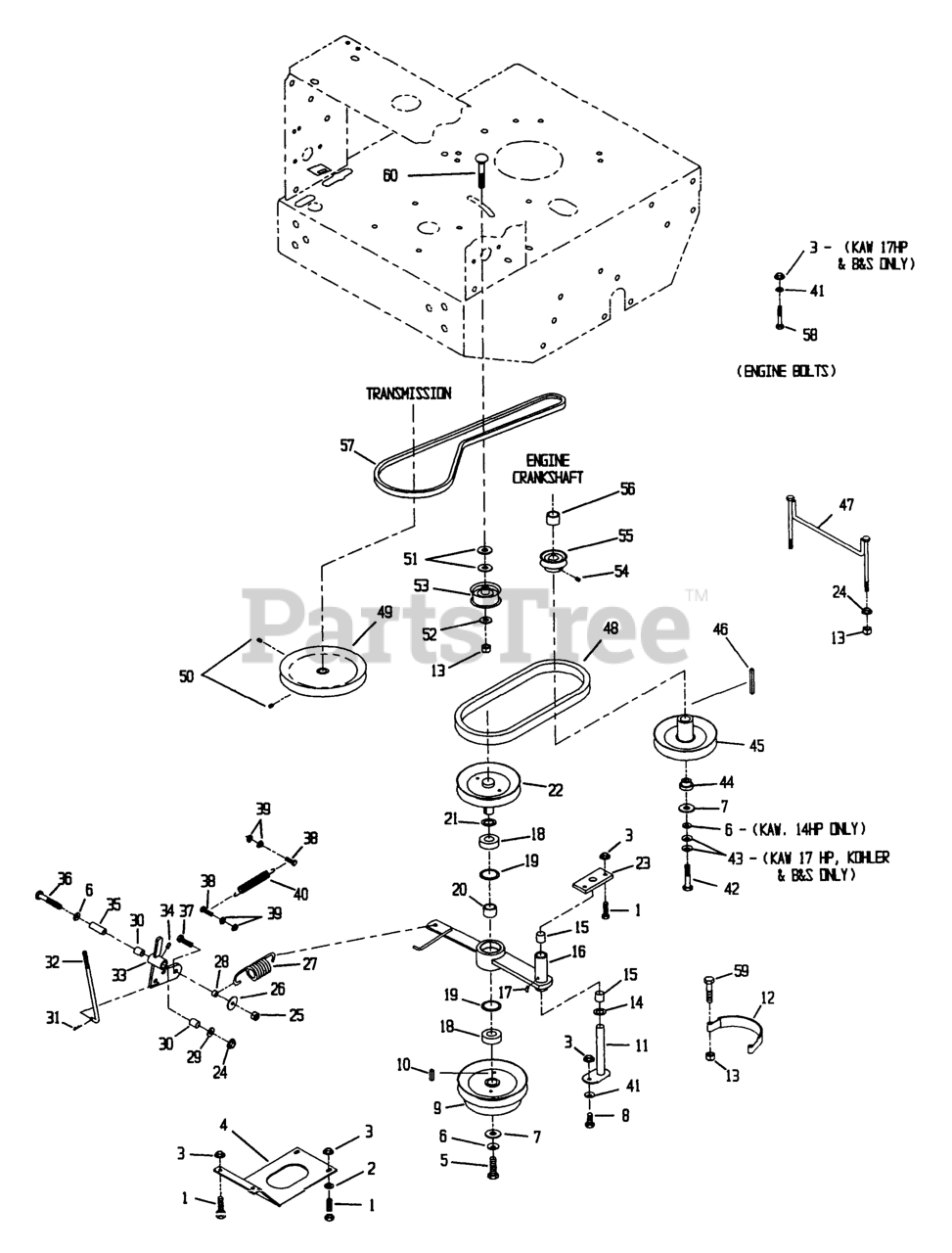

MHP4816B - Exmark 48" Metro HP Walk-Behind Mower, 16hp Briggs & Stratton (SN: 150000 - 189999) (1998) Engine Deck Group (Part 2) Parts Diagram

48" Metro HP Walk-Behind Mower, 16hp Briggs & Stratton

Engine Deck Group (Part 2) Parts Diagram

  • Title

1

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

2

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

3

Exmark 1-809001

32128-20
(Superseded to 32128-20)

Note: Kaw 14 HP & Koh

$1.49

$

In Stock, Qty 20+

0

Exmark 1-809001

32128-20
(Superseded to 32128-20)

Note: Kaw 17 HP & B&S

$1.49

$

In Stock, Qty 20+

0

4

Exmark 1-413009-01

PLATE-GUARD

$

$

Not available

5

Exmark 1-800521

SCRW,CAP HH

Note: Use Pro-lock (Nut type Part No. 840022 (.5ml) tube on setscrew threads

$1.49

$

In Stock, Qty 13

0

6

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

Exmark 1-303327

98-5975
(Superseded to 98-5975)

Note: 14 HP Kaw

$3.99

$

In Stock, Qty 20+

0

7

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

8

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

9

Exmark 1-412031

SHEAVE,6.13 W/HUB

Note: 36" & 52" Use anti-seize compound

$203.99

$

In Stock, only 3 left!

0

Exmark 1-412028

SHEAVE,6.75 W/DRUM

Note: 48" Use anti-seize compound

$

$

Not available

10

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

11

Exmark 1-412138-03

WLD,PIN PIVOT

$45.99

$

In Stock, Qty 18

0

12

Exmark 1-413062

BAND,BRAKE BLADE

$

$

Not available

13

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

14

Exmark 1-413235

WASHER-SPACER

$2.99

$

In Stock, Qty 20+

0

15

Exmark 1-413207

SLEEVE,BEARING

$14.99

$

In Stock, only 1 left!

0

16

Exmark 1-412417

1-414418
(Superseded to 1-414418)

$

$

Not available

Exmark 1-414418

ASM,CLUTCH ARM W/BEARING

$

$

Not available

Exmark 1-414418

ASM,CLUTCH ARM W/BEARING

$

$

Not available

17

Exmark 1-811007

1481
(Superseded to 1481)

$6.99

$

In Stock, Qty 20+

0

18

Exmark 1-413111

BEARING,CLUTCH SHAFT

Note: Use anti-seize compound

$46.99

$

In Stock, only 2 left!

0

19

Exmark 1-808502

32120-8
(Superseded to 32120-8)

$2.99

$

In Stock, Qty 20+

0

20

Exmark 1-413012

SPACER,CLUTCH BEARING

$

$

Not available

21

Exmark 1-523157

WASHER-SPACER

$1.99

$

In Stock, Qty 20+

0

22

Exmark 1-412011

SHEAVE,6.13 W/SHAFT

Note: Use anti-seize compound

$226.99

$

Usually ships in 3-6 days

0

23

Exmark 1-413049-01

PLATE-CLUTCH PIVOT

$50.99

$

In Stock, Qty 5

0

24

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

25

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

26

Exmark 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

27

Exmark 1-513113

SPRING,BELT TENSION

$25.99

$

In Stock, only 2 left!

0

28

Exmark 1-543007

SPACER,CLUTCH ANCHOR

$8.99

$

In Stock, only 2 left!

0

29

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

30

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

31

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

32

Exmark 1-413282

LINKAGE,LOWER

$23.99

$

In Stock, Qty 7

0

33

Exmark 1-414143

ASM,PIVOT W/BUSHINGS

$143.99

$

Usually ships in 3-6 days

0

34

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.99

$

In Stock, Qty 20+

0

35

Exmark 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

0

36

Exmark 1-800297

323-11
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

37

Exmark 1-800274

322-6
(Superseded to 322-6)

$4.49

$

In Stock, Qty 20+

0

38

Exmark 1-800254

321-6
(Superseded to 321-6)

$0.99

$

In Stock, Qty 5

0

39

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

40

Exmark 1-523498

SPRING,EXTENSION

$12.99

$

In Stock, only 2 left!

0

41

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

42

Exmark 1-809080

SCRW,CAP HH

Note: Kaw 14 HP only Use Pro-lock (Nut type Part No. 840022 (.5ml) tube on setscrew threads

$

$

Not available

Exmark 1-800819

3212-10
(Superseded to 3212-10)

Note: Koh, B&S, & Kaw 17 HP only Use Pro-lock (Nut type Part No. 840022 (.5ml) tube on setscrew threads

$6.99

$

In Stock, Qty 11

0

43

Exmark 1-603610

WASHER-SPRING

Note: Koh, B&S, & Kaw 17 HP only

$5.99

$

In Stock, Qty 20+

0

43

Exmark 1-603610

WASHER-SPRING

Note: Koh, B&S, & Kaw 17 HP only

$5.99

$

In Stock, Qty 20+

0

44

Exmark 1-603609

BUSHING,CLUTCH KEEPER

$31.99

$

In Stock, only 2 left!

0

45

Exmark 1-413339

SHEAVE,ENGINE

Note: Use anti-seize compound

$110.99

$

Usually ships in 3-6 days

0

46

Exmark 1-807264

KEY,MACH 1/4X1/4X2-5/8

$5.99

$

In Stock, Qty 8

0

47

Exmark 1-412325

GUIDE - BELT

$

$

Not available

48

Exmark 1-413096

BELT,BLADE CLUTCH
(Superseded to 1-413096-SL)

$59.99

$

In Stock, only 1 left!

0

49

Exmark 1-323278

SHEAVE-TRANSMISSION

Note: Use anti-seize compound

$92.99

$

In Stock, Qty 7

0

50

Exmark 1-803293

3245-41
(Superseded to 3245-41)

Note: Use Pro-lock (Nut type Part No. 840022 (.5ml) tube on setscrew threads

$2.99

$

In Stock, Qty 20+

0

51

Exmark 1-805262

3256-5
(Superseded to 3256-5)

$0.99

$

In Stock, only 3 left!

0

52

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

53

Exmark 1-323285

130-8362
(Superseded to 130-8362)

$56.99

$

In Stock, only 3 left!

0

54

Exmark 1-803310

SCREW-SET

Note: Use Pro-lock (Nut type Part No. 840022 (.5ml) tube on setscrew threads

$2.99

$

Usually ships in 3-6 days

0

55

Exmark 1-323256

SHEAVE-TRANSMISSION
(Superseded to 103-1666)

Note: Use anti-seize compound

$45.99

$

Usually ships in 3-6 days

0

56

Exmark 1-413340

SPACER,CRANKSHAFT

$

$

Not available

57

Exmark 1-323280

BELT,TRANS DRIVE
(Superseded to 1-323280-SL)

$50.99

$

In Stock, Qty 20+

0

58

Exmark 1-800275

322-7
(Superseded to 322-7)

Note: B&S & Kaw 17 HP

$1.49

$

In Stock, Qty 20+

0

Exmark 1-809072

33114-025
(Superseded to 33114-025)

Note: Kaw 14 HP & Koh

$1.99

$

In Stock, Qty 14

0

59

Exmark 1-800294

323-8
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

60

Exmark 1-807511

3231-6
(Superseded to 3231-6)

$3.49

$

In Stock, Qty 18

0

Exmark 1-850337

PAINT,SPRAY RED

$37.99

$

In Stock, Qty 9

0
