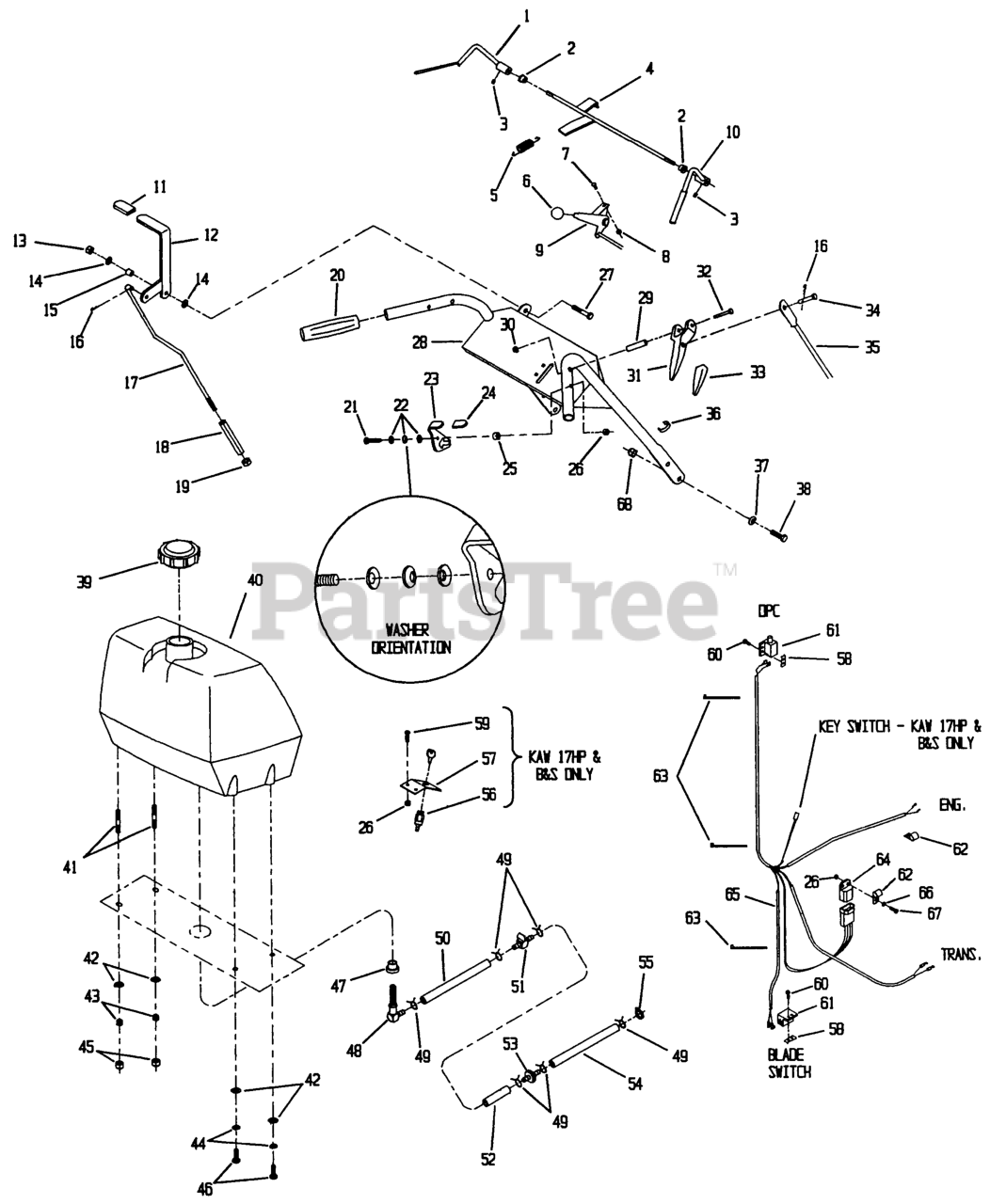

MHP4816B - Exmark 48" Metro HP Walk-Behind Mower, 16hp Briggs & Stratton (SN: 150000 - 189999) (1998) Upper Handles And Controls Parts Diagram

48" Metro HP Walk-Behind Mower, 16hp Briggs & Stratton

Upper Handles And Controls Parts Diagram

  • Title

1

Exmark 1-412183-03

LEVER-LH

Note: Use Pro-lock retaining type, Part No. 840023 (.5ml tube) on inside of bore of OPC hub and on fuel tank studs.

$87.99

$

In Stock, only 4 left!

0

2

Exmark 1-303365

BUSHING-NYLON

$5.99

$

In Stock, Qty 20+

0

3

Exmark 1-803322

SCREW-SET

Note: Use Pro-lock nut type, Part No. 840022 (.5ml tube) on setscrew threads

$1.49

$

In Stock, Qty 20+

0

4

Exmark 1-322192-03

WLD,ROD OPC

$52.99

$

In Stock, only 4 left!

0

5

Exmark 1-303363

SPRING-EXTENSION

$7.49

$

In Stock, Qty 15

0

6

Exmark 1-513592

KNOB-BALL

$7.49

$

In Stock, Qty 16

0

7

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

8

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

9

Exmark 1-323129

CABLE,THROTTLE CONTROL

Note: Koh & Kaw 14 HP

$

$

Not available

Exmark 1-633696

THROTTLE CABLE ASM

Note: B&S

$68.99

$

In Stock, Qty 18

0

Exmark 1-413428

CONTROL,THROTTLE

Note: Kaw

$76.99

$

In Stock, only 2 left!

0

10

Exmark 1-412185-03

LEVER-RH

Note: Use Pro-lock retaining type, Part No. 840023 (.5ml tube) on inside of bore of OPC hub and on fuel tank studs.

$91.99

$

In Stock, only 3 left!

0

11

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, only 2 left!

0

12

Exmark 1-414234

116-6334
(Superseded to 116-6334)

$72.99

$

In Stock, only 2 left!

0

13

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

14

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

15

Exmark 1-413088

BUSHING-LEVER, LIFT

$11.99

$

In Stock, Qty 20+

0

16

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

17

Exmark 1-413293

LINKAGE,UPPER

$86.99

$

In Stock, only 2 left!

0

18

Exmark 1-413279

TURNBUCKLE

$55.99

$

In Stock, Qty 7

0

19

Exmark 1-804507

3217-7
(Superseded to 3217-7)

$0.99

$

In Stock, Qty 15

0

20

Exmark 1-303097

104-9838
(Superseded to 104-9838)

$6.49

$

In Stock, Qty 20+

0

21

Exmark 1-800259

321-18
(Superseded to 321-18)

$2.49

$

In Stock, Qty 17

0

22

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

23

Exmark 1-324279

137-9508
(Superseded to 137-9508)

$30.99

$

In Stock, only 2 left!

0

Exmark 1-324280

137-9507
(Superseded to 137-9507)

$30.99

$

In Stock, only 2 left!

0

24

Exmark 1-303019

GRIP-LATCH

$2.99

$

In Stock, only 2 left!

0

25

Exmark 1-323549

SPACER

$14.99

$

Usually ships in 3-6 days

0

26

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

Exmark 1-804255

3296-42
(Superseded to 3296-42)

Note: B&S & Kaw 17 HP

$0.99

$

In Stock, Qty 20+

0

27

Exmark 1-800295

323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

28

Exmark 1-412372

103-0214
(Superseded to 103-0214)

$

$

Not available

29

Exmark 1-806340

PIN-ROLL
(Superseded to 1-806340)

$5.99

$

In Stock, Qty 8

0

30

Exmark 1-803001

NUT-PUSH

$1.49

$

In Stock, Qty 20+

0

31

Exmark 1-302006

DRIVE LEVER ASM

$63.99

$

In Stock, Qty 7

0

32

Exmark 1-808250

PIN-LEVER, DRIVE

$2.99

$

In Stock, Qty 20+

0

33

Exmark 1-303021

GRIP-LEVER, DRIVE

$1.99

$

In Stock, Qty 20+

0

34

Exmark 1-808286

PIN-CLEVIS

$5.99

$

In Stock, Qty 20+

0

35

Exmark 1-413338

LINKAGE,DRIVE WHEEL

$21.99

$

In Stock, only 2 left!

0

36

Exmark 1-303088

CLIP-CABLE

$2.99

$

Usually ships in 3-6 days

0

37

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

38

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

39

Exmark 1-513508

CAP-FUEL

$30.99

$

In Stock, Qty 20+

0

40

Exmark 1-413179

109-6930
(Superseded to 109-6930)

$

$

Not available

41

Exmark 1-633023

STUD

Note: Use Pro-lock retaining type, Part No. 840023 (.5ml tube) on inside of bore of OPC hub and on fuel tank studs.

$6.99

$

In Stock, Qty 12

0

42

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

43

Exmark 1-633349

SPRING-TANK, FUEL

$5.99

$

In Stock, Qty 17

0

44

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

45

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

46

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

47

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

48

Exmark 1-543277

ELBOW-TANK, FUEL

$13.99

$

In Stock, Qty 20+

0

49

Exmark 1-303077

CLAMP

Note: B&S & Kaw 17 HP

$1.49

$

In Stock, Qty 20+

0

Exmark 1-303077

CLAMP

Note: Kaw 14 HP

$1.49

$

In Stock, Qty 20+

0

Exmark 1-303077

CLAMP

Note: Koh

$1.49

$

In Stock, Qty 20+

0

50

Exmark 1-603955

HOSE-FUEL

Note: Koh & Kaw 14 HP

$6.49

$

Usually ships in 3-6 days

0

Exmark 1-543649

DISCONTINUED

Note: B&S & Kaw 17 HP

$

$

Not available

51

Exmark 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0

52

Exmark 1-603776

HOSE-LINE, FUEL

Note: Kaw 14 HP & Koh

$

$

Not available

Exmark 1-303471

LINE-FUEL

Note: B&S & Kaw 17 HP

$9.49

$

Usually ships in 3-6 days

0

53

Exmark 1-303197

109585
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 20+

0

54

Exmark 1-303471

LINE-FUEL

Note: Kaw 14 HP

$9.49

$

Usually ships in 3-6 days

0

Exmark 1-603954

HOSE-LINE, FUEL

Note: Koh

$10.99

$

Usually ships in 3-6 days

0

55

Exmark 1-303308

CLAMP-HOSE

Note: Kaw 14 HP

$

$

Not available

56

Exmark 1-403121

SWITCH & KEY (INCLUDES NU

Note: B&S & Kaw 17 HP

$25.99

$

In Stock, only 2 left!

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.99

$

In Stock, Qty 16

0

57

Exmark 1-403118-01

DISCONTINUED

Note: B&S & Kaw 17 HP

$

$

Not available

58

Exmark 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

59

Exmark 1-800251

321-3
(Superseded to 321-3)

Note: B&S & Kaw 17 HP

$1.49

$

In Stock, Qty 20+

0

60

Exmark 1-803028

3290-500
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

61

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$21.99

$

In Stock, Qty 12

0

62

Exmark 1-323229

CLIP-LOOM

$3.49

$

Usually ships in 3-6 days

0

63

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

64

Exmark 1-323430

MODULE-INTERLOCK

$153.99

$

In Stock, only 2 left!

0

65

Exmark 1-413360

DISCONTINUED

Note: Kaw 14 HP Use dielectric grease on all electrical connectors.

$

$

Not available

Exmark 1-413357

DISCONTINUED

Note: Koh Use dielectric grease on all electrical connectors.

$

$

Not available

Exmark 1-413361

DISCONTINUED

Note: B&S Use dielectric grease on all electrical connectors.

$

$

Not available

Exmark 1-413429

DISCONTINUED

Note: Kaw 17 HP Use dielectric grease on all electrical connectors.

$

$

Not available

66

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 18

0

67

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

68

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+
