MS6KA26B - Exmark 26" Metro Walk-Behind Mower, 6hp Kawasaki (SN: 600000 - 669999) (2006) Discharge Door, And Bag Assembly Parts Diagram

26" Metro Walk-Behind Mower, 6hp Kawasaki

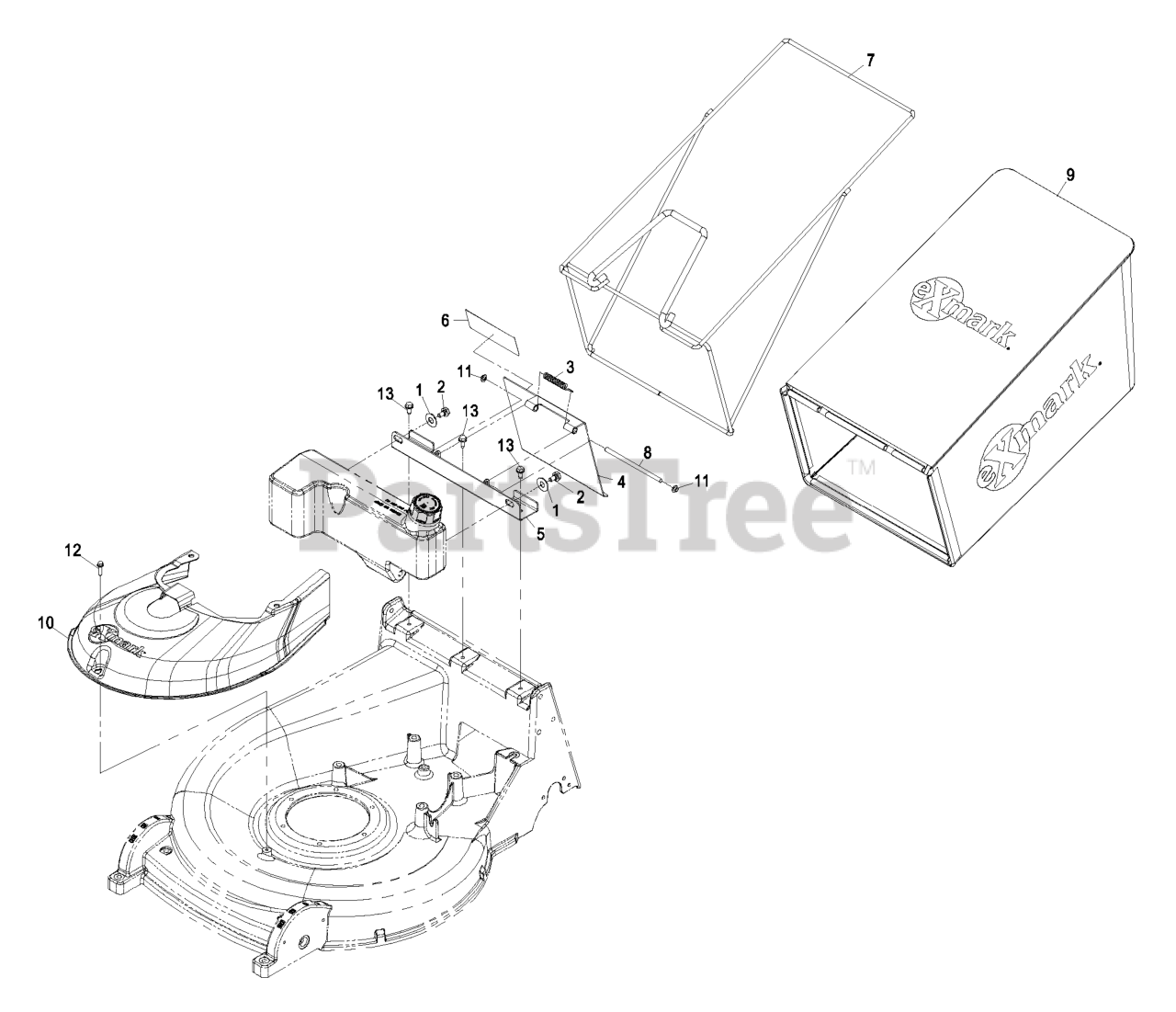

Discharge Door, And Bag Assembly Parts Diagram

  • Title

1

Exmark 28-2450

WASHER-PLASTIC

$

$

Not available

2

Exmark 37-8771

BOLT-SHOULDER,HFH

Note: Use Pro-lock, Nut Type (P/N 1-840022,.5 oz tube) on item #2.

$5.99

$

In Stock, Qty 11

0

3

Exmark 99-5293

SPRING-TORSION

$11.99

$

In Stock, Qty 13

0

4

Exmark 109-0072

ASM,DOOR W/DECALS METRO 2

$

$

Not available

5

Exmark 103-8223-03

BRACKET-MOUNT, BAG/DOOR

$

$

Not available

6

Exmark 104-8585

DECAL-WARNING

$

$

Not available

7

Exmark 109-2445-03

FRAME-BAG

$154.99

$

In Stock, only 1 left!

0

8

Exmark 109-2453

ROD-PIVOT, DOOR

$

$

Not available

9

Exmark 109-2644

BAG,METRO 26 3.0 BU

$252.99

$

In Stock, only 3 left!

0

10

Exmark 109-2645

COVER,SPINDLE

$50.99

$

Usually ships in 3-6 days

0

11

Exmark 32112-11

NUT-PUSH
(Superseded to 32112-11)

$1.49

$

In Stock, only 4 left!

0

12

Exmark 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

13

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$21.99

$

In Stock, only 2 left!

0
