MZT 52 - Husqvarna 52" Zero-Turn Mower ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

52" Zero-Turn Mower

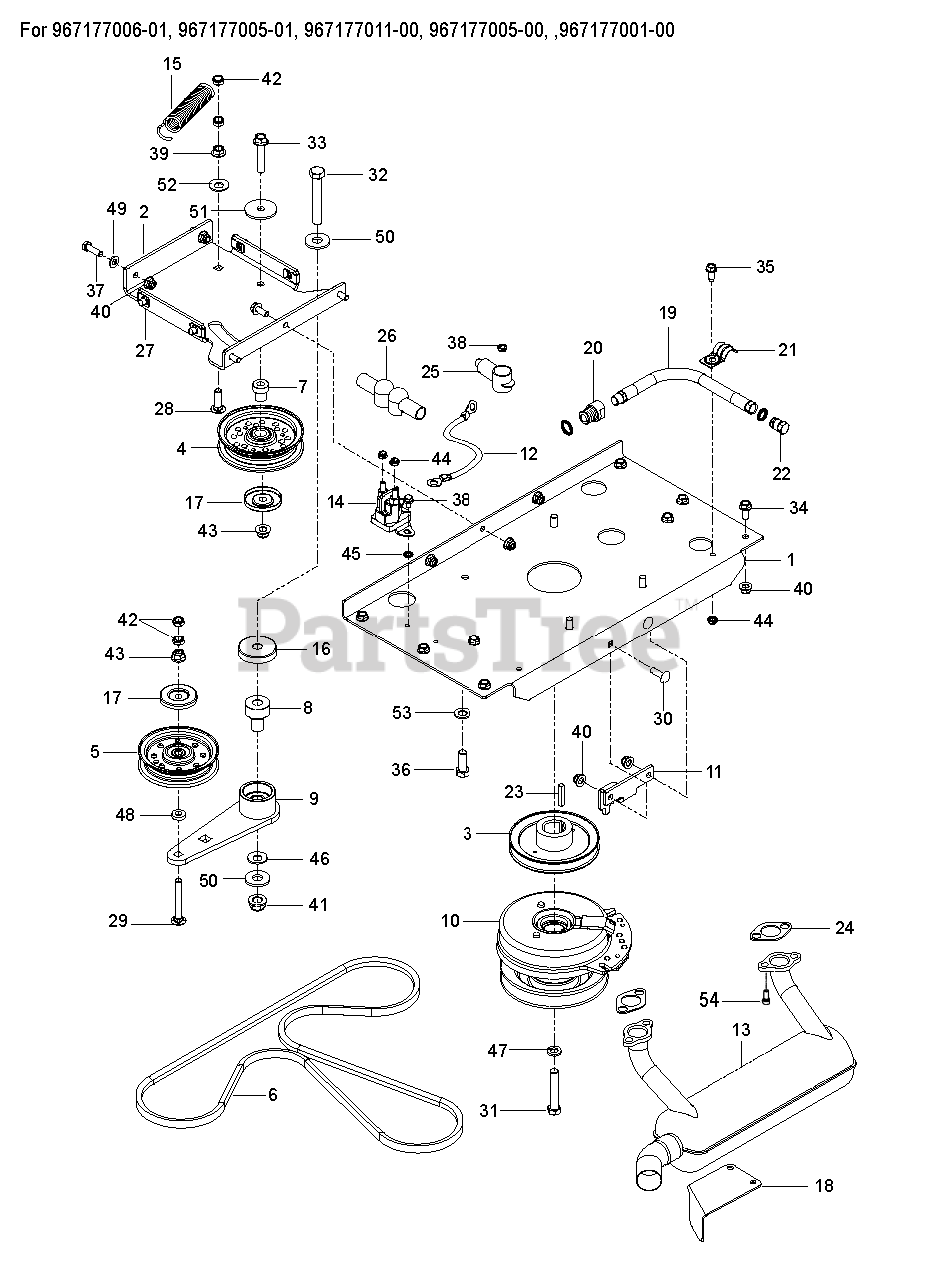

ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

  • Title

43

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 11

0

19

Husqvarna 584825501

HOSE.ASSEMBLY.OIL.DRAIN

$39.99

$

In Stock, only 2 left!

0

9

Husqvarna 510041603

ARM, IDLER, STEEL, W/BGS

$65.99

$

In Stock, only 2 left!

0

22

Husqvarna 522837001

PLUG, DRAIN 3/8 NPTF

Note: For 967177006-01, 967177005-01

$3.49

$

Usually ships in 3-10 days

0

46

Husqvarna 539115528

CONTACT BELLSPR 1/2
(Superseded to 596581701)

$3.99

$

In Stock, only 1 left!

0

31

Husqvarna 539991120

BOLT 7/16F X 2 1/2

Note: For 967177005-00, 967177001-00

$7.49

$

In Stock, Qty 7

0

23

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$5.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

54

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18
(Superseded to 596134202)

Note: For 967177005-00, 967177001-00

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 8

0

36

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

Note: For 967177006-01, 967177011-00

$4.99

$

In Stock, Qty 9

0

27

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 18

0

4

Husqvarna 539976688

IDLER PULLEY
(Superseded to 596739801)

$41.99

$

In Stock, only 4 left!

0

14

Husqvarna 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

Note: For 967177005-01

$33.99

$

In Stock, Qty 20+

0

12

Husqvarna 539102757

CABLE POSITIVE

$7.49

$

In Stock, only 2 left!

0

38

Husqvarna 539990302

HWST 1/4C X 3/8
(Superseded to 596582701)

Note: For 967177005-01

$3.99

$

In Stock, only 1 left!

0

Husqvarna 539107516

KOHLER PIGTAIL-CV490S

$

$

Not available

44

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 596031501)

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

13

Husqvarna 525750201

MUFFLER.26HP.KAW.FX651V-730V

Note: For 967177006-01, 967177011-00

$335.99

$

Usually ships in 3-10 days

0

14

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

Note: For 967177006-01, 967177011-00

$33.99

$

In Stock, Qty 20+

0

41

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532175820

PULLEY.IDLER.FLAT.46.PR.DR.
(Superseded to 596481401)

$33.99

$

In Stock, Qty 12

0

3

Husqvarna 574811001

PULLEY, V, 1.125 BORE

$62.99

$

In Stock, Qty 8

0

30

Husqvarna 872110508

BOLT CRT
(Superseded to 596435701)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539990071

HCS 1/4-20.
(Superseded to 596437001)

$3.99

$

In Stock, Qty 10

0

48

Husqvarna 539109562

WASHER 3/8 X 3/4 X .187 TK

$3.99

$

In Stock, Qty 16

0

50

Husqvarna 539109554

WASH USS FLAT 1/2
(Superseded to 595316401)

Note: For 967177005-01

$3.99

$

In Stock, Qty 14

0

20

Husqvarna 522599001

ADAPTER, OIL DRAIN
(Superseded to 522599002)

Note: For 967177006-01, 967177011-00

$

$

Not available

33

Husqvarna 525866201

HHFS 3/8-16 X 2.0 GD 5

Note: For 967177005-01

$4.99

$

In Stock, only 1 left!

0

45

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.49

$

In Stock, only 2 left!

0

42

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 539976979)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 579150901

SHIELD MUFFLER

$21.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539103433

HCS 1/2C X 3 1/4

Note: For 967177005-01

$7.49

$

In Stock, only 4 left!

0

36

Husqvarna 817120616

SCREW 3/8-16X1

Note: For 967177005-01

$5.99

$

In Stock, Qty 20+

0

38

Husqvarna 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

Note: For 967177006-00

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 586839701

GASKET.EXHAUST.KAWASAKI
(Superseded to 532178151)

$2.49

$

In Stock, Qty 20+

0

34

Husqvarna 525464701

HHFS 5/16-18 X 3/4

Note: For 967177006-01, 967177005-01, 967177011-00

$3.99

$

In Stock, only 1 left!

0

39

Husqvarna 539990613

NUT 3/8C WHIZ
(Superseded to 596583501)

$3.99

$

In Stock, Qty 16

0

37

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, Qty 15

0

47

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00

$3.99

$

In Stock, Qty 5

0

31

Husqvarna 581332802

CLUTCH BOLT7/16-20X2.5 GR596HR
(Superseded to 581332806)

Note: For 967177006-01, 967177005-01, 967177011-00

$7.49

$

In Stock, Qty 12

0

38

Husqvarna 817490406

RP_SCREW.1/4-20X3/8
(Superseded to 817600406)

Note: For 967177006-01, 967177005-01

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 510254501

DUST SHIELD
(Superseded to 510254502)

$4.99

$

In Stock, Qty 12

0

28

Husqvarna 539100413

RHSNB 3/8-16 X 1-1/4

Note: For 967177005-01

$

$

Not available

52

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 539102593

WASHER, 3/8 DISC SPRING SPEC

Note: For 967177006-00

$3.99

$

In Stock, only 4 left!

0

49

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539119680

ADAPTER, OIL DRAIN

Note: For 967177006-00

$27.99

$

Usually ships in 3-10 days

0

13

Husqvarna 576701801

MUFFLER, B&S CYCLONIC

Note: For 967177005-01

$299.99

$

In Stock, only 1 left!

0

32

Husqvarna 874780852

HCS 1/2-13 X 3-1/4 GD 5 ZD
(Superseded to 596435301)

Note: For 967177006-01, 967177011-00

$4.99

$

In Stock, Qty 11

0

28

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 595901101)

Note: For 967177006-01, 967177011-00

$4.99

$

In Stock, only 4 left!

0

26

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$7.49

$

In Stock, only 4 left!

0

6

Husqvarna 574870901

BELT, HYDRO, 3400

$39.99

$

In Stock, Qty 20+

0

2

Husqvarna 586670402

PLATE.PNT.IDLER.SUPPORT.E-DIP

Note: For 967177005-01

$27.99

$

Usually ships in 3-10 days

0

11

Husqvarna 575017302

STOP, CLUTCH, BLACK
(Superseded to 575017305)

$21.99

$

In Stock, only 3 left!

0

16

Husqvarna 539114662

SHIELD, DUST
(Superseded to 596394601)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 581332802

CLUTCH BOLT7/16-20X2.5 GR596HR
(Superseded to 581332806)

Note: For 967177006-00

$7.49

$

In Stock, Qty 12

0

34

Husqvarna 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

Note: For 967177005-00, 967177001-00

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574607001

CLUTCH 200 FT LB

$598.99

$

In Stock, only 1 left!

0

33

Husqvarna 874490632

HHFS 3/8-16 X 2.0 GD 5
(Superseded to 596319401)

Note: For 967177006-01, 967177011-00

$2.49

$

In Stock, only 2 left!

0

50

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.
(Superseded to 595316401)

Note: For 967177006-01, 967177011-00

$3.99

$

In Stock, Qty 14

0

1

Husqvarna 586651402

PLATE.PNT.ENGINE.E-DIP

$59.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532120616

HHFS 3/8-16 X 1.0 THD FORMING
(Superseded to 817120616)

Note: For 967177005-00, 967177001-00

$5.99

$

In Stock, Qty 20+

0

2

Husqvarna 574846402

PLATE, IDLER, BLK

Note: For 967177006-01, 967177011-00

$102.99

$

Usually ships in 3-10 days

0

15

Husqvarna 510254401

SPRING, PUMP
(Superseded to 510254402)

$9.99

$

In Stock, only 3 left!

0

53

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 525866201

HHFS 3/8-16 X 2.0 GD 5

Note: For 967177006-00

$4.99

$

In Stock, only 1 left!

0

51

Husqvarna 539111897

WASHER, 3/8 SPEC
(Superseded to 596917301)

$5.99

$

In Stock, only 2 left!

0

29

Husqvarna 539130235

RHSNB 3/8-16 X 2.75
(Superseded to 596581801)

$3.99

$

In Stock, only 2 left!

0

8

Husqvarna 510206301

PIVOT, BEARING

$5.99

$

In Stock, Qty 5

0

7

Husqvarna 525435601

PIVOT, IDLER

$7.49

$

In Stock, only 2 left!

0
