MZT 52 - Husqvarna 52" Zero-Turn Mower MOWER DECK / CUTTING DECK Parts Diagram

52" Zero-Turn Mower

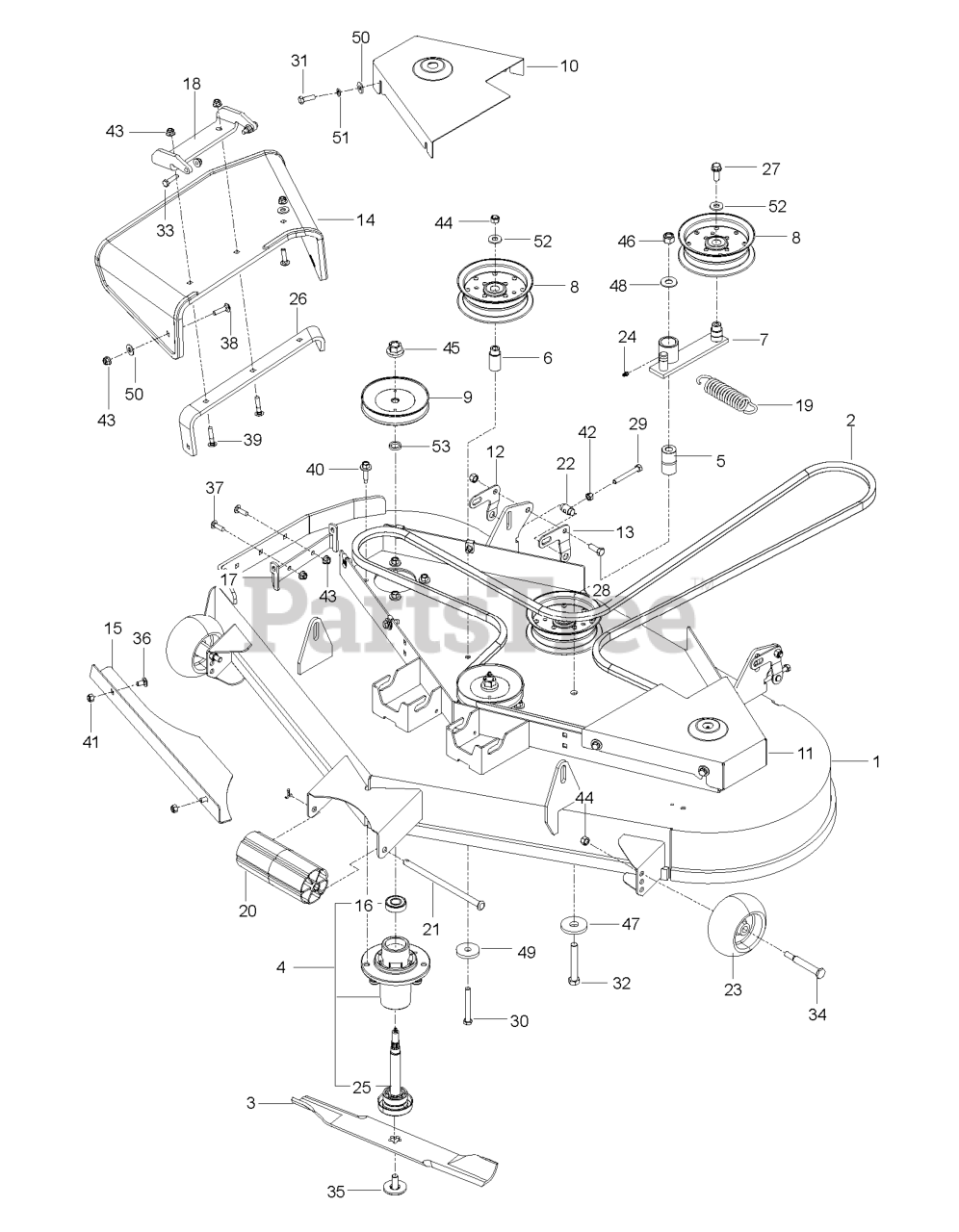

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

51

Husqvarna 810030500

WASH.5/16.SLW.ZD
(Superseded to 596238801)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539112244

BELT SHIELD, LEFT 52, ORG

$71.99

$

Usually ships in 3-10 days

0

29

Husqvarna 874780540

HCS 5/16-18 X 2-1/2 GR 5 ZD

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 872110508

BOLT CRT
(Superseded to 596435701)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 539101341

HCS 3/8C X 3

Note: For 967177001-00

$5.99

$

In Stock, Qty 11

0

34

Husqvarna 532137644

BOLT, SHOULDER
(Superseded to 596434404)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$2.49

$

In Stock, Qty 20+

0

29

Husqvarna 539108396

HCS 5/16-18 X 2 1/2 TPBLT
(Superseded to 596437101)

Note: For 967177001-00

$3.99

$

In Stock, only 2 left!

0

53

Husqvarna 532187690

WASHER.SPACER.MANDREL

$5.99

$

In Stock, Qty 20+

0

18

Husqvarna 539130917

PIVOT BRACKET - CHUTE

$239.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539990550

WASHER 1/2 FLAT
(Superseded to 595316401)

$3.99

$

In Stock, Qty 12

0

19

Husqvarna 539103256

SPRING

$14.99

$

In Stock, Qty 16

0

33

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 595305701)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$4.99

$

In Stock, only 2 left!

0

39

Husqvarna 872140512

BOLT
(Superseded to 596030801)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD
(Superseded to 596583101)

$4.99

$

In Stock, Qty 6

0

31

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

Note: For 967177001-00

$3.99

$

In Stock, Qty 15

0

31

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00
(Superseded to 596580801)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$3.99

$

In Stock, Qty 15

0

37

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

Note: For 967177001-00

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 874780852

HCS 1/2-13 X 3-1/4 GD 5 ZD
(Superseded to 596435301)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$4.99

$

In Stock, Qty 11

0

36

Husqvarna 872110505

BOLT.CARR.5/16-18X5/8.SHORT
(Superseded to 596039401)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$2.49

$

In Stock, Qty 20+

0

28

Husqvarna 874780616

BOLT
(Superseded to 596564401)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$4.99

$

In Stock, Qty 9

0

22

Husqvarna 539131859

TRUNION, PITCH
(Superseded to 596565501)

$14.99

$

In Stock, only 2 left!

0

6

Husqvarna 539112169

IDLER BUSHING
(Superseded to 596841501)

$9.99

$

In Stock, Qty 20+

0

43

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

44

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

Note: For 967177001-00

$4.99

$

In Stock, Qty 9

0

4

Husqvarna 539131898

MANDREL ASM, CAST IRON

$83.99

$

In Stock, Qty 20+

0

42

Husqvarna 873220500

NUT
(Superseded to 596436301)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$3.99

$

In Stock, only 3 left!

0

13

Husqvarna 584859404

BRACKET.LH.PNT.MS431

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$3.99

$

In Stock, only 1 left!

0

41

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

Note: For 967177001-00

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 584859402

BRACKET.RT.PNT.MS431

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$3.99

$

In Stock, only 2 left!

0

21

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$8.49

$

In Stock, Qty 20+

0

8

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$35.99

$

In Stock, Qty 20+

0

38

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4
(Superseded to 596671401)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$4.99

$

In Stock, Qty 14

0

39

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD
(Superseded to 596030801)

Note: For 967177001-00

$4.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539106504

SPINDLE WASHER
(Superseded to 596770301)

$5.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

Note: For 967177001-00

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5
(Superseded to 596564405)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539130920

BRKT, REINF - CHUTE 52/61"
(Superseded to 592964402)

$29.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539130901

CHUTE, RUBBER DISCHARGE 52/61"

$102.99

$

In Stock, only 4 left!

0

46

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 539102243

WASHER, SUPPORT
(Superseded to 596437501)

$11.99

$

In Stock, only 1 left!

0

9

Husqvarna 532173436

PULLEY MANDREL

$21.99

$

In Stock, Qty 20+

0

50

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 532193406)

Note: For 967177001-00

$2.49

$

In Stock, Qty 20+

0

16

Husqvarna 539112050

BEARING, BALL

Note: For 967177001-00

$7.49

$

In Stock, Qty 20+

0

42

Husqvarna 539990196

NUT 5/16C HEX
(Superseded to 596582601)

Note: For 967177001-00

$3.99

$

In Stock, Qty 11

0

52

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 19

0

35

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$9.49

$

In Stock, Qty 20+

0

38

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4
(Superseded to 596671401)

Note: For 967177001-00

$4.99

$

In Stock, Qty 14

0

24

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

36

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

Note: For 967177001-00

$2.49

$

In Stock, Qty 20+

0

2

Husqvarna 522811301

BELT, B, 148.5

$95.99

$

In Stock, Qty 20+

0

20

Husqvarna 532176066

NOSE ROLLER 48"

$14.99

$

In Stock, Qty 20+

0

1

Husqvarna 581505301

DECK SVC MZT 52 W/DECALS.ORNG

$

$

Not available

16

Husqvarna 532110485

BEARING

Note: For 967844001-00, 967177006-01, 967177005-01, 967177011-00, 967177005-00

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 539990627

HCS 5/16C X 1 1/4

Note: For 967177001-00

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539131857

PITCH, ADJUST, RT

Note: For 967177001-00

$41.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539103427

PIVOT BUSHING

$11.99

$

In Stock, Qty 20+

0

17

Husqvarna 581606102

BRACKET.M-ZT.CHUTE(ORG)
(Superseded to 581606104)

$27.99

$

In Stock, only 2 left!

0

32

Husqvarna 539103433

HCS 1/2C X 3 1/4

Note: For 967177001-00

$7.49

$

In Stock, Qty 5

0

23

Husqvarna 532133957

WHEEL GAGE DONUT

$14.99

$

In Stock, Qty 20+

0

45

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

3

Husqvarna 539112079

BLADE, 18"

$26.99

$

In Stock, Qty 20+

0

13

Husqvarna 539131858

PITCH, ADJUST, LT

Note: For 967177001-00

$45.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539112417

CONFINEMENT PLATE, 52"
(Superseded to 593565002)

$

$

Not available

7

Husqvarna 539112198

IDLER ARM

$34.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532187291

SHAFT ASM MANDREL
(Superseded to 597023501)

$33.99

$

In Stock, Qty 20+

0

10

Husqvarna 539112242

BELT SHIELD, RIGHT 52, ORG

$71.99

$

Usually ships in 3-10 days

0
