NV640KC48 - Exmark 48" Navigator Front Mount Mower, Kohler CH640 (SN: 314000000 - 314999999) (2014) Deck Support Frame Assembly Parts Diagram

48" Navigator Front Mount Mower, Kohler CH640

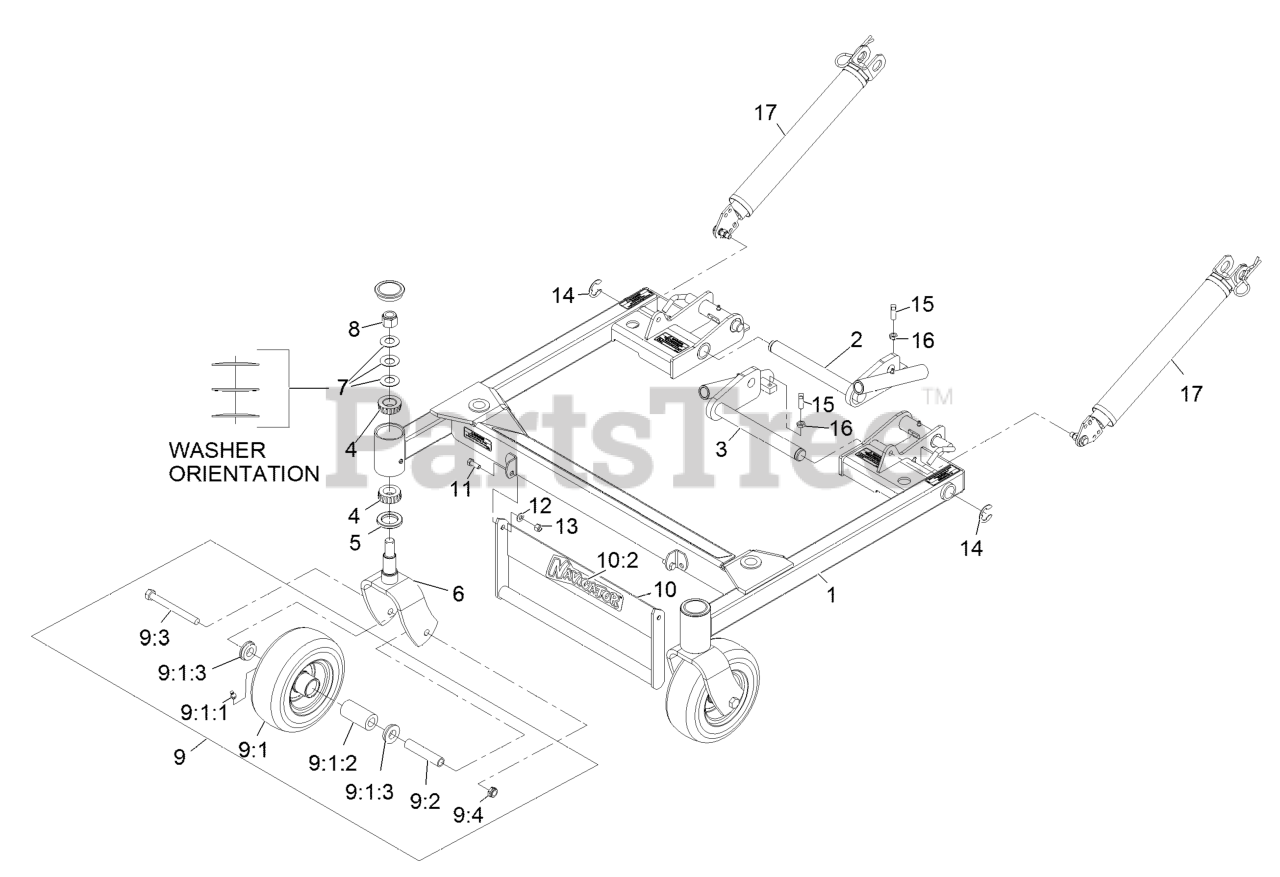

Deck Support Frame Assembly Parts Diagram

  • Title

1

Exmark 103-9480

DECK SUPPORT ASM
(Superseded to 142-2914)

$1204.99

$

Usually ships in 3-6 days

0

2

Exmark 103-3729-01

PIVOT-DECK, RH

$306.99

$

Usually ships in 3-6 days

0

3

Exmark 103-3732-01

PIVOT-DECK, LH

$306.99

$

Usually ships in 3-6 days

0

4

Exmark 1-543509

Cone-Bearing Tapered Roller

$15.99

$

In Stock, Qty 20+

0

5

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 14

0

6

Exmark 109-1933-01

FORK-CASTER

$201.99

$

Usually ships in 3-6 days

0

7

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

8

Exmark 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0

9

Exmark 103-9495

ASM,FF CASTER WHEEL W/AXL
(Superseded to 135-5966)

$155.99

$

In Stock, Qty 5

0

9:1

Exmark 103-4324

ASM,WHEEL,TIRE & BRGS 8X3
(Superseded to 135-5962)

$95.99

$

Usually ships in 3-6 days

0

9:1:1

Exmark 302-61

FITTING-GREASE

$12.99

$

In Stock, only 2 left!

0

9:1:2

Exmark 103-4588

BEARING-ROLLER, STRAIGHT

$39.99

$

Usually ships in 3-6 days

0

9:1:3

Exmark 1-513810

BUSHING

$6.49

$

In Stock, Qty 20+

0

9:2

Exmark 109-2094

SPACER-CASTER, FRONT

$18.99

$

In Stock, only 2 left!

0

9:3

Exmark 325-19

SCREW-HH

$9.49

$

In Stock, Qty 12

0

9:4

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

10

Exmark 103-9482

ASM,DECK LIFT HANDLE W/DE

$192.99

$

Usually ships in 3-6 days

0

10:2

Exmark 103-8504

DECAL,NAVIGATOR MODEL

$31.99

$

Usually ships in 3-6 days

0

11

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

12

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

13

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Exmark 1-808519

RING-SNAP

$2.99

$

In Stock, Qty 18

0

15

Exmark 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 11

0

16

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 5

0

17

Exmark 116-7851

LIFT ASSIST SPRING ASM

$460.99

$

Usually ships in 3-6 days

0
