NV730EKC - Exmark Navigator Front Mount Mower, Kohler ECV730 EFI (SN: 312000000 - 312999999) (2012) Hopper Assembly Parts Diagram

Navigator Front Mount Mower, Kohler ECV730 EFI

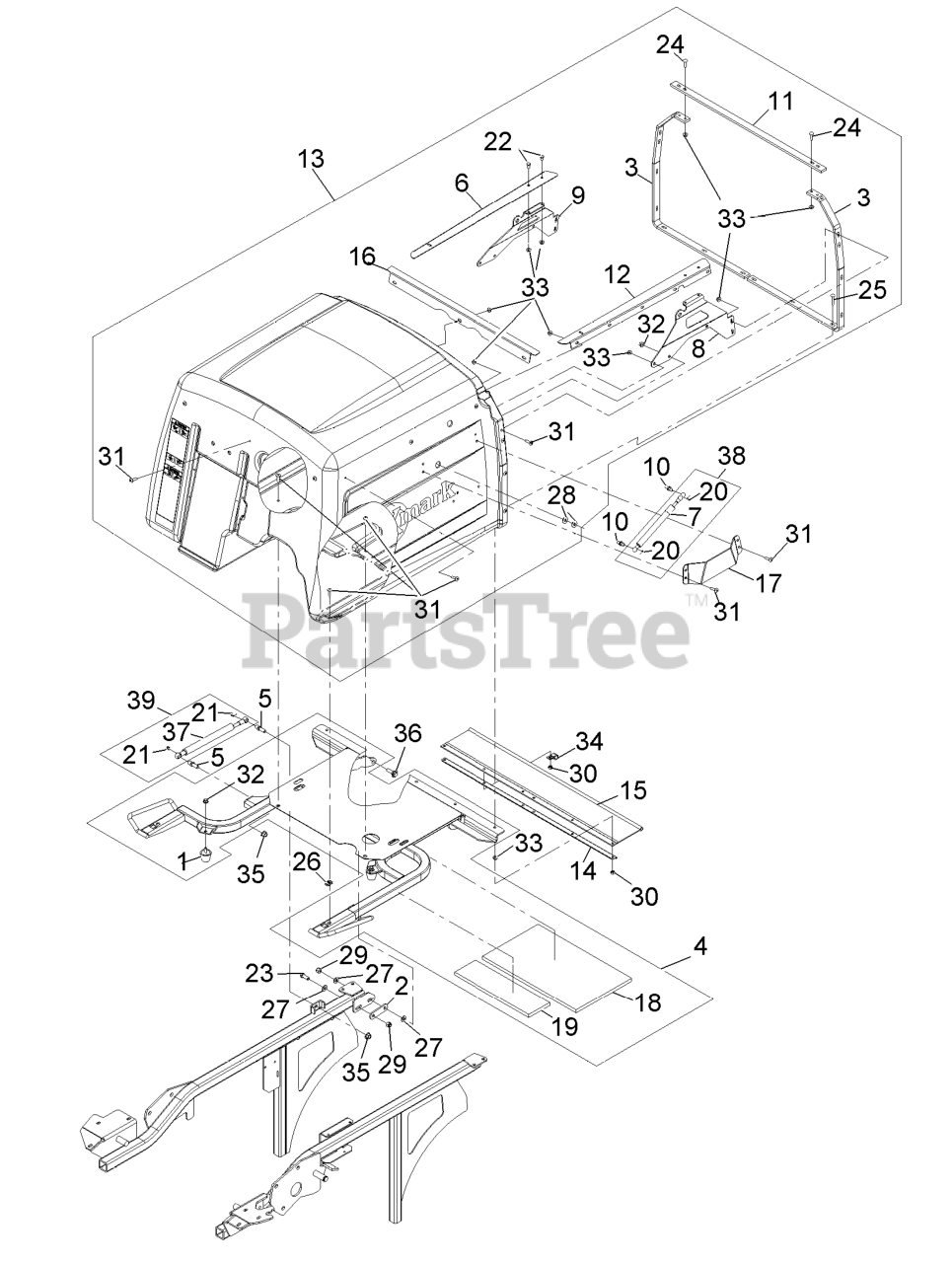

Hopper Assembly Parts Diagram

  • Title

1

Exmark 1-543963

BUMPER-RUBBER

$27.99

$

Usually ships in 3-6 days

0

2

Exmark 1-633068

ARM-LIFT, DECK

$12.99

$

Usually ships in 3-6 days

0

3

Exmark 103-5045-03

REINFORCEMENT-HOPPER

$84.99

$

Usually ships in 3-6 days

0

4

Exmark 109-4086

HOPPER FRAME ASM

$1247.99

$

Usually ships in 3-6 days

0

5

Exmark 103-5426

STUD-BALL

$15.99

$

In Stock, only 2 left!

0

6

Exmark 103-5736-03

ANGLE-SCREEN TRACK, RH

$46.99

$

Usually ships in 3-6 days

0

7

Exmark 103-5746

SHOCK-GAS TENSION

$88.99

$

Usually ships in 3-6 days

0

8

Exmark 103-5749-03

BRACE-DOOR PIVOT, LH

$80.99

$

Usually ships in 3-6 days

0

9

Exmark 103-5751-03

BRACE-DOOR PIVOT, RH

$80.99

$

Usually ships in 3-6 days

0

10

Exmark 103-5752

STUD-BALL

$8.49

$

Usually ships in 3-6 days

0

11

Exmark 103-5772-03

BRACKET-FRAME CONNECT

$69.99

$

Usually ships in 3-6 days

0

12

Exmark 103-5774-03

ANGLE-SCREEN TRACK, LH

$46.99

$

Usually ships in 3-6 days

0

13

Exmark 103-9457

ASM,HOPPER

Note: Reference Hopper Assembly Pg 2 for remainder of items included in assembly.

$3598.99

$

Usually ships in 3-6 days

0

14

Exmark 103-6022-03

CHANNEL-FRAME, HOPPER

$27.99

$

Usually ships in 3-6 days

0

15

Exmark 103-6025

DEFLECTOR-GRASS

$72.99

$

In Stock, only 2 left!

0

16

Exmark 103-7035-03

CHANNEL-SCREEN, FRONT

$34.99

$

Usually ships in 3-6 days

0

17

Exmark 109-4019

PLATE-GUARD

$53.99

$

Usually ships in 3-6 days

0

18

Exmark 103-7824

INSULATION-FOAM PAD, REAR

$35.99

$

Usually ships in 3-6 days

0

19

Exmark 103-7825

INSULATION-FOAM PAD, FRON

$15.99

$

Usually ships in 3-6 days

0

20

Exmark 103-8324

CLIP-RETAINER

$1.99

$

In Stock, only 4 left!

0

21

Exmark 103-8325

CLIP-RETAINER

$2.99

$

Usually ships in 3-6 days

0

22

Exmark 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

23

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

24

Exmark 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

25

Exmark 3229-4

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

26

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

27

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

31

Exmark 32105-32

SCREW-TTH

$1.49

$

In Stock, only 2 left!

0

32

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

33

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

34

Exmark 1-513762

CLIP-LOOM

$8.49

$

In Stock, only 1 left!

0

35

Exmark 33005-00

NUT-HF

$2.49

$

In Stock, only 3 left!

0

36

Exmark 614672

SCREW-SHOULDER, HWH

$3.49

$

In Stock, only 2 left!

0

37

Exmark 103-5425

SHOCK-COMPRESSION, GAS

$193.99

$

Usually ships in 3-6 days

0

38

Exmark 109-0715

DAMPER KIT

$90.99

$

In Stock, only 2 left!

0

39

Exmark 109-0716

DAMPER KIT

$159.99

$

Usually ships in 3-6 days

0
