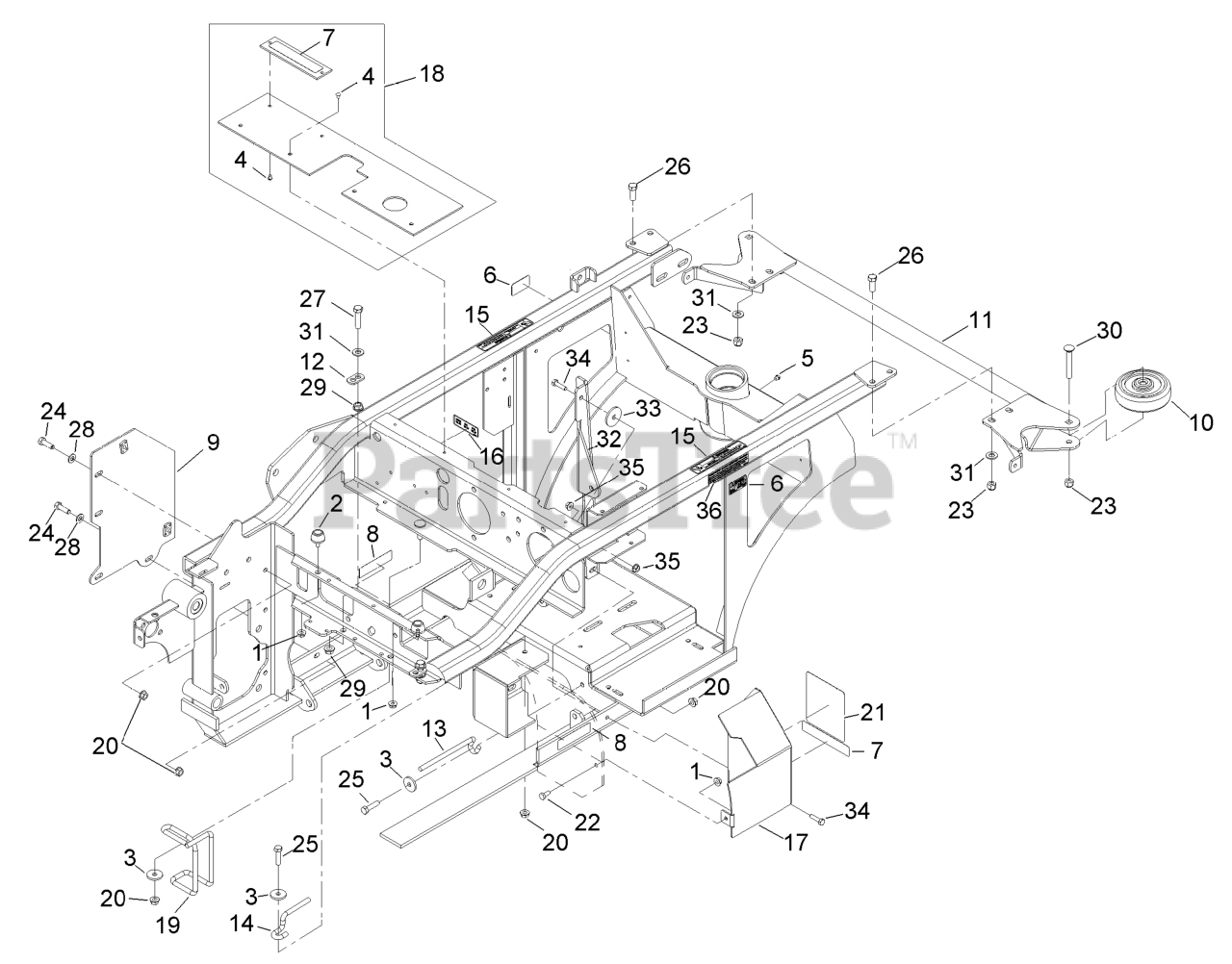

NV730EKC - Exmark Navigator Front Mount Mower, Kohler ECV730 EFI (SN: 312000000 - 312999999) (2012) Main Frame Assembly Parts Diagram

Navigator Front Mount Mower, Kohler ECV730 EFI

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

2

Exmark 109-2365

BUMPER-RUBBER

$5.99

$

In Stock, Qty 20+

0

3

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

4

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

5

Exmark 1-811010

PLUG

$5.99

$

In Stock, only 3 left!

0

6

Exmark 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

7

Exmark 98-4361

DECAL-WARNING

$28.99

$

Usually ships in 3-6 days

0

8

Exmark 98-5954

DECAL-COVER, MISSING

$10.99

$

In Stock, Qty 8

0

9

Exmark 109-2487-03

WLD,FENDER (RAW)

$

$

Not available

10

Exmark 103-5408

ROLLER-BUMPER

$26.99

$

Usually ships in 3-6 days

0

11

Exmark 109-0925-03

BUMPER-REAR

$323.99

$

Usually ships in 3-6 days

0

12

Exmark 103-6537

TAB,SPRING ANCHOR

$

$

Not available

13

Exmark 103-8333

GUIDE-BELT

$12.99

$

Usually ships in 3-6 days

0

14

Exmark 103-8349

GUIDE-BELT

$11.99

$

Usually ships in 3-6 days

0

15

Exmark 103-8495

DECAL,PINCH POINT

$

$

Not available

16

Exmark 103-8611

DECAL,RELAY

$

$

Not available

17

Exmark 103-9475

130-2879
(Superseded to 130-2879)

$106.99

$

Usually ships in 3-6 days

0

18

Exmark 103-9476

LIFT SHIELD ASM

$113.99

$

Usually ships in 3-6 days

0

19

Exmark 103-9022

GUIDE,BELT (PLATED)

$71.99

$

Usually ships in 3-6 days

0

20

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

21

Exmark 103-9274

DECAL,BELT ROUTING

$

$

Not available

22

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

26

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 20+

0

31

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Exmark 109-5874-03

BRACE-PTO

$54.99

$

Usually ships in 3-6 days

0

33

Exmark 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

34

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

35

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

36

Exmark 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

Usually ships in 3-6 days

0
