NV740KC - Exmark Navigator Front Mount Mower, Kohler CV740 (SN: 312000000 - 312999999) (2012) Electrical Assembly Parts Diagram

Navigator Front Mount Mower, Kohler CV740

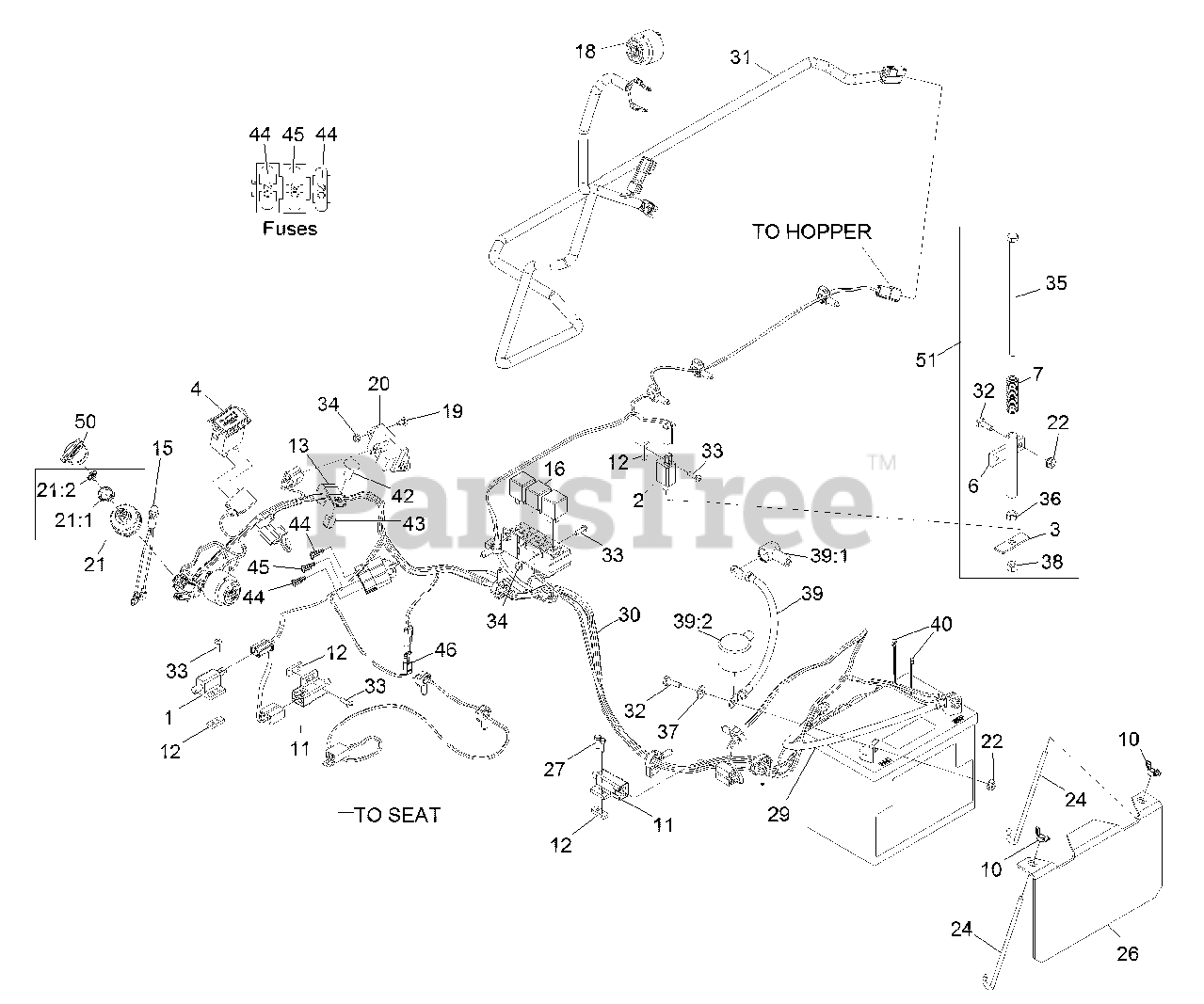

Electrical Assembly Parts Diagram

  • Title

1

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$21.99

$

In Stock, Qty 13

0

2

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$14.99

$

In Stock, Qty 10

0

3

Exmark 1-513180

PLATE-SWITCH, SEAT

$18.99

$

In Stock, only 2 left!

0

4

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$76.99

$

In Stock, Qty 5

0

6

Exmark 1-522424-03

MOUNT-SPRING, SEAT

$41.99

$

Usually ships in 3-6 days

0

7

Exmark 1-523415

SPRING-SWITCH, SEAT

$37.99

$

In Stock, only 1 left!

0

10

Exmark 1-543792

WINGNUT

$6.99

$

In Stock, Qty 20+

0

11

Exmark 1-633111

SWITCH

$23.99

$

In Stock, Qty 5

0

12

Exmark 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

13

Exmark 1-643312

CLIP-LOOM

$6.99

$

In Stock, only 2 left!

0

15

Exmark 1-643267

INDICATOR-LED, RED

$27.99

$

In Stock, only 2 left!

0

16

Exmark 1-643275

RELAY

$26.99

$

In Stock, Qty 19

0

18

Exmark 103-0205

ALARM-TONE, DUAL

$74.99

$

In Stock, only 2 left!

0

19

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

20

Exmark 100-6186

MODULE-DELAY, SEAT

$47.99

$

In Stock, Qty 6

0

21

Exmark 109-4736

ASM,SWITCH W/NUT

$45.99

$

In Stock, Qty 15

0

21:1

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.99

$

In Stock, Qty 10

0

21:2

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.99

$

In Stock, Qty 16

0

22

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

24

Exmark 1-633651

BOLT-HOLDDOWN

$8.99

$

In Stock, Qty 20+

0

26

Exmark 103-4161-03

HOLD DOWN-BATTERY

$44.99

$

Usually ships in 3-6 days

0

27

Exmark 3290-134

SCREW

$0.99

$

In Stock, Qty 16

0

29

Exmark 103-8355

CABLE-BATTERY, NEGATIVE

$18.99

$

Usually ships in 3-6 days

0

30

Exmark 116-5491

HARNESS-WIRING NAVIGATOR

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$

$

Not available

31

Exmark 103-8800

HARNESS-WIRE, HOPPER

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$85.99

$

Usually ships in 3-6 days

0

32

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

33

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

34

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

35

Exmark 322-50

SCREW-HH

$6.99

$

In Stock, Qty 14

0

36

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

37

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 18

0

38

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

39

Exmark 116-4730

CABLE-BATTERY, POSITIVE

$22.99

$

Usually ships in 3-6 days

0

39:1

Exmark 1-543393

INSULATOR-SOLENOID

$5.99

$

Usually ships in 3-6 days

0

39:2

Exmark 109-2407

INSULATOR-BATTERY

$5.99

$

In Stock, only 2 left!

0

40

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

42

Exmark 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

43

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

44

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.99

$

In Stock, only 3 left!

0

45

Exmark 1-816003

FUSE-BLADE TYPE, 30 AMP

$6.49

$

Usually ships in 3-6 days

0

46

Exmark 116-0053

CAP-PLUG

$44.99

$

Usually ships in 3-6 days

0

50

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

51

Exmark 103-8528

HOPPER SWITCH ACTUATOR AS

$113.99

$

Usually ships in 3-6 days

0
