NVS740CKC42000 - Exmark 42" Navigator Front Mount Mower, Kohler CH740 (SN: 402082300 - 404314158) (2018) Gearbox Assembly No. 103-3460 Parts Diagram

42" Navigator Front Mount Mower, Kohler CH740

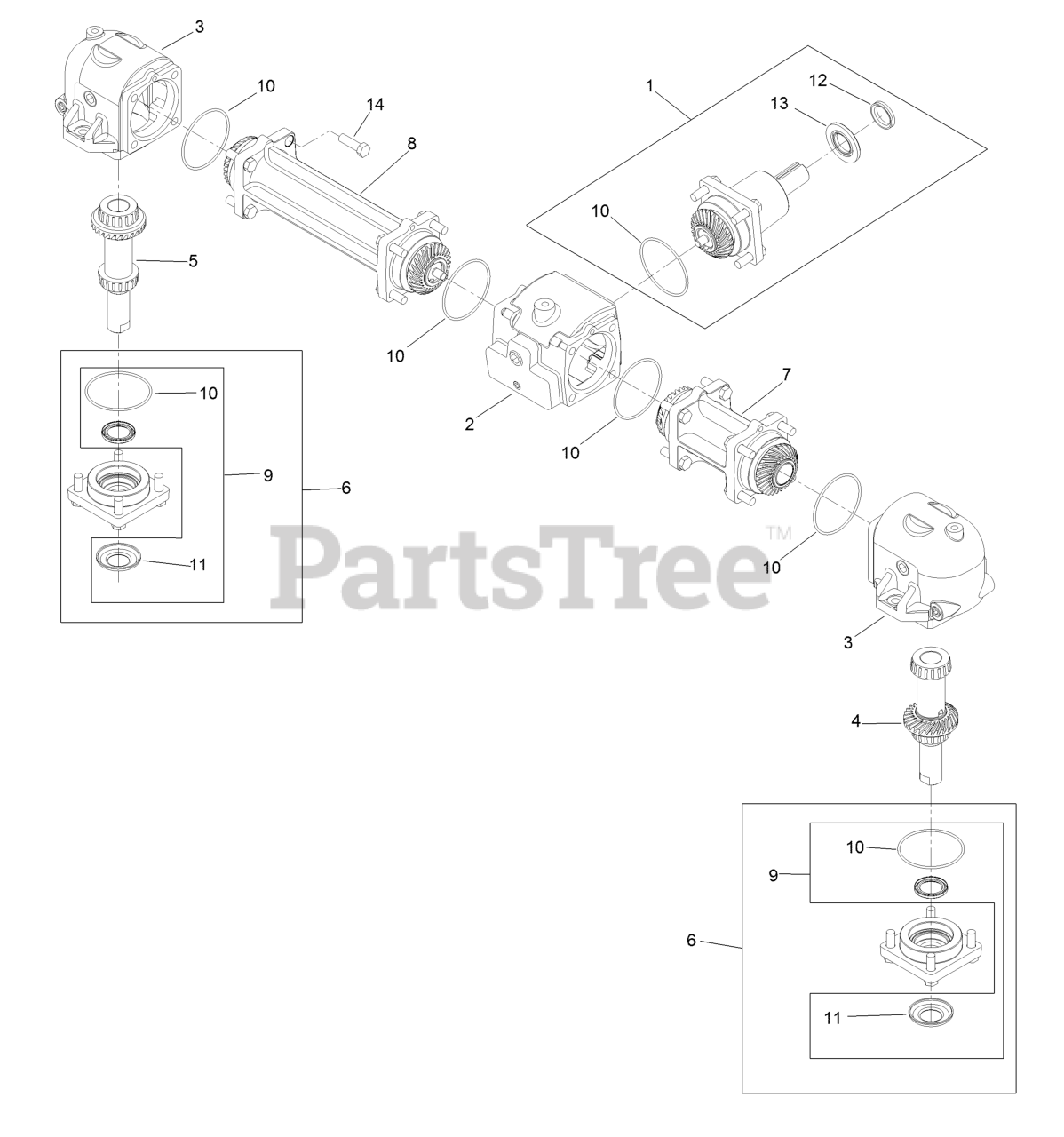

Gearbox Assembly No. 103-3460 Parts Diagram

  • Title

1

Exmark 109-0188

Input Pinion ASM

$699.99

$

Usually ships in 3-6 days

0

2

Exmark 109-0190

Housing-Center

$427.99

$

Usually ships in 3-6 days

0

3

Exmark 109-0191

Housing-End

$378.99

$

Usually ships in 3-6 days

0

4

Exmark 109-0192

LH Output Shaft And Gear ASM

$568.99

$

Usually ships in 3-6 days

0

5

Exmark 109-0194

RH Output Shaft And Gear ASM

$576.99

$

Usually ships in 3-6 days

0

6

Exmark 109-0196

Cap-Output

$212.99

$

Usually ships in 3-6 days

0

7

Exmark 109-0197

Tube-Connector, Short

$757.99

$

Usually ships in 3-6 days

0

8

Exmark 109-0199

Tube-Connector, Long

$912.99

$

Usually ships in 3-6 days

0

9

Exmark 109-0201

Output Seal Kit

$41.99

$

In Stock, only 1 left!

0

10

Exmark 109-0203

Seal-O-Ring

$15.99

$

In Stock, Qty 6

0

11

Exmark 109-0204

Washer-Cupped

$17.99

$

Usually ships in 3-6 days

0

12

Exmark 109-0205

Seal-V-Ring

$18.99

$

In Stock, only 1 left!

0

13

Exmark 109-0202

Seal-Input

$71.99

$

Usually ships in 3-6 days

0

14

Exmark 93-3987

Bolt-Blade
(Superseded to AU328-620)

$0.99

$

Usually ships in 3-6 days

0
