OEM-190-032 - Toro 42" Two-Stage Snow Thrower Attachment (2010) Housing, Auger and Gearbox Assembly Parts Diagram

42" Two-Stage Snow Thrower Attachment

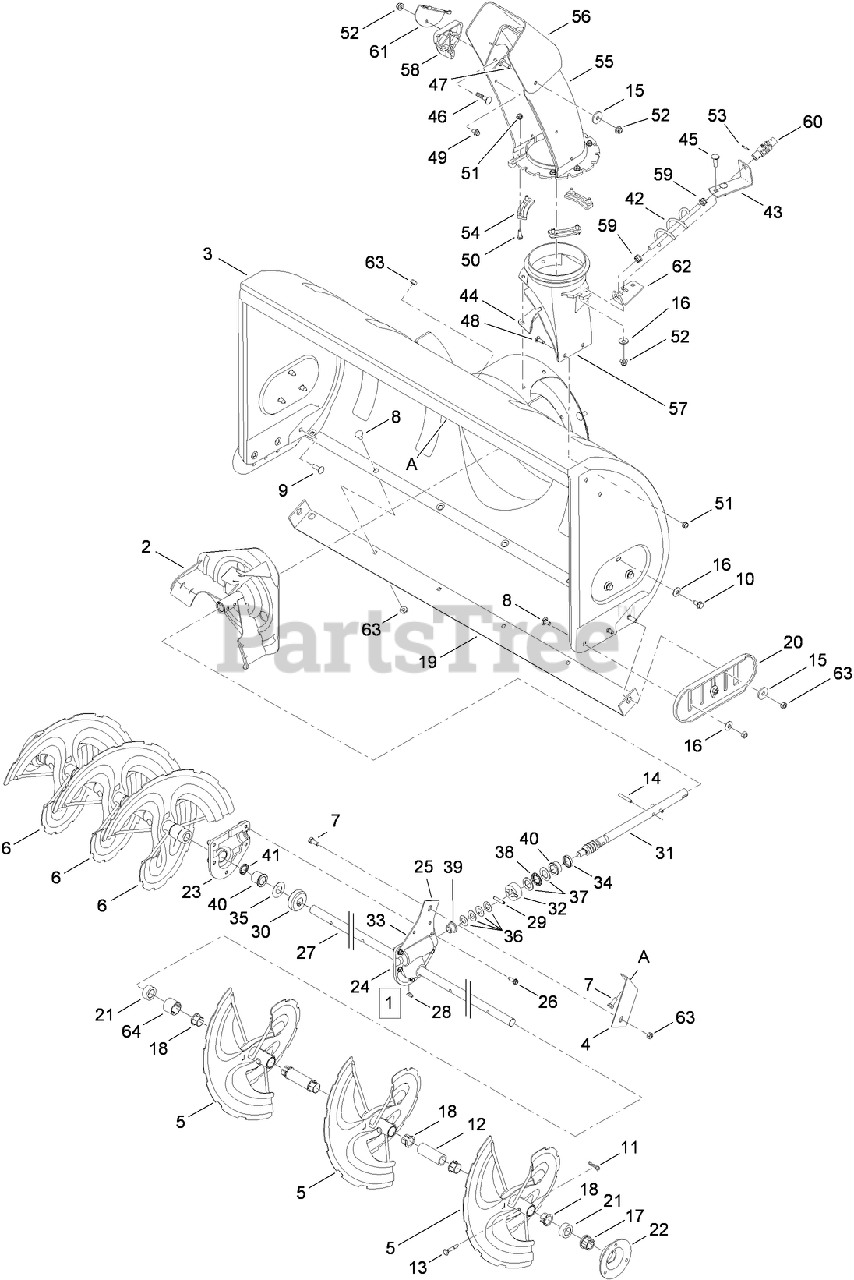

Housing, Auger and Gearbox Assembly Parts Diagram

  • Title

1

Toro 112-1135

AUGER GEARBOX ASM

$896.99

$

Usually ships in 3-6 days

0

2

Toro 112-0959

IMPELLER ASM

$

$

Not available

3

Toro 112-0957

HOUSING ASM

$

$

Not available

4

Toro 112-0965

BRACKET-HOUSING, BRACE

$

$

Not available

5

Toro 112-0961

LH SPIRAL AUGER ASM

$

$

Not available

6

Toro 112-0962

RH SPIRAL AUGER ASM

$

$

Not available

7

Toro 119-3956

SCREW

$

$

Not available

8

Toro 112-1072

BOLT-CARR

$

$

Not available

9

Toro 112-0598

BOLT-CARR

$

$

Not available

10

Toro 112-6070

SCREW-TAP

$7.49

$

In Stock, only 2 left!

0

11

Toro 112-0990

PIN-COTTER

$7.99

$

Usually ships in 3-6 days

0

12

Toro 112-1006

SLEEVE

$

$

Not available

13

Toro 112-1020

PIN-SHEAR

$9.49

$

Usually ships in 3-6 days

0

14

Toro 112-1130

PIN-ROLL

$

$

Not available

15

Toro 112-1159

WASHER-FLAT

$

$

Not available

16

Toro 112-0435

WASHER-BELL

$

$

Not available

17

Toro 112-1179

BEARING-FLANGE

$

$

Not available

18

Toro 112-1022

BEARING-FLANGE

$

$

Not available

19

Toro 112-1061

BRACKET-PLATE, SKID

$

$

Not available

20

Toro 112-1063

SHOE-SLIDE

$

$

Not available

21

Toro 112-0980

SPACER

$

$

Not available

22

Toro 112-1066

HOUSING-BEARING, HEX

$

$

Not available

23

Toro 112-3650

HOUSING-REDUCER, RH

$

$

Not available

24

Toro 112-3651

HOUSING-REDUCER, LH

$96.99

$

Usually ships in 3-6 days

0

25

Toro 112-3652

PLATE-BRACE, HOUSING

$

$

Not available

26

Toro 112-0587

SCREW-TAP

$8.49

$

In Stock, Qty 10

0

27

Toro 112-3653

AXLE-SPIRAL

$

$

Not available

28

Toro 112-3654

KEY-HI PRO

$

$

Not available

29

Toro 112-3655

PIN-SPIROL, SPRING

$

$

Not available

30

Toro 112-3656

GEAR-WORM, 20T

$

$

Not available

31

Toro 112-3657

SHAFT-WORM

$

$

Not available

32

Toro 112-3658

COLLAR-THRUST

$

$

Not available

33

Toro 112-3659

PLUG-GREASE

$

$

Not available

34

Toro 112-3660

SEAL-GREASE

$

$

Not available

35

Toro 112-0813

WASHER-THRUST

$

$

Not available

36

Toro 112-3661

WASHER-FLAT

$

$

Not available

37

Toro 112-3662

WASHER-THRUST

$

$

Not available

38

Toro 119-3957

BEARING-THRUST

$

$

Not available

39

Toro 112-3664

BEARING-FLANGE

$

$

Not available

40

Toro 112-3665

BEARING-FLANGE

$

$

Not available

41

Toro 112-3667

SEAL-GREASE

$

$

Not available

42

Toro 112-0956

CRANK CHUTE ASM

$

$

Not available

43

Toro 112-0966

BRACKET-CHUTE

$

$

Not available

44

Toro 112-0968

REINFORCEMENT-CHUTE

$

$

Not available

45

Toro 112-0598

BOLT-CARR

$

$

Not available

46

Toro 112-1073

BOLT-CARR

$

$

Not available

47

Toro 112-0971

BOLT-CARR

$

$

Not available

48

Toro 112-0479

BOLT-CARR

$

$

Not available

49

Toro 112-1085

SCREW-HH

$

$

Not available

50

Toro 112-6179

SCREW-HEX

$

$

Not available

51

Toro 112-0636

NUT-LOCK, FLANGE

$8.49

$

In Stock, only 1 left!

0

52

Toro 112-0650

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 3 left!

0

53

Toro 119-3958

PIN-SPIROL

$

$

Not available

54

Toro 112-1002

KEEPER-FLANGE, CHUTE

$

$

Not available

55

Toro 112-1007

CHUTE-LOWER

$

$

Not available

56

Toro 112-0999

CHUTE-UPPER

$

$

Not available

57

Toro 112-1009

ADAPTER-CHUTE, DISCHARGE

$

$

Not available

58

Toro 112-1008

GUIDE-CABLE

$

$

Not available

59

Toro 112-0929

BUSHING

$8.49

$

In Stock, Qty 5

0

60

Toro 119-3959

JOINT BLOCK ASM

$

$

Not available

61

Toro 112-1064

BRACKET-CABLE

$

$

Not available

62

Toro 112-1067

BRACKET-CRANK, CHUTE

$

$

Not available

63

Toro 112-0511

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 1 left!

0

64

Toro 112-1000

SPACER

$

$

Not available
