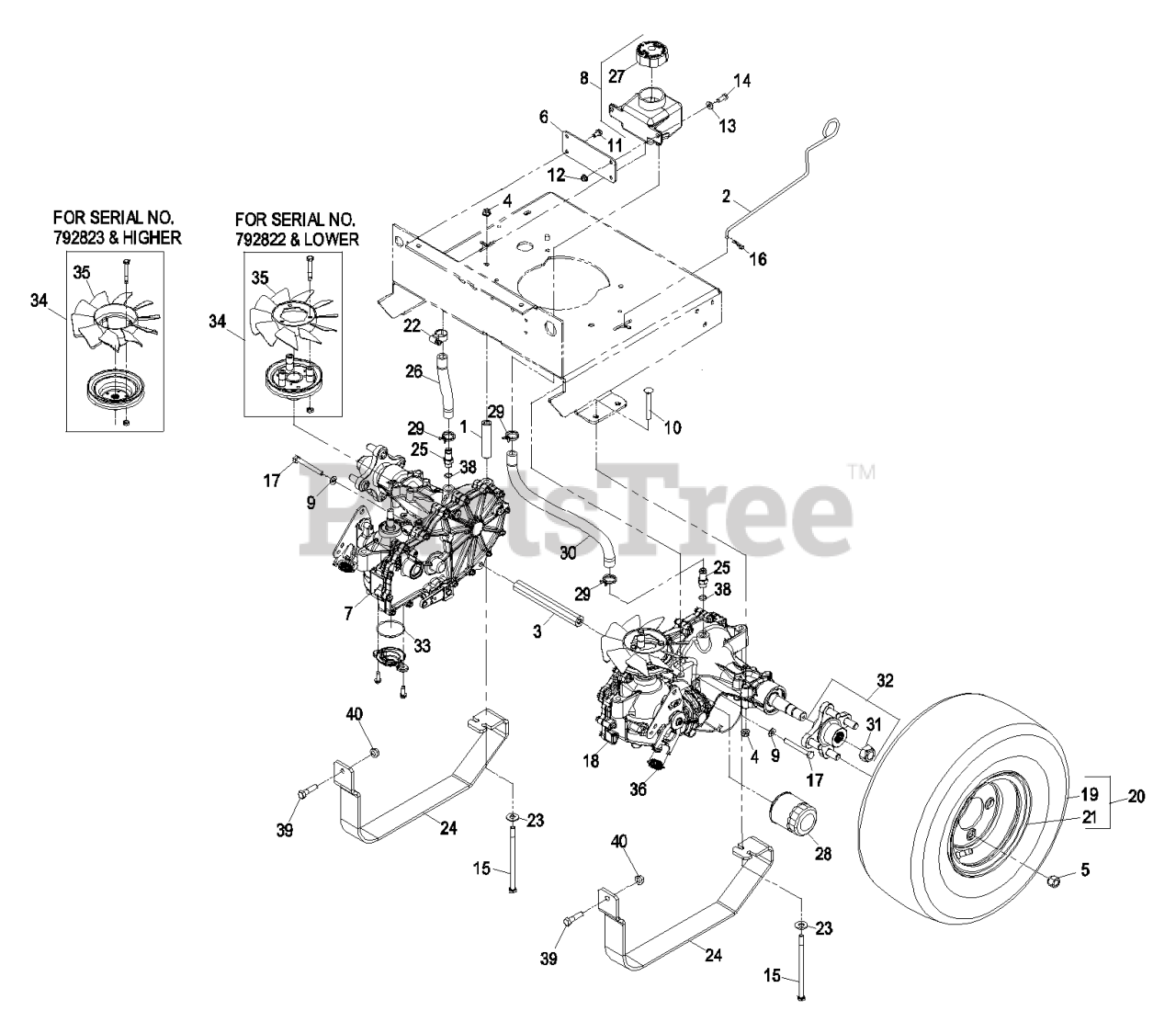

PHZ19KA343 - Exmark 34" Phazer Zero-Turn Mower, 19hp Kawasaki (SN: 790000 - 820976) (2009) Transaxle Group Parts Diagram

34" Phazer Zero-Turn Mower, 19hp Kawasaki

Transaxle Group Parts Diagram

  • Title

1

Exmark 103-9397

SPACER-HYDRO

$22.99

$

Usually ships in 3-6 days

0

2

Exmark 103-9380

ROD-BYPASS, HYDRO

$

$

Not available

3

Exmark 103-9398

SPACER-AXLE

$77.99

$

Usually ships in 3-6 days

0

4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

6

Exmark 103-9350-03

PLATE-MOUNT, TANK

$

$

Not available

7

Exmark 116-1204

RH TRANSAXLE ASM

Note: (RH) LH and RH transmission comes complete with items #28, #31, #32, #33, #34, #35, #36, & #37

$2896.99

$

Usually ships in 3-6 days

0

8

Exmark 109-2250

TANK-HYD

$74.99

$

In Stock, Qty 6

0

9

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

10

Exmark 3230-9

SCREW-CARR

$3.99

$

Usually ships in 3-6 days

0

11

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

12

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Exmark 1-800286

SCREW-HH

$

$

Not available

16

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

17

Exmark 323-11

SCREW-HH

Note: Use Pro-Lock, Nut type (P/N 1-840022, .5ml tube) screw.

$2.49

$

In Stock, Qty 20+

0

18

Exmark 116-1205

LH TRANSAXLE ASM

Note: (LH) LH and RH transmission comes complete with items #28, #31, #32, #33, #34, #35, #36, & #37

$2896.99

$

Usually ships in 3-6 days

0

19

Exmark 109-2594

TIRE,18X7X8

$

$

Not available

20

Exmark 109-2595

ASM,TIRE&WHEEL

$

$

Not available

21

Exmark 109-2596

RIM,8X5.38

$

$

Not available

22

Exmark 109-6801

CLAMP-HOSE

$9.49

$

Usually ships in 3-6 days

0

23

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Exmark 114-0469-03

GUARD-TRANSMISSION

$

$

Not available

25

Exmark 109-3278

ADAPTER-STRAIGHT

$147.99

$

Usually ships in 3-6 days

0

26

Exmark 109-3319

HOSE-HYD

$9.99

$

In Stock, only 2 left!

0

27

Exmark 109-3320

CAP-RESERVOIR, HYD

$31.99

$

In Stock, only 2 left!

0

28

Exmark 109-3321

ELEMENT-OIL FILTER, HYD

$30.99

$

In Stock, Qty 20+

0

29

Exmark 109-3322

CLAMP-HOSE

$1.49

$

In Stock, Qty 8

0

30

Exmark 109-3459

HOSE-HYD

$24.99

$

Usually ships in 3-6 days

0

31

Exmark 109-3536

NUT-HUB

$25.99

$

Usually ships in 3-6 days

0

32

Exmark 109-3538

116-3872
(Superseded to 116-3872)

$77.99

$

In Stock, only 3 left!

0

33

Exmark 109-3540

O RING-SEAL

$7.49

$

In Stock, Qty 20+

0

34

Exmark 116-0172

116-1207
(Superseded to 135-7346)

Note: For Serial No. 792822 & Lower.

$132.99

$

Usually ships in 3-6 days

0

Exmark 116-1207

FAN AND PULLEY KIT
(Superseded to 135-7346)

Note: For Serial No. 792823 & Higher.

$132.99

$

Usually ships in 3-6 days

0

35

Exmark 116-0173

FAN,HYDRO PHZ

Note: For Serial No. 792822 & Lower.

$

$

Not available

Exmark 116-1206

Fan,7"-10 Blade

Note: For Serial No. 792823 & Higher.

$

$

Currently unavailable

36

Exmark 109-2631

SPRING-RETURN, NEUTRAL

$7.49

$

Usually ships in 3-6 days

0

37

Exmark 109-3537

SEAL KIT
(Superseded to 140-8351)

Note: Item not shown

$115.99

$

In Stock, only 4 left!

0

38

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

39

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0
