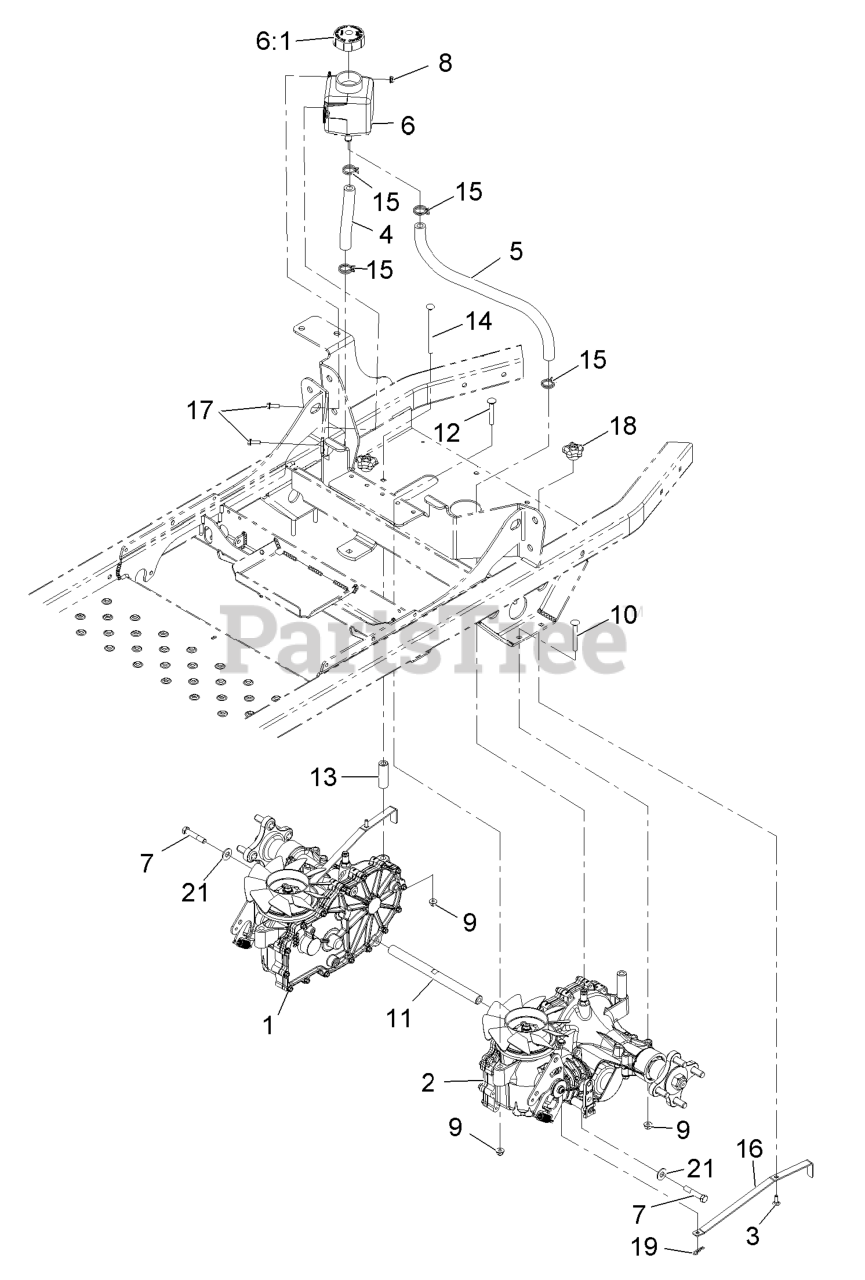

PNE24KA522 - Exmark 52" Pioneer E-Series Zero-Turn Mower, 24hp Kawasaki (SN: 920000 - 999999) (2011) Hydraulic Assembly Parts Diagram

52" Pioneer E-Series Zero-Turn Mower, 24hp Kawasaki

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 116-4544

TRANSAXLE ASM

$2494.99

$

Usually ships in 3-6 days

0

2

Exmark 116-4545

TRANSAXLE ASM

$2494.99

$

Usually ships in 3-6 days

0

3

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

4

Exmark 116-4710

HOSE-HYDRAULIC

$

$

Not available

5

Exmark 109-5578

HOSE-HYDRAULIC

$20.99

$

Usually ships in 3-6 days

0

6

Exmark 109-2250

TANK-HYD

$74.99

$

In Stock, Qty 6

0

6:1

Exmark 109-3320

CAP-RESERVOIR, HYD

$31.99

$

In Stock, only 2 left!

0

7

Exmark 94-7972

SCREW-HH W/LOCTITE

$5.99

$

In Stock, Qty 11

0

8

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

11

Exmark 116-4860

SHAFT-TRANSAXLE SPACER

$

$

Not available

12

Exmark 3230-7

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

13

Exmark 116-2803

SPACER-HYDRO

$

$

Not available

14

Exmark 3230-30

Bolt-Carriage 5/16-18 X 1 1/4

$12.99

$

In Stock, only 3 left!

0

15

Exmark 109-3322

CLAMP-HOSE

$1.49

$

In Stock, Qty 8

0

16

Exmark 109-5395

ARM-BYPASS, HYDRO

$11.99

$

Usually ships in 3-6 days

0

17

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

18

Exmark 108-6402

KNOB-HANDLE

$1.99

$

In Stock, only 4 left!

0

19

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

21

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+
