PNE691KA522 - Exmark 52" Pioneer E-Series Zero-Turn Mower, Kawasaki FR691V (SN: 314000000 - 314999999) (2014) Engine Assembly Parts Diagram

52" Pioneer E-Series Zero-Turn Mower, Kawasaki FR691V

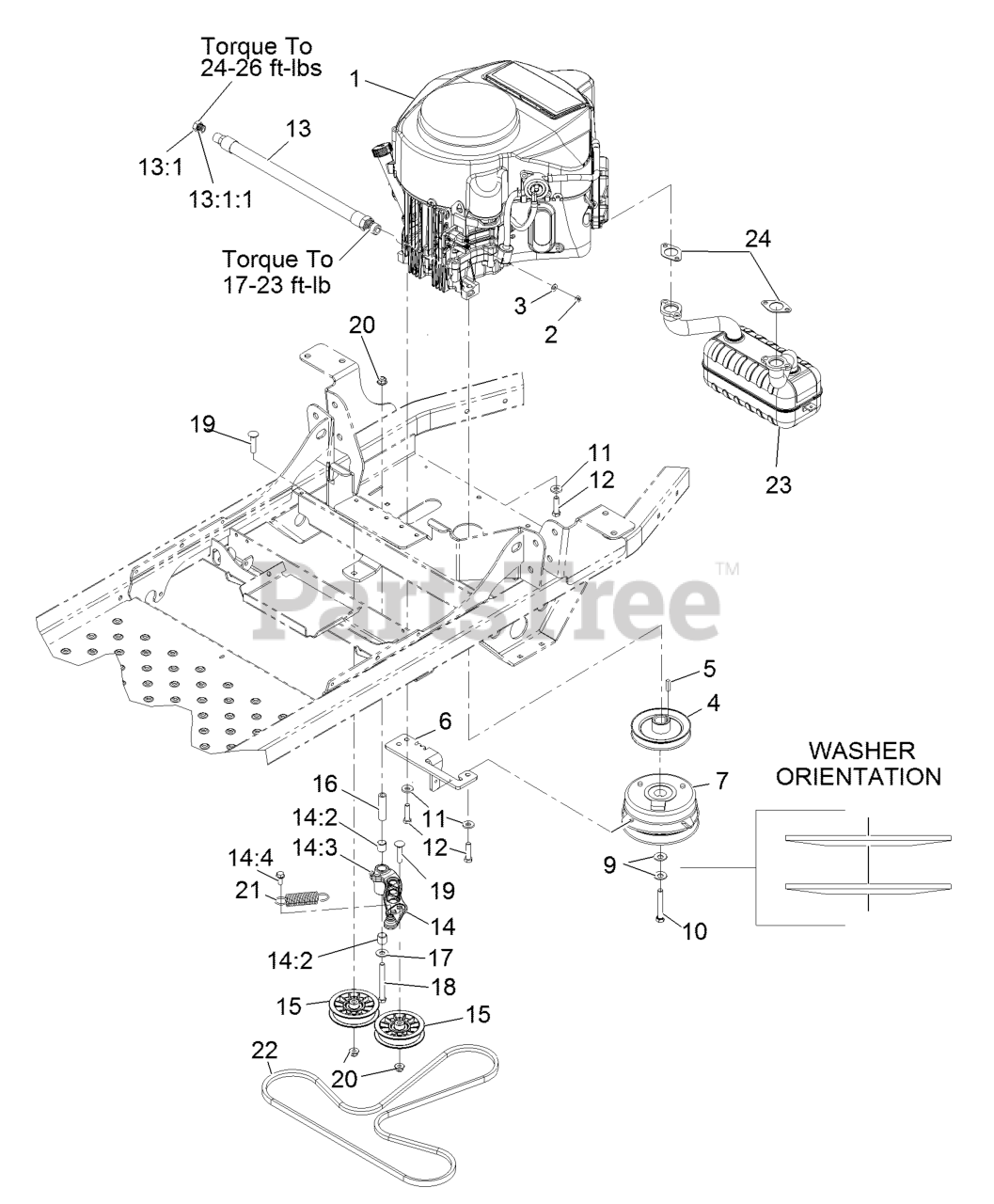

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki

Note: Not serviced separately, Obtain parts from www.kawpowerepc.com

$

$

Not available

2

Exmark 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 9

0

3

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Exmark 109-3386

SHEAVE-SPLIT STEEL

$60.99

$

In Stock, only 2 left!

0

5

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

6

Exmark 116-4773-03

ANCHOR-CLUTCH

$31.99

$

Usually ships in 3-6 days

0

7

Exmark 116-5059

CLUTCH,125FTLB 1.0 B

$493.99

$

In Stock, only 1 left!

0

9

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

10

Exmark 116-1066

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$6.99

$

Usually ships in 3-6 days

0

11

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

12

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$42.99

$

In Stock, Qty 6

0

13:1

Exmark 353-508

PLUG-HH

$9.49

$

In Stock, only 1 left!

0

13:1:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

14

Exmark 126-0973

IDLER ARM ASM

$98.99

$

In Stock, only 2 left!

0

14:2

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

14:3

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

14:4

Exmark 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

15

Exmark 116-2456

PULLEY-FLAT IDLER

$26.99

$

In Stock, Qty 20+

0

16

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

17

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

18

Exmark 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

19

Exmark 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

20

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Exmark 1-603402

SPRING-EXTENSION

$8.99

$

In Stock, Qty 20+

0

22

Exmark 115-9613

V-BELT
(Superseded to 115-9613-SL)

$53.99

$

In Stock, Qty 15

0

23

Exmark 117-7256

MUFFLER-KAWASAKI

$249.99

$

In Stock, only 2 left!

0

24

Exmark 1-653313

GASKET-EXHAUST

$5.99

$

Usually ships in 3-6 days

0
