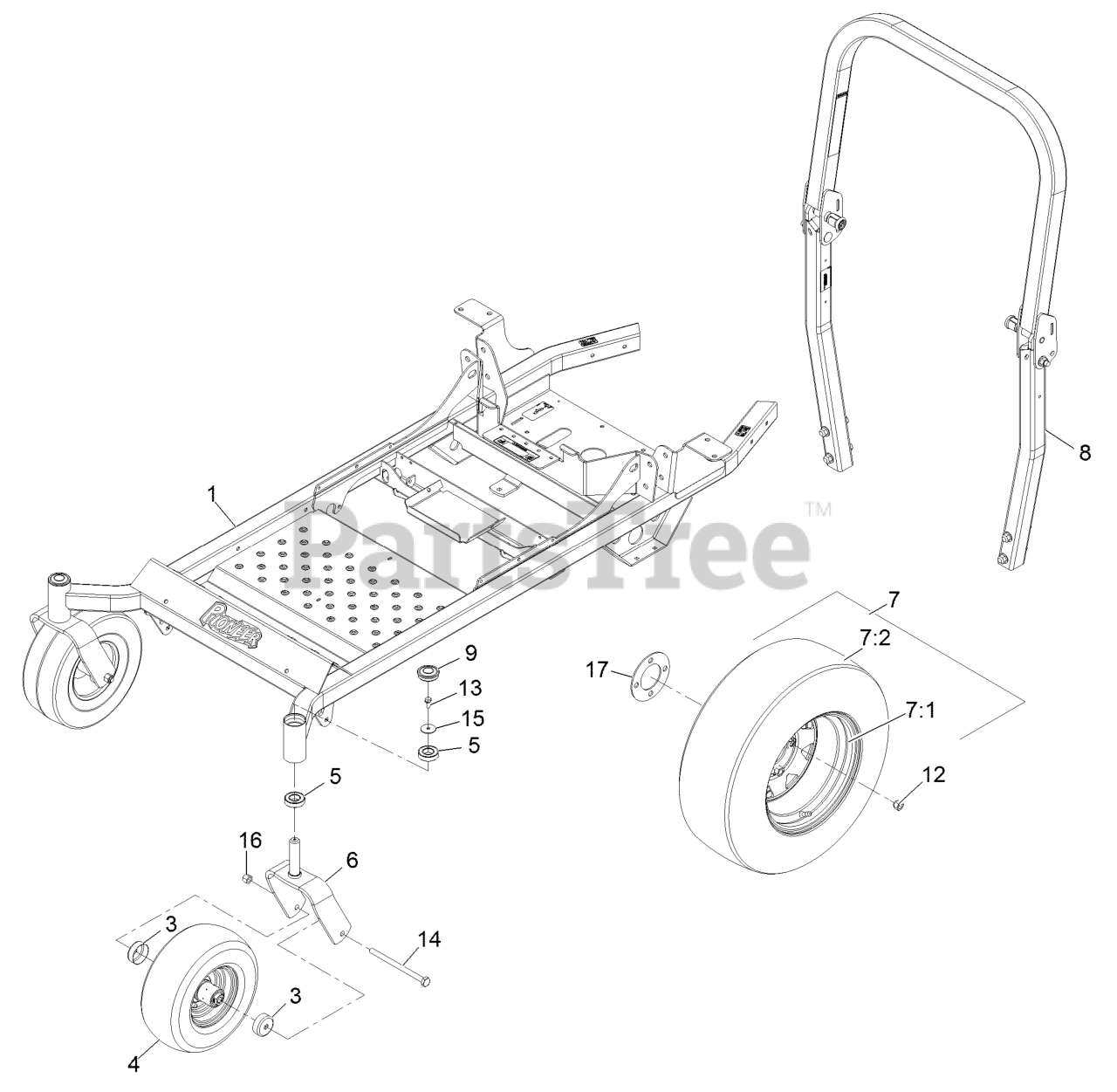

PNS680KC523 - Exmark 52" Pioneer S-Series Zero-Turn Mower, Kohler CV680 (SN: 312000000 - 312999999) (2012) Mainframe Assembly Parts Diagram

52" Pioneer S-Series Zero-Turn Mower, Kohler CV680

Mainframe Assembly Parts Diagram

  • Title

1

Exmark 116-6831

FRAME ASM-48-52

$

$

Not available

3

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

4

Exmark 103-5189

ASM, WHEEL AND TIRE W/ AX

$272.99

$

In Stock, only 2 left!

0

5

Exmark 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

6

Exmark 116-0611-01

WLD,CASTER FORK

$140.99

$

Usually ships in 3-6 days

0

7

Exmark 116-3166

116-5604
(Superseded to 116-5604)

$

$

Not available

7:1

Exmark 116-3167

116-5605
(Superseded to 116-5605)

$

$

Not available

7:2

Exmark 116-1948

TIRE

$341.99

$

Usually ships in 3-6 days

0

8

Exmark 116-3498

ASM-ROPS PIONEER

$501.99

$

Usually ships in 3-6 days

0

9

Exmark 116-4348

CAP-GREASE

$5.99

$

In Stock, Qty 20+

0

12

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

13

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

14

Exmark 325-36

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Exmark 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

16

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 116-5362

SPACER-WHEEL

$18.99

$

Usually ships in 3-6 days

0
