PNS730GKA604A3 - Exmark 60" Pioneer S-Series Zero-Turn Mower, Kawasaki FX (SN: 316000000 - 399999999) (2016) Main Frame Assembly Parts Diagram

60" Pioneer S-Series Zero-Turn Mower, Kawasaki FX

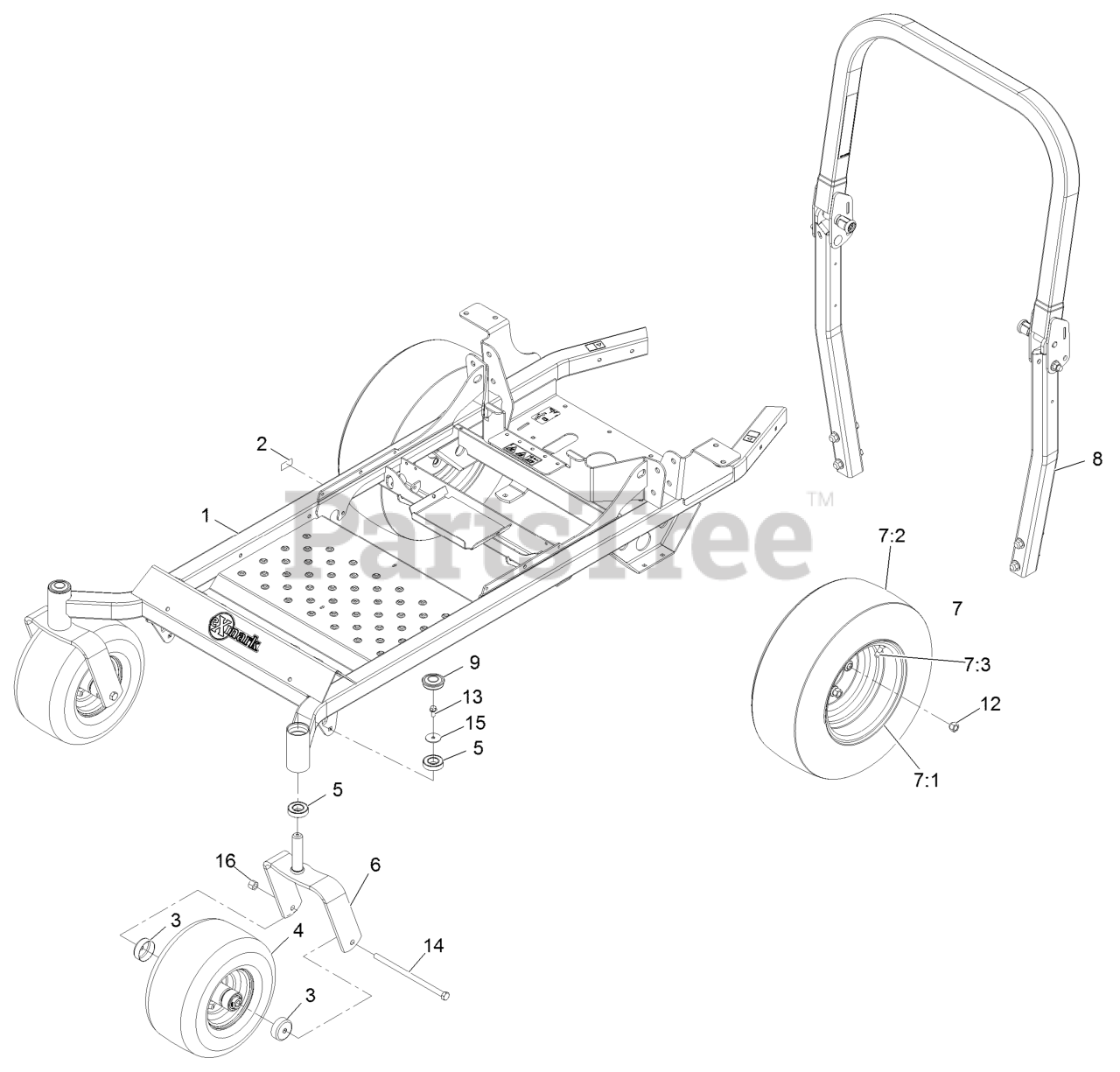

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-5854

FRAME ASM-60

$

$

Not available

2

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0

3

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

4

Exmark 117-0361

CASTER WHEEL ASM

$253.99

$

In Stock, only 2 left!

0

5

Exmark 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

6

Exmark 126-3997-01

CASTER FORK WIDE

$196.99

$

Usually ships in 3-6 days

0

7

Exmark 119-2685

WHEEL AND TIRE ASM

$434.99

$

Usually ships in 3-6 days

0

7:1

Exmark 120-3272

WHEEL

$200.99

$

Usually ships in 3-6 days

0

7:2

Exmark 120-3269

TIRE
(Superseded to 140-7973)

$216.99

$

Usually ships in 3-6 days

0

7:3

Exmark 232-27

Stem-Valve

$

$

Not available

8

Exmark 116-3498

ASM-ROPS PIONEER

$501.99

$

Usually ships in 3-6 days

0

9

Exmark 116-4348

CAP-GREASE

$5.99

$

In Stock, Qty 20+

0

12

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

13

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

14

Exmark 325-39

SCREW-HH

$19.99

$

In Stock, Qty 18

0

15

Exmark 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

16

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0
