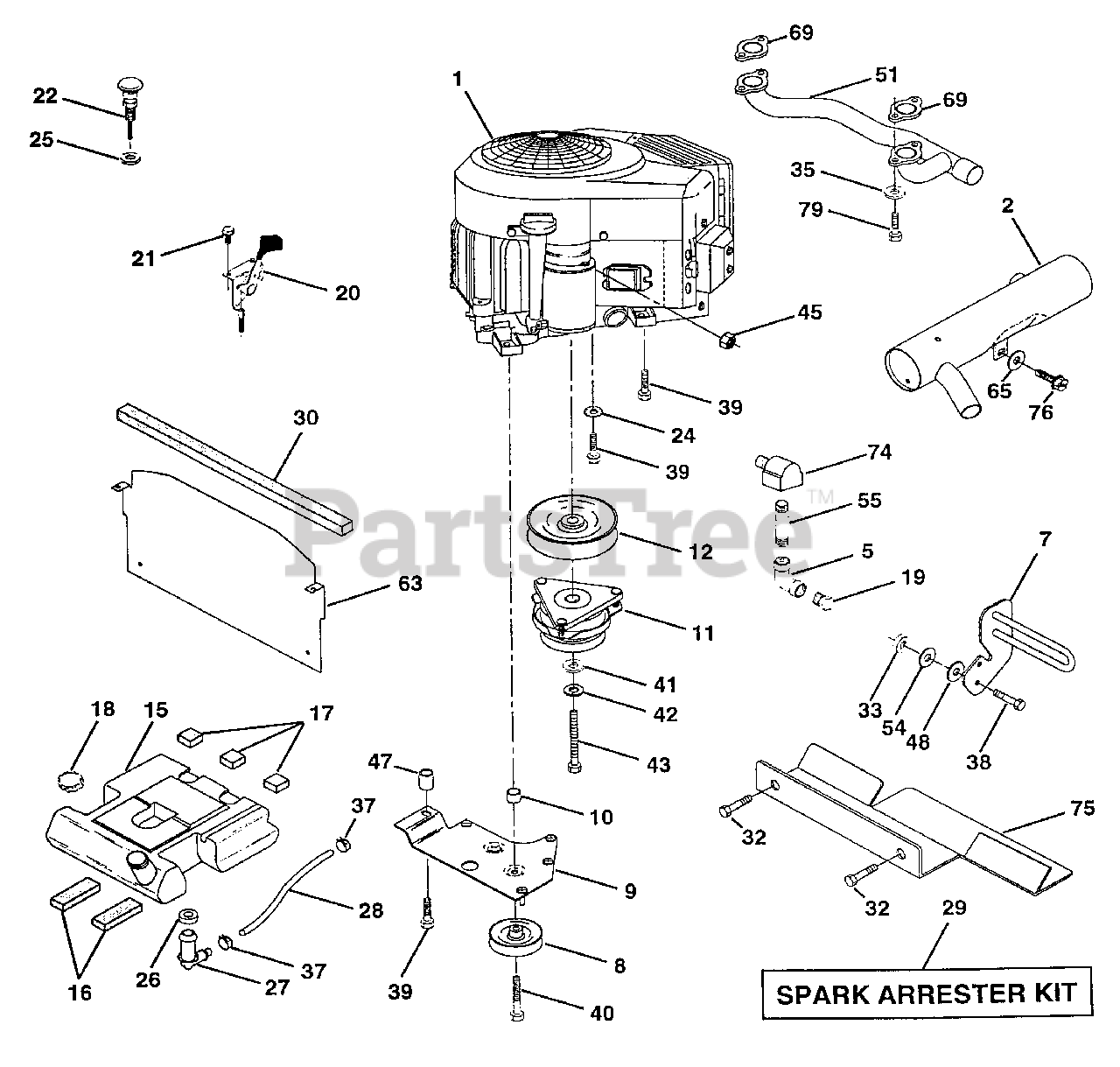

PP 24H50A - Poulan Pro Lawn Tractor Engine Parts Diagram

Lawn Tractor

Engine Parts Diagram

  • Title

1

Engine Briggs Model 445777

Note: (Order parts from engine manufacturer)

$

$

Not available

2

Poulan 161063

Muffler Side

$

$

Not available

5

Poulan 13200300

Elbow STD 90 Degree 3/8 - 18 NPT
(Superseded to 532428287)

$23.99

$

In Stock, Qty 20+

0

7

Poulan 151396

Muffler Assembly Guard

$

$

Not available

8

Poulan 121361X

Pulley V-Idler (AYP part number)

$

$

Not available

9

Poulan 150828

Keeper Asm. Belt Engine VGT (AYP part number)
(Superseded to 532177748)

$

$

Not available

10

Poulan 105432X

Bushing

$

$

Not available

11

Poulan 140923

Clutch Electric (AYP part number)

$

$

Not available

12

Poulan 143996

Pulley Engine VGT Elect Clutch
(Superseded to 532143996)

$43.99

$

In Stock, only 2 left!

0

15

Poulan 151346

Tank Fuel Rear 3.50
(Superseded to 532151346)

$119.99

$

In Stock, Qty 8

0

16

Poulan 109227X

Pad Spacer
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

17

Poulan 106082X

Pad Spacer
(Superseded to 532106082)

$

$

Not available

18

Poulan 140527

Cap Asm Fuel W/Sym Vented
(Superseded to 581075501)

$27.99

$

In Stock, only 4 left!

0

19

Poulan 13290300

Plug Oil Drain

Note: (Order From Engine Manufacturer)

$

$

Not available

20

Poulan 132748

Control Throttle (AYP part number)

$

$

Not available

21

Poulan 17720410

Screw Hex Thd Cut 1/4 - 20 X 5/8

$2.99

$

Usually ships in 3-10 days

0

22

Poulan 132783

Control Choke
(Superseded to 582062001)

$

$

Not available

24

Poulan 11050600

Washer Ext Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

25

Poulan 73920600

Nut Keps 3/8-24 Unf
(Superseded to 873920600)

$

$

Not available

26

Poulan 3645J

Bushing
(Superseded to 532003645)

$4.99

$

In Stock, Qty 20+

0

27

Poulan 139277

Stem Tank Fuel
(Superseded to 532139277)

$7.49

$

In Stock, Qty 20+

0

28

Poulan 7834R

Fuel Line (AYP part number)

$

$

Not available

29

Poulan 132920

Spark Arrester Kit

$

$

Not available

30

Poulan 161547

Extrusion Hood
(Superseded to 532161547)

$

$

Not available

32

Poulan 17490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 817490508)

$

$

Not available

33

Poulan 73800600

Nut, Hex W/Ins. 3/8-16 UNC
(Superseded to 873680600)

$

$

Not available

35

Poulan 10040500

Washer Lock Hvy Hlcl spr 5/16
(Superseded to 810040500)

$

$

Not available

37

Poulan 123487X

Clamp Hose
(Superseded to 532123487)

$3.99

$

In Stock, Qty 8

0

38

Poulan 74780624

Bolt, Fin Hex 3/8-16 UNC x 1-1/2

$2.49

$

Usually ships in 3-10 days

0

39

Poulan 17490636

Screw TT 3/8-16 x 2-1/4 UNC
(Superseded to 817490636)

$2.49

$

In Stock, Qty 20+

0

40

Poulan 17490664

Screw TT 3/8-16 x 4 UNC
(Superseded to 817490664)

$

$

Not available

41

Poulan 126197X

Washer 1-1/2 OD X 15/32 ID X .250
(Superseded to 532126197)

$8.49

$

In Stock, Qty 8

0

42

Poulan 10040700

Washer Lock 7/16
(Superseded to 810040700)

$3.99

$

In Stock, only 4 left!

0

43

Poulan 150280

Bolt Hex 7/16-20 X 4-1/4 Ga 5
(Superseded to 501606501)

$3.99

$

In Stock, Qty 11

0

45

Poulan 128861

Nut Flange 1/4-20 Starter Nut
(Superseded to 539128861)

$

$

Not available

47

Poulan 142040

Spacer Engine CV22 Round PM

$2.99

$

Usually ships in 3-10 days

0

48

Poulan 19132007

Washer 13/32 x 1-1/4 x 7 Ga.
(Superseded to 819132007)

$

$

Not available

51

Poulan 165986

Manifold Pipe Vgt
(Superseded to 583019001)

$

$

Not available

54

Poulan 19131414

Washer Flat 13/32 x 7/8 x 14 Ga.
(Superseded to 819131414)

$3.99

$

In Stock, only 1 left!

0

55

Poulan 13280336

Nipple, Pipe 4-1/2
(Superseded to 532428287)

$23.99

$

In Stock, Qty 20+

0

63

Poulan 145549

Shield, Heat VGT 22 HP YP/Husq.

$8.99

$

Usually ships in 3-10 days

0

65

Poulan 19131614

Washer 13/32 x 1 x 14 Ga. (AYP part number)
(Superseded to 819131612)

$

$

Not available

69

Poulan 165391

Gasket Muffler
(Superseded to 532165391)

$4.99

$

In Stock, Qty 20+

0

74

Poulan 162295

Elbow Street Brass
(Superseded to 532162295)

$41.99

$

Usually ships in 3-10 days

0

75

Poulan 163776

Shield Heat

$

$

Not available

76

Poulan 17490612

Screw Thdrol 3/8-16 x 3/4 Ty-TT
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

79

Poulan 71070512

Screw hex Hd Cap 5/16-18 x 3/4
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0
