PZ 60 (967045601-00) - Husqvarna 60" Zero-Turn Mower (2015-09) BELT GUARD & PULLEY Parts Diagram

60" Zero-Turn Mower

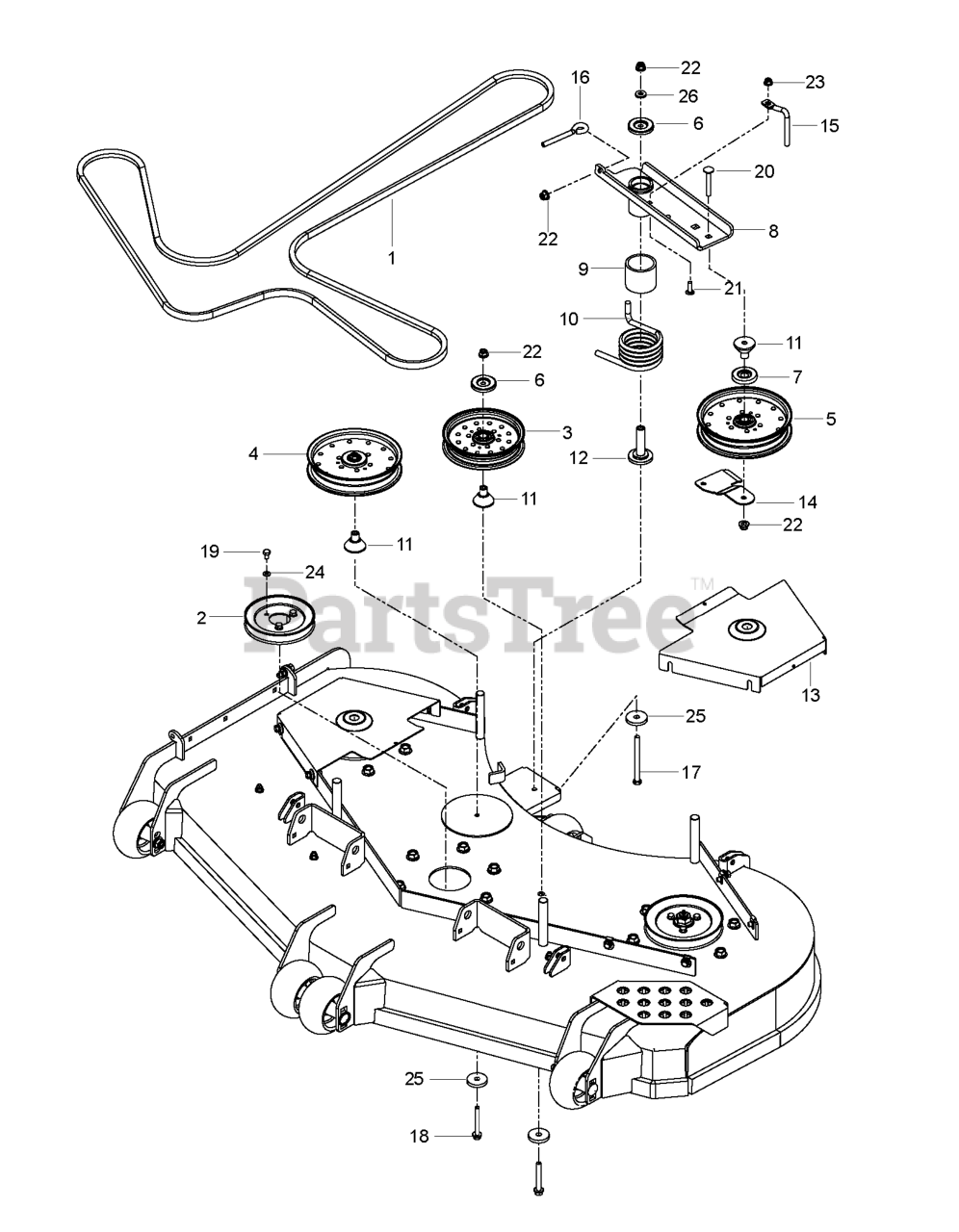

BELT GUARD & PULLEY Parts Diagram

  • Title

2

Husqvarna 539130646

PULLEY - 6.57

$33.99

$

In Stock, Qty 10

0

5

Husqvarna 510015101

PULLEY - IDLER 7"
(Superseded to 510015102)

$77.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539106504

SPINDLE WASHER
(Superseded to 596770301)

$5.99

$

In Stock, only 2 left!

0

15

Husqvarna 574262201

BELT KEEPER
(Superseded to 574262202)

$8.49

$

Usually ships in 3-10 days

0

16

Husqvarna 574202001

EYE BOLT, 3/8 X 4"
(Superseded to 574202002)

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 522023401

WASHER, 3/8 THICK

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539128101

CARRIAGE BOLT 3/8-16 X
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

23

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

6

Husqvarna 510254501

DUST SHIELD
(Superseded to 510254502)

$4.99

$

In Stock, Qty 5

0

18

Husqvarna 874490644

HHFS 3/8-16 X 2-3/4 GR5 ZD
(Superseded to 596436901)

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 510262201

SHIELD, DUST
(Superseded to 596840301)

$33.99

$

In Stock, Qty 10

0

14

Husqvarna 574262102

BELT.GUIDE.BLACK

$43.99

$

In Stock, only 2 left!

0

22

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 13

0

8

Husqvarna 525464403

ASSY, IDLER ARM, PZ
(Superseded to 574722201)

$131.99

$

Usually ships in 3-10 days

0

11

Husqvarna 510263701

BEARING, IDLER ARM

$7.49

$

In Stock, Qty 6

0

13

Husqvarna 510131202

SHIELD,BELT, 60" ORANGE

$77.99

$

Usually ships in 3-10 days

0

9

Husqvarna 525465601

SPACER, IDLER PIVOT

$11.99

$

In Stock, only 1 left!

0

19

Husqvarna 539130315

HCS 5/16-18 X 1/2 GR 5 ZD
(Superseded to 596433301)

$3.99

$

In Stock, Qty 10

0

12

Husqvarna 522729701

BEARING, IDLER PIVOT

$9.99

$

In Stock, only 2 left!

0

21

Husqvarna 872110508

BOLT CRT
(Superseded to 596435701)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 525598201

PULLEY - 7" NARROW
(Superseded to 525598202)

$53.99

$

In Stock, only 2 left!

0

4

Husqvarna 510019601

PULLEY IDLER, 6" NARROW
(Superseded to 597087101)

$65.99

$

In Stock, only 2 left!

0

17

Husqvarna 539101686

HCS 3/8-16 X 4-1/2 GR 8 ZD
(Superseded to 596435401)

$3.99

$

In Stock, only 1 left!

0

1

Husqvarna 588264801

BELT 5V 176.00

$125.99

$

In Stock, Qty 18

0

10

Husqvarna 525310901

SPRING, TORSION, IDLER

$113.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539109600

WASH 5/16 DISC SPRING ZD
(Superseded to 596565001)

$3.99

$

In Stock, only 1 left!

0
