PZ 60 (967045601-00) - Husqvarna 60" Zero-Turn Mower (2015-09) MOWER DECK / CUTTING DECK Parts Diagram

60" Zero-Turn Mower

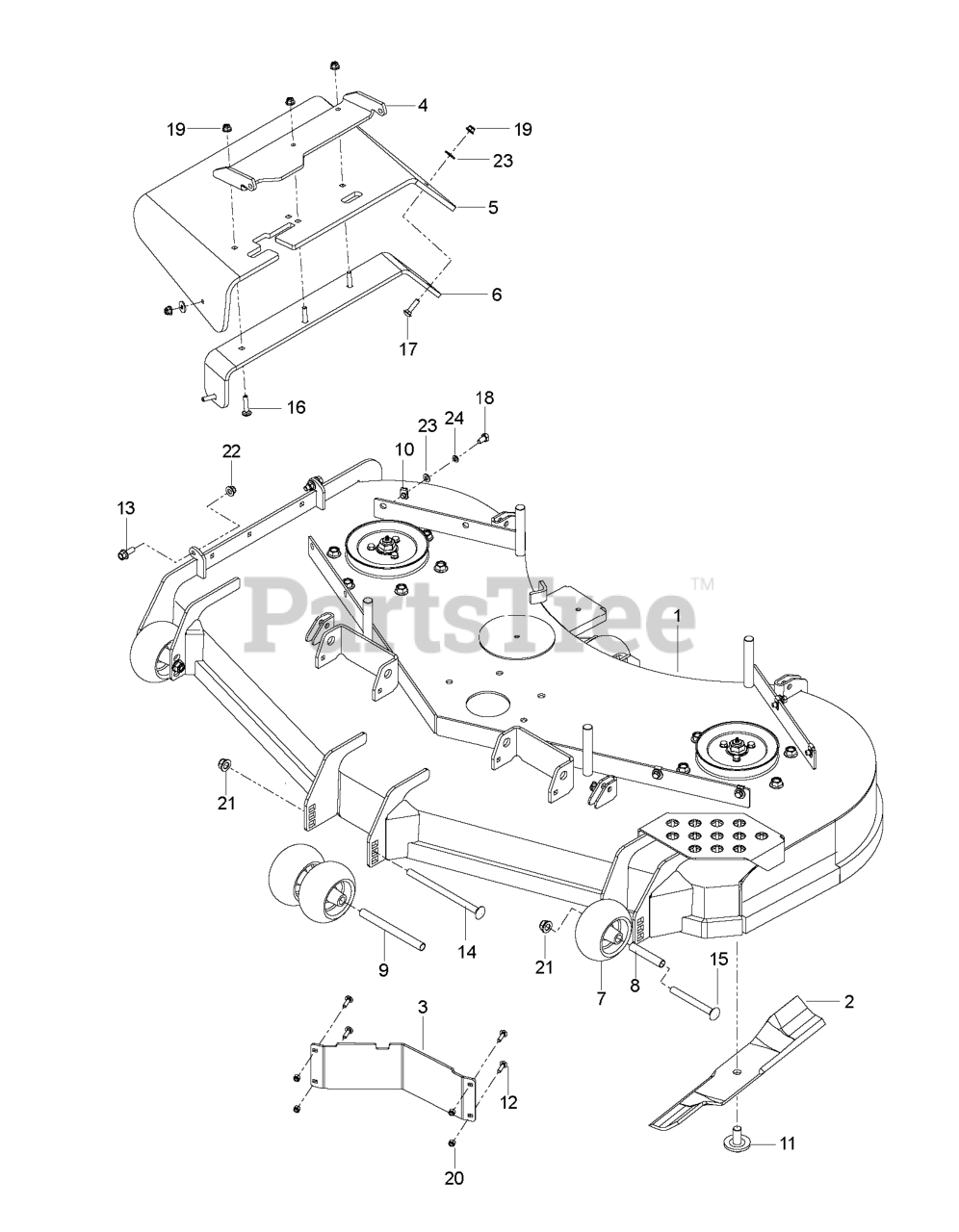

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

14

Husqvarna 872140864

RHSNB 1/2-13 X 8 GR5 ZD
(Superseded to 594944501)

$9.99

$

In Stock, Qty 11

0

21

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 20+

0

Husqvarna 525525901

BLADE, 19" GATOR, 1.25" LIFT

Note: GATOR

$33.99

$

In Stock, Qty 8

0

23

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539115620

1/4-20X3/4 CARR BLT
(Superseded to 596238401)

$3.99

$

In Stock, only 4 left!

0

24

Husqvarna 810030500

WASH.5/16.SLW.ZD
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

Husqvarna 574481101

BLADE, 19" 3X.25X.75 LIFT

Note: LOW LIFT

$33.99

$

Usually ships in 3-10 days

0

3

Husqvarna 510437502

BAFFLE, DIVERTER 54"/60" LH

$59.99

$

Usually ships in 3-10 days

0

9

Husqvarna 574196501

TUBE, ROLLER AXLE LONG
(Superseded to 574196502)

$23.99

$

In Stock, Qty 13

0

11

Husqvarna 539119007

BLADE BOLT/WASHER

$17.99

$

In Stock, Qty 20+

0

18

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00
(Superseded to 596580801)

$3.99

$

In Stock, Qty 15

0

19

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

22

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 12

0

1

Husqvarna 588127602

DECK.SVC.W/DECALS.PZ.60"

$3590.99

$

Usually ships in 3-10 days

0

7

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$21.99

$

In Stock, Qty 20+

0

20

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 18

0

Husqvarna 525307001

BLADE 19 X 3 X .250, 1.50 LIFT

Note: HIGH LIFT

$34.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD
(Superseded to 596030801)

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 525485801

CHUTE, DISCHARGE 48-52

$101.99

$

In Stock, only 2 left!

0

13

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD
(Superseded to 525612802)

$3.99

$

In Stock, only 1 left!

0

8

Husqvarna 574196401

TUBE, ROLLER AXLE
(Superseded to 574196402)

$7.49

$

In Stock, only 2 left!

0

6

Husqvarna 525486002

BRKT, CHUTE SUPPORT BLACK

$107.99

$

In Stock, only 1 left!

0

17

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4
(Superseded to 596671401)

$4.99

$

In Stock, Qty 14

0

2

Husqvarna 539105711

BLADE - HEAVY DUTY 21"

$43.99

$

In Stock, Qty 20+

0

4

Husqvarna 574197002

BRKT - CHUTE MTG BLACK

$74.99

$

Usually ships in 3-10 days

0

15

Husqvarna 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD
(Superseded to 510022302)

$7.49

$

In Stock, only 2 left!

0
