QSP20KAS483 - Exmark 48" Quest P-Series Zero-Turn Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) Frame Group Parts Diagram

48" Quest P-Series Zero-Turn Mower, 20hp Kawasaki

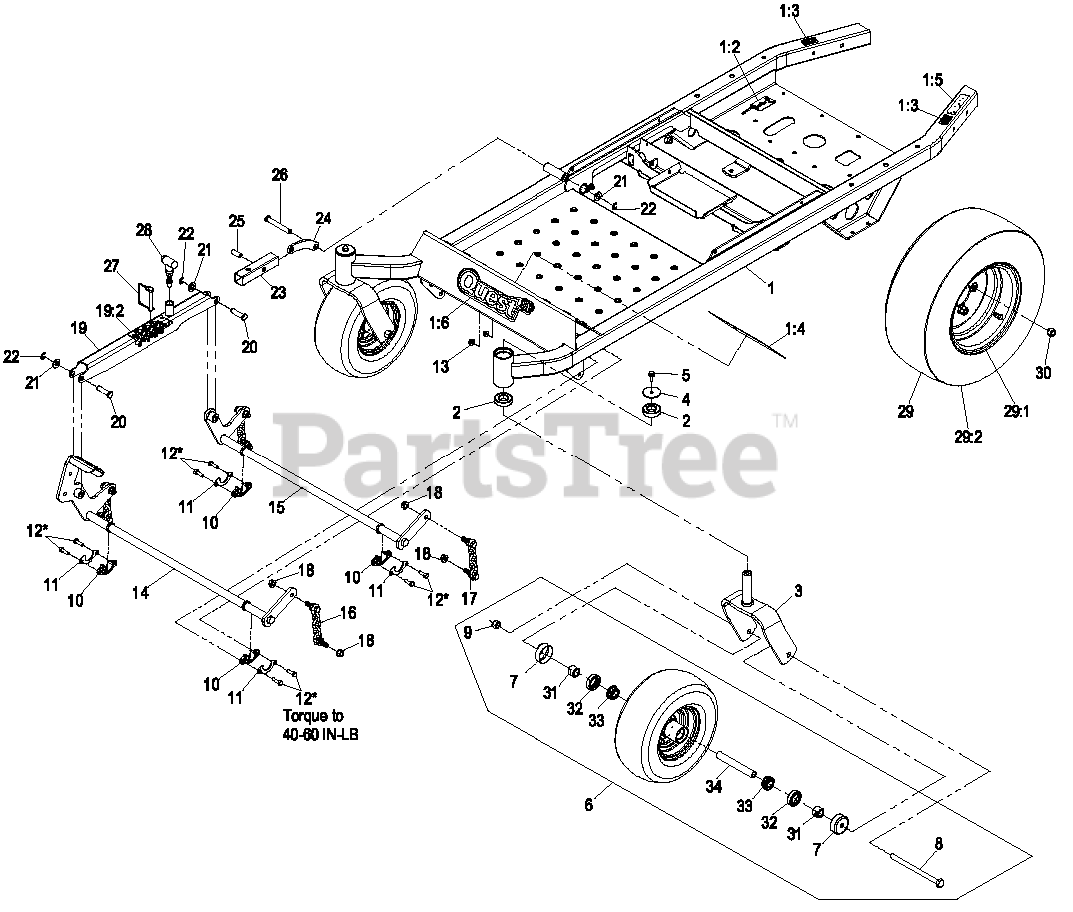

Frame Group Parts Diagram

  • Title

1

Exmark 116-0631

ASM-FRAME W/ DECALS

$

$

Not available

Exmark 116-0946

DISCONTINUED

$

$

Not available

1:2

Exmark 116-1121

DECAL,DRIVE RELEASE

$

$

Not available

1:3

Exmark 103-2076

DECAL-CAUTION

$7.49

$

In Stock, only 3 left!

0

1:4

Exmark 116-2834

DECAL-CONSOLE

$21.99

$

Usually ships in 3-6 days

0

1:5

Exmark 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

Usually ships in 3-6 days

0

1:6

Exmark 116-2477

DECAL-QUEST SP LOGO

$

$

Not available

2

Exmark 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

3

Exmark 116-0611-01

WLD,CASTER FORK

$140.99

$

Usually ships in 3-6 days

0

4

Exmark 109-3724

WASHER

$3.99

$

In Stock, only 1 left!

0

5

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

6

Exmark 103-5189

ASM, WHEEL AND TIRE W/ AX

$272.99

$

In Stock, only 2 left!

0

7

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

8

Exmark 325-36

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 115-5065

BUSHING-FLANGE

$8.49

$

In Stock, Qty 20+

0

11

Exmark 116-2887

GUSSET-LIFT, DECK

$5.99

$

In Stock, Qty 20+

0

12

Exmark 322-5

SCREW-HH

Note: Torque to 40-60 in-lb

$0.99

$

In Stock, Qty 20+

0

13

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Exmark 116-0713-03

WLD,DECK LIFT SHAFT FRT

$

$

Not available

15

Exmark 116-0718-03

WLD,DECK LIFT SHAFT REAR

$

$

Not available

16

Exmark 103-9792

DECK CHAIN ASM

$14.99

$

In Stock, only 1 left!

0

17

Exmark 103-9817

DECK CHAIN ASM

$15.99

$

In Stock, only 2 left!

0

Exmark 103-9817

DECK CHAIN ASM

$15.99

$

In Stock, only 2 left!

0

18

Exmark 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

19

Exmark 116-0372

ASM,HEIGHT ADJUST W/ DECA

$

$

Not available

19:2

Exmark 116-1118

DECAL,HEIGHT OF CUT

$

$

Not available

20

Exmark 109-5819

PIN-CLEVIS

$13.99

$

Usually ships in 3-6 days

0

21

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Exmark 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 10

0

23

Exmark 109-8755

STOP-HEIGHT ADJUST

$

$

Not available

24

Exmark 109-5814

ARM-FLOAT LINK

$

$

Not available

25

Exmark 109-5818

PIN-PIVOT

$5.99

$

Usually ships in 3-6 days

0

26

Exmark 109-6172

PIN-CLEVIS

$

$

Not available

27

Exmark 93-4696

PIN-HITCH

$11.99

$

Usually ships in 3-6 days

0

28

Exmark 109-6177

PIN-SPRING

$60.99

$

Usually ships in 3-6 days

0

29

Exmark 116-2298

WHEEL AND TIRE ASM-20X7-1

$283.99

$

Usually ships in 3-6 days

0

Exmark 116-2761

DISCONTINUED

$

$

Not available

29:1

Exmark 116-2299

WHEEL,10 X 6.00

$

$

Not available

Exmark 116-2762

RIM - 10 INCH

$

$

Not available

29:2

Exmark 116-2300

TIRE,20 X 7-10

$

$

Not available

Exmark 116-2763

TIRE - 20 X 10 - 10 TURFM

$

$

Not available

30

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

31

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022 .5 ml tube) on spacer nut.

$9.49

$

In Stock, Qty 20+

0

32

Exmark 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

33

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$25.99

$

In Stock, Qty 20+

0

34

Exmark 103-3155

126-5360
(Superseded to 126-5360)

$17.99

$

In Stock, only 2 left!

0
