QST22BE482 - Exmark 48" Quest Zero-Turn Mower, 22hp Briggs & Stratton (SN: 670000 - 719999) (2007) Deck Group 48" Parts Diagram

48" Quest Zero-Turn Mower, 22hp Briggs & Stratton

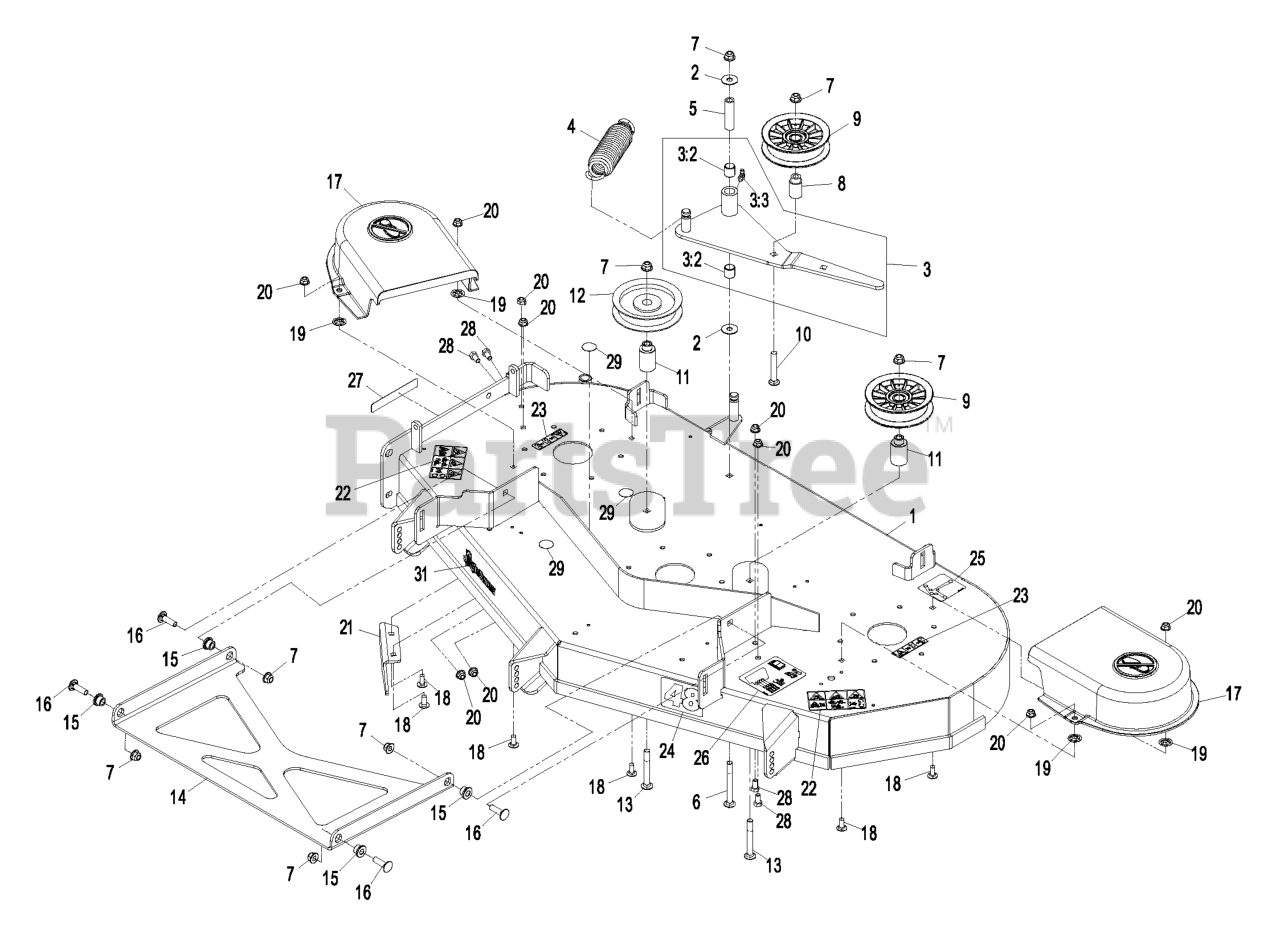

Deck Group 48" Parts Diagram

  • Title

1

Exmark 109-6253

48 INCH DECK ASM

$

$

Not available

2

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

3

Exmark 109-5276

IDLER ARM ASM
(Superseded to 109-9158)

$211.99

$

Usually ships in 3-6 days

0

3:2

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

3:3

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

4

Exmark 103-3330

SPRING, EXTENSION
(Superseded to 116-6317)

$31.99

$

In Stock, Qty 20+

0

5

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

6

Exmark 3231-11

SCREW-CARR

$5.99

$

In Stock, only 3 left!

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 1-413113

BUSHING-IDLER

$6.49

$

In Stock, Qty 20+

0

9

Exmark 109-3658

109-8891
(Superseded to 109-8891)

$37.99

$

In Stock, Qty 11

0

10

Exmark 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 20+

0

11

Exmark 109-6572

BUSHING-IDLER

$16.99

$

In Stock, Qty 6

0

12

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$36.99

$

In Stock, Qty 20+

0

13

Exmark 109-6868

BOLT-CARRIAGE

$5.99

$

In Stock, Qty 12

0

14

Exmark 109-3723-01

STRUT-DECK

$230.99

$

Usually ships in 3-6 days

0

15

Exmark 103-3900

SPACER-STRUT

$9.49

$

In Stock, Qty 9

0

16

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

17

Exmark 109-3449

SHIELD-BELT

$41.99

$

In Stock, Qty 5

0

18

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

19

Exmark 78-7170

RING-RETAINING

$1.49

$

Usually ships in 3-6 days

0

20

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Exmark 109-5498-03

BAFFLE-DISCHARGE

$

$

Not available

22

Exmark 110-6691

DECAL-DANGER

$5.99

$

In Stock, Qty 18

0

23

Exmark 109-6459

DECAL-WARNING, BELT SHIEL

$

$

Not available

24

Exmark 109-6034

DECAL,DECK 48

$17.99

$

In Stock, only 1 left!

0

25

Exmark 109-6035

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 2 left!

0

26

Exmark 109-6036

DECAL-ROLLER, ANTI-SCALP

$7.49

$

Usually ships in 3-6 days

0

27

Exmark 93-7009

DECAL-DANGER

$7.99

$

In Stock, Qty 7

0

28

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

29

Exmark 109-6625

109-9159
(Superseded to 109-9159)

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 1-303520

DISCONTINUED

$

$

Not available

31

Exmark 109-6255

Asm, 48 Deck Complete

Note: Includes all item shown on "Deck Group 48"", Deck Group 48" (Continued)" & "Cutter Housing Assembly 109-6394". Does not include struts or strut hardware.

$

$

Currently unavailable

Exmark 1-850337

PAINT,SPRAY RED

$37.99

$

In Stock, Qty 9

0

Exmark 103-9140

PAINT, TOUCH UP

$25.99

$

Usually ships in 3-6 days

0
