QST22BE482 - Exmark 48" Quest Zero-Turn Mower, 22hp Briggs & Stratton (SN: 670000 - 719999) (2007) Engine Group Parts Diagram

48" Quest Zero-Turn Mower, 22hp Briggs & Stratton

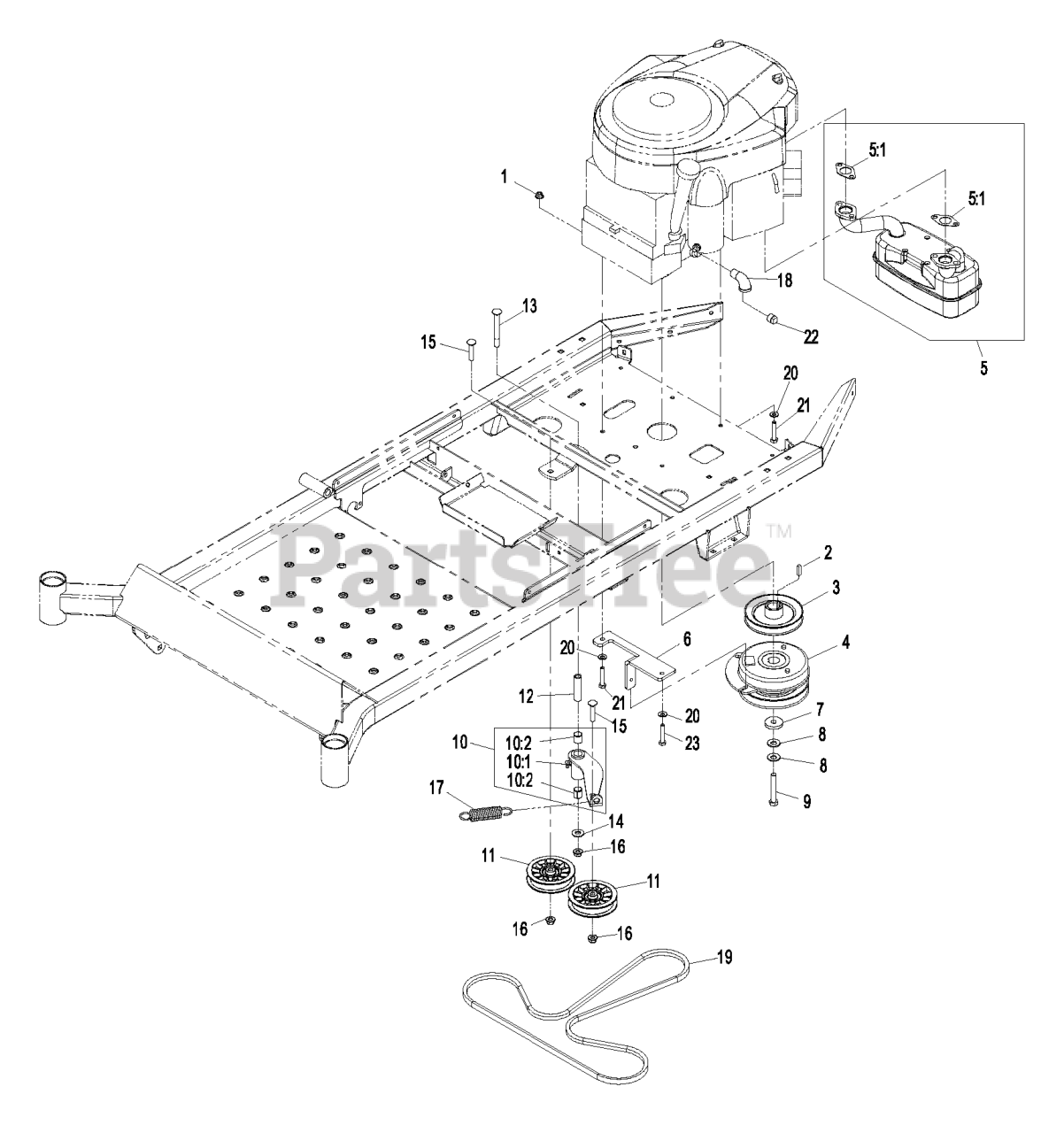

Engine Group Parts Diagram

  • Title

1

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Exmark 5-7280

KEY

$5.99

$

In Stock, Qty 8

0

3

Exmark 109-3386

SHEAVE-SPLIT STEEL

$60.99

$

In Stock, only 2 left!

0

4

Exmark 110-6766

CLUTCH-ELECTRIC, PTO

$625.99

$

Usually ships in 3-6 days

0

5

Exmark 109-6402

109-9760
(Superseded to 109-9760)

$483.99

$

Usually ships in 3-6 days

0

5:1

Exmark 104-3226

GASKET-EXHAUST
(Superseded to 690970)

$7.49

$

In Stock, only 2 left!

0

6

Exmark 109-3694-03

109-8855-03
(Superseded to 109-8855-03)

$49.99

$

Usually ships in 3-6 days

0

7

Exmark 1-543610

WASHER-CLUTCH

$6.99

$

In Stock, Qty 20+

0

8

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

9

Exmark 3212-11

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$8.99

$

Usually ships in 3-6 days

0

10

Exmark 109-5259

109-9162
(Superseded to 109-9162)

$160.99

$

Usually ships in 3-6 days

0

10:1

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

10:2

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

11

Exmark 109-3397

PULLEY-IDLER, FLAT

$26.99

$

In Stock, Qty 20+

0

12

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

13

Exmark 3231-11

SCREW-CARR

$5.99

$

In Stock, only 3 left!

0

14

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

15

Exmark 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-603402

SPRING-EXTENSION

$8.99

$

In Stock, Qty 20+

0

18

Exmark 1-403124

ELBOW-90 DEG

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$

$

Not available

19

Exmark 109-3388

BELT
(Superseded to 109-3388-SL)

$49.99

$

Usually ships in 3-6 days

0

20

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

21

Exmark 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

22

Exmark 281-2

PLUG-PIPE, SQH

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$2.99

$

Usually ships in 3-6 days

0

23

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0
