QST22BE482 - Exmark 48" Quest Zero-Turn Mower, 22hp Briggs & Stratton (SN: 790000 - 849999) (2009) Transaxle Assembly Parts Diagram

48" Quest Zero-Turn Mower, 22hp Briggs & Stratton

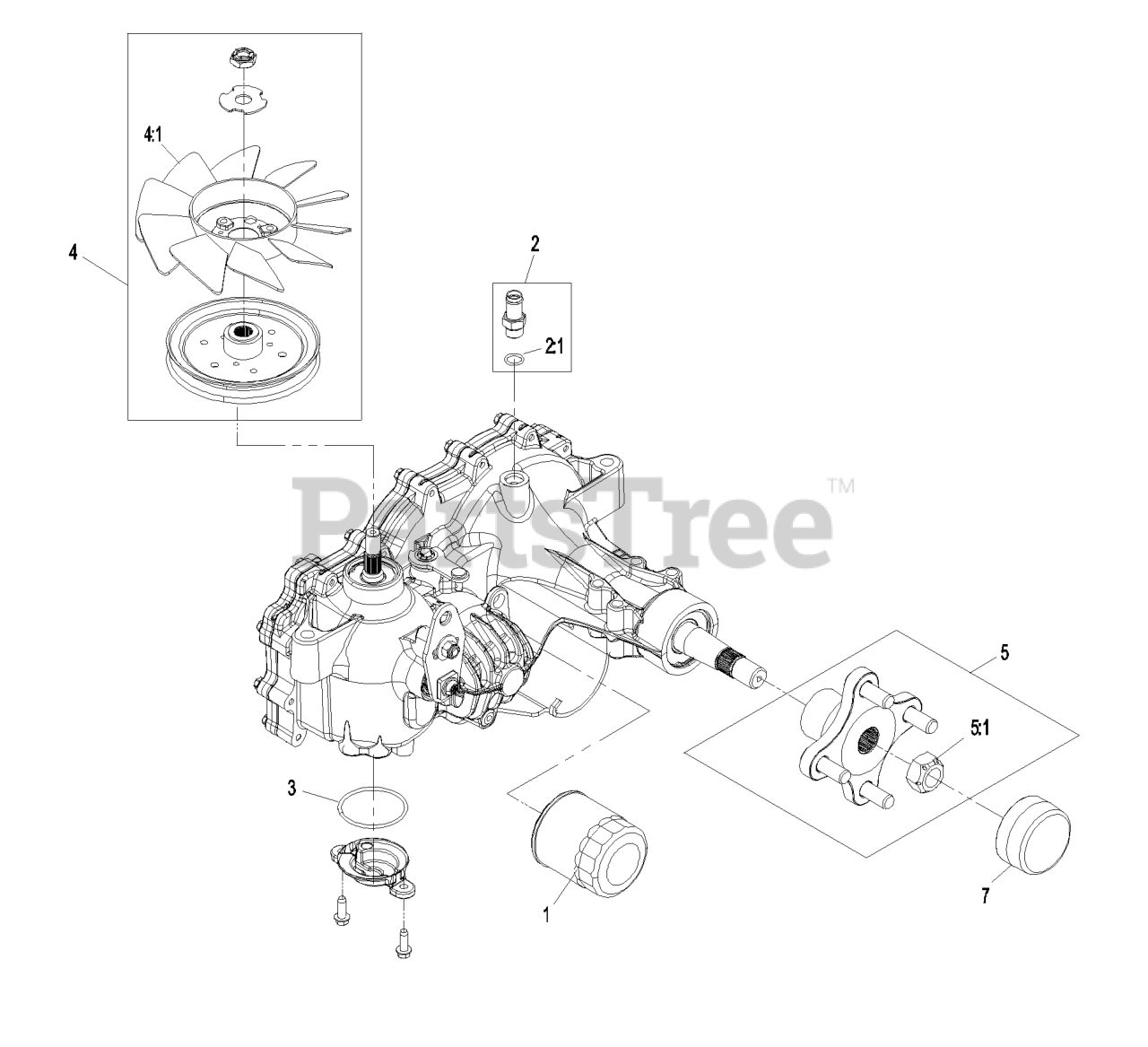

Transaxle Assembly Parts Diagram

  • Title

1

Exmark 109-3321

ELEMENT-OIL FILTER, HYD

$30.99

$

In Stock, Qty 20+

0

2

Exmark 109-3278

ADAPTER-STRAIGHT

$147.99

$

Usually ships in 3-6 days

0

2:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

3

Exmark 109-3540

O RING-SEAL

Note: (48" & 52" Only)

$7.49

$

In Stock, Qty 20+

0

4

Exmark 109-5938

125-0059
(Superseded to 135-7347)

$117.99

$

In Stock, only 2 left!

0

4:1

Exmark 114-8453

125-0059
(Superseded to 135-7347)

$117.99

$

In Stock, only 2 left!

0

5

Exmark 109-5939

HUB KIT

$121.99

$

In Stock, only 2 left!

0

5:1

Exmark 109-3536

NUT-HUB

$25.99

$

Usually ships in 3-6 days

0

6

Exmark 109-3537

SEAL KIT
(Superseded to 140-8351)

Note: Not shown

$115.99

$

In Stock, only 4 left!

0

7

Exmark 115-5057

COVER-NUT, AXLE

$19.99

$

Usually ships in 3-6 days

0
