QT22KA421 - Exmark 42" Quest Zero-Turn Mower, 22hp Kawasaki (SN: 920000 - 999999) (2011) Main Frame and Front Axle Assembly Parts Diagram

42" Quest Zero-Turn Mower, 22hp Kawasaki

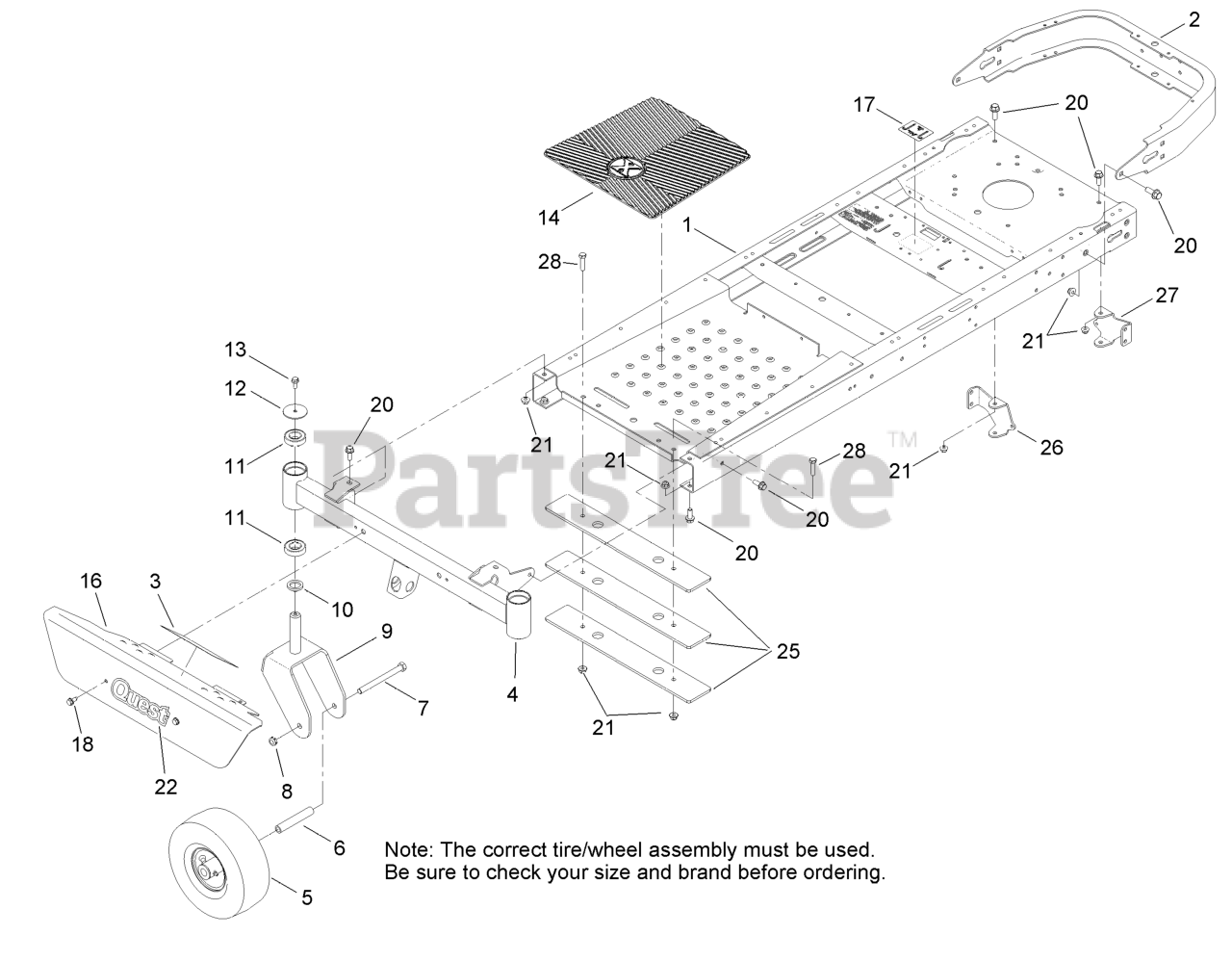

Main Frame and Front Axle Assembly Parts Diagram

  • Title

1

Exmark 117-7260-01

121-2970-01
(Superseded to 121-2970-01)

$

$

Not available

2

Exmark 110-1920-01

BUMPER-REAR

$139.99

$

Usually ships in 3-6 days

0

3

Exmark 120-2239

132-0869
(Superseded to 132-0869)

$11.99

$

In Stock, only 1 left!

0

4

Exmark 120-5516-01

AXLE-FRONT

$364.99

$

Usually ships in 3-6 days

0

5

Exmark 110-6785

CASTER WHEEL ASM

$91.99

$

Usually ships in 3-6 days

0

5

Exmark 120-5515

CASTER WHEEL ASM (CST)

$99.99

$

In Stock, only 2 left!

0

6

Exmark 104-3667

BUSHING-SPANNER

$21.99

$

In Stock, Qty 20+

0

7

Exmark 325-22

SCREW-HH

$8.99

$

In Stock, Qty 15

0

8

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

9

Exmark 120-2266-01

FORK-CASTER

$204.99

$

Usually ships in 3-6 days

0

10

Exmark 117-7394

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

11

Exmark 109-3678

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

12

Exmark 119-8915

WASHER

$3.49

$

In Stock, only 1 left!

0

13

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

14

Exmark 120-5457

MAT-FLOOR

$113.99

$

Usually ships in 3-6 days

0

16

Exmark 117-7332-01

125-0071
(Superseded to 132-0889)

$

$

Not available

17

Exmark 120-5465

DECAL-TRANSPORT

$

$

Not available

18

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

20

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.99

$

In Stock, Qty 20+

0

21

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Exmark 116-4218

DECAL

$

$

Not available

25

Exmark 120-2267-01

PLATE-WEIGHT

$34.99

$

Usually ships in 3-6 days

0

26

Exmark 117-7459-01

MOUNT-HYDRO, REAR (RH)

$19.99

$

Usually ships in 3-6 days

0

27

Exmark 117-7460-01

MOUNT-HYDRO, REAR (LH)

$

$

Not available

28

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
