QTE452CEM42100 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 400000000 - 402082299) (2017) Caster Wheel Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

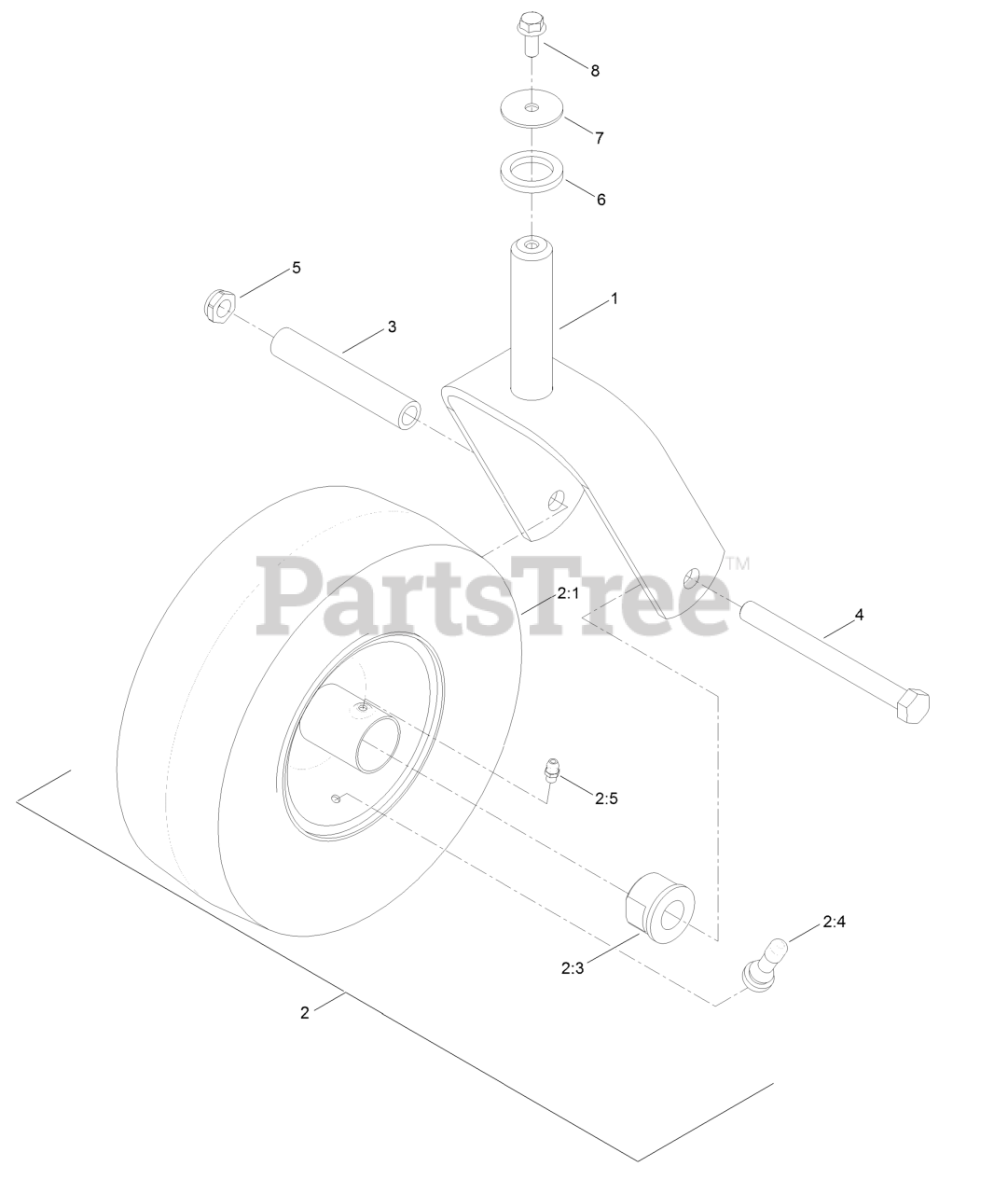

Caster Wheel Assembly Parts Diagram

  • Title

1

Exmark 120-7964-01

CASTER FORK ASM

$79.99

$

In Stock, only 2 left!

0

2

Exmark 130-0736

CASTER WHEEL ASM

$95.99

$

In Stock, Qty 9

0

2:1

Exmark 130-0735

TIRE

$66.99

$

In Stock, only 1 left!

0

2:3

Exmark 114-1640

BUSHING-FLANGE

$13.99

$

In Stock, Qty 20+

0

2:4

Exmark 232-27

Stem-Valve

$

$

Not available

2:5

Exmark 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

2:6

Exmark 105-0844

TUBE-INNER

Note: Not illustrated, Optional Equipment

$51.99

$

In Stock, only 2 left!

0

3

Exmark 104-3667

BUSHING-SPANNER

$21.99

$

In Stock, Qty 20+

0

4

Exmark 325-22

SCREW-HH

$8.99

$

In Stock, Qty 15

0

5

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

6

Exmark 117-7394

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

7

Exmark 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

8

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0
