QTE735KC502 - Exmark 50" Quest E-Series Zero-Turn Mower, Kohler KT735 (SN: 314000000 - 314999999) (2014) Engine and Muffler Assembly Parts Diagram

50" Quest E-Series Zero-Turn Mower, Kohler KT735

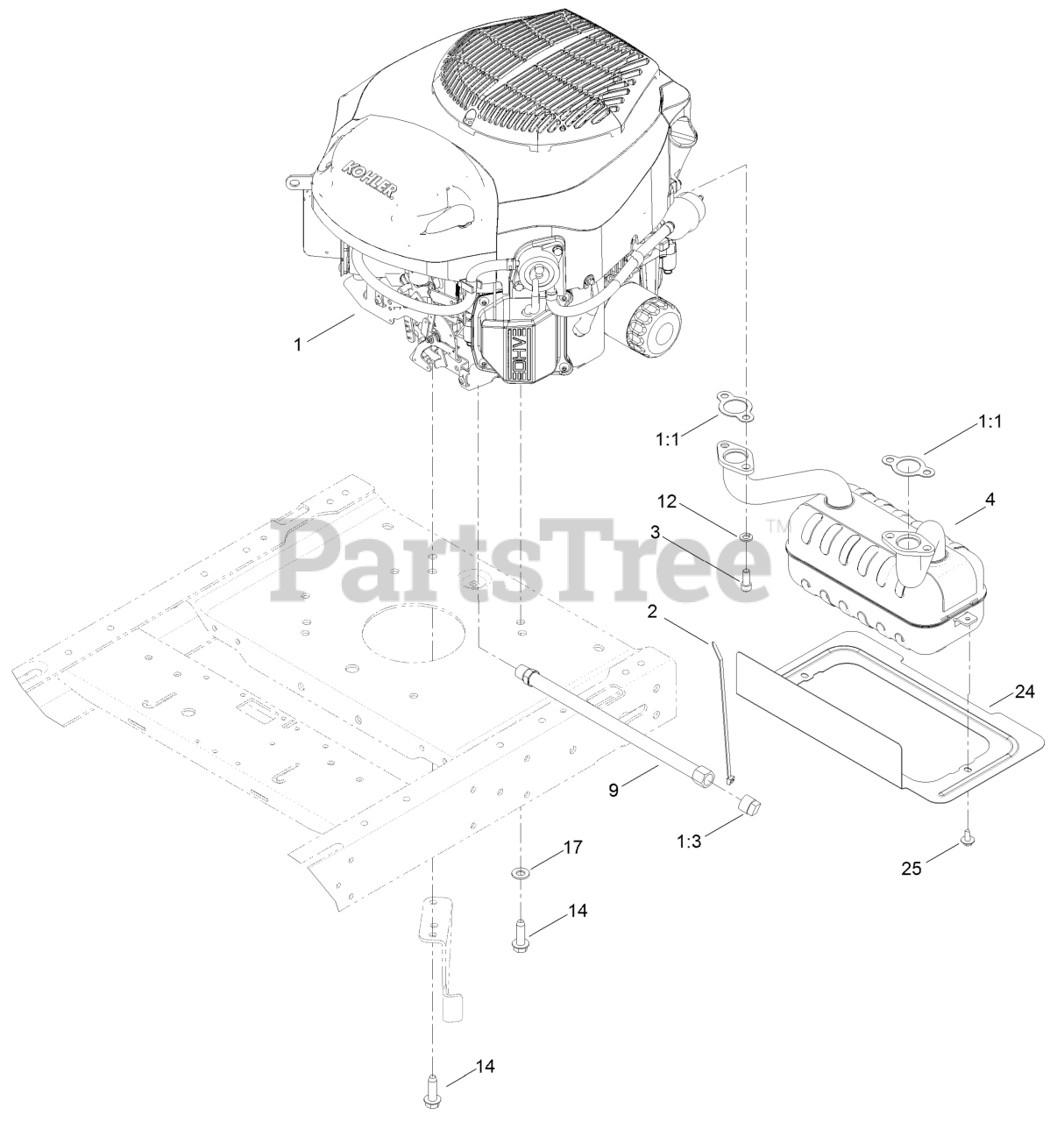

Engine and Muffler Assembly Parts Diagram

  • Title

1

Engine-Kohler, Kt735-3026

Note: Not serviced separately, Obtain parts from www.kohlerplus.com

$

$

Not available

1:1

Exmark 110-6697

GASKET-EXHAUST

$7.49

$

Usually ships in 3-6 days

0

1:3

Exmark 281-2

PLUG-PIPE, SQH

$2.99

$

Usually ships in 3-6 days

0

2

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0

3

Exmark 3274-10

SCREW-HSH

$11.99

$

In Stock, Qty 20+

0

4

Exmark 117-7462

MUFFLER-KOHLER

$274.99

$

Usually ships in 3-6 days

0

9

Exmark 117-1261

HOSE-DRAIN, OIL

$34.99

$

In Stock, Qty 15

0

12

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Exmark 32144-109

SCREW-THD

$5.49

$

In Stock, Qty 20+

0

17

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Exmark 121-2973-03

SHIELD-HEAT

$38.99

$

In Stock, Qty 11

0

25

Exmark 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0
