QTS452CEM34200 - Exmark 34" Quest S-Series Zero-Turn Mower, Exmark 452 (SN: 316000000 - 399999999) (2016) 34 Inch Deck, Belt, and Blade Assembly Parts Diagram

34" Quest S-Series Zero-Turn Mower, Exmark 452

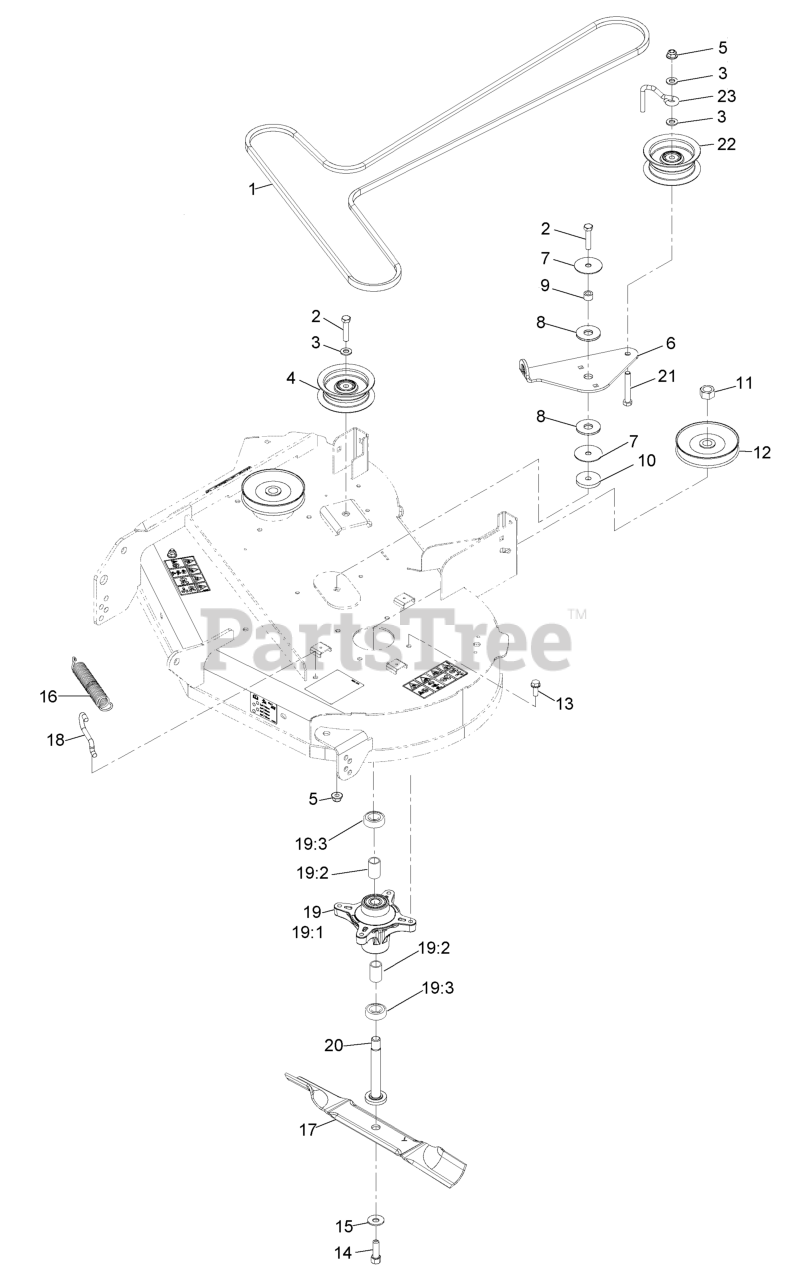

34 Inch Deck, Belt, and Blade Assembly Parts Diagram

  • Title

1

Exmark 130-0842

BELT-V
(Superseded to 130-0842-SL)

$83.99

$

In Stock, Qty 18

0

2

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Exmark 106-2175

132-9420
(Superseded to 132-9420)

$37.99

$

In Stock, Qty 20+

0

5

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 114-8540

ARM-IDLER

$23.99

$

In Stock, only 4 left!

0

7

Exmark 120-2229

WASHER

$2.99

$

In Stock, Qty 20+

0

8

Exmark 114-0463

WASHER-FRICTION, COMPOSIT

$5.99

$

In Stock, Qty 20+

0

9

Exmark 115-4986

SPACER

$2.99

$

In Stock, Qty 20+

0

10

Exmark 110-9981

WASHER-PLAIN
(Superseded to 110-9981)

$16.99

$

In Stock, Qty 20+

0

11

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

12

Exmark 127-0098

PULLEY ASM

$42.99

$

In Stock, Qty 9

0

13

Exmark 32144-41

SCREW-TAPTITE

$5.99

$

In Stock, Qty 20+

0

14

Exmark 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

15

Exmark 3290-465

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

16

Exmark 106-2177

SPRING-EXTENSION

$15.99

$

In Stock, Qty 10

0

17

Exmark 115-5059-03

BLADE-HI LIFT
(Superseded to 142-6453-S)

$27.99

$

In Stock, Qty 20+

0

18

Exmark 88-5970

HOOK-RETURN, SPRING
(Superseded to 138-7267)

$2.99

$

In Stock, Qty 20+

0

19

Exmark 121-0751

SPINDLE ASM
(Superseded to 139-3214)

$84.99

$

In Stock, Qty 17

0

19:1

Exmark 117-7267

121-0751
(Superseded to 139-3214)

$84.99

$

In Stock, Qty 17

0

19:2

Exmark 120-7935

SPACER

$2.49

$

In Stock, Qty 20+

0

19:3

Exmark 38-7820

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

20

Exmark 117-7268

SHAFT-SPINDLE

$34.99

$

In Stock, Qty 20+

0

21

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

22

Exmark 88-5630

132-4717
(Superseded to 132-4717)

$25.99

$

In Stock, Qty 5

0

23

Exmark 107-7307

GUIDE-IDLER, BELT
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 20+

0
