QTS452CEM34200 - Exmark 34" Quest S-Series Zero-Turn Mower, Exmark 452 (SN: 316000000 - 399999999) (2016) Left hand Hydro Transaxle Assembly No. 119-3340 Parts Diagram

34" Quest S-Series Zero-Turn Mower, Exmark 452

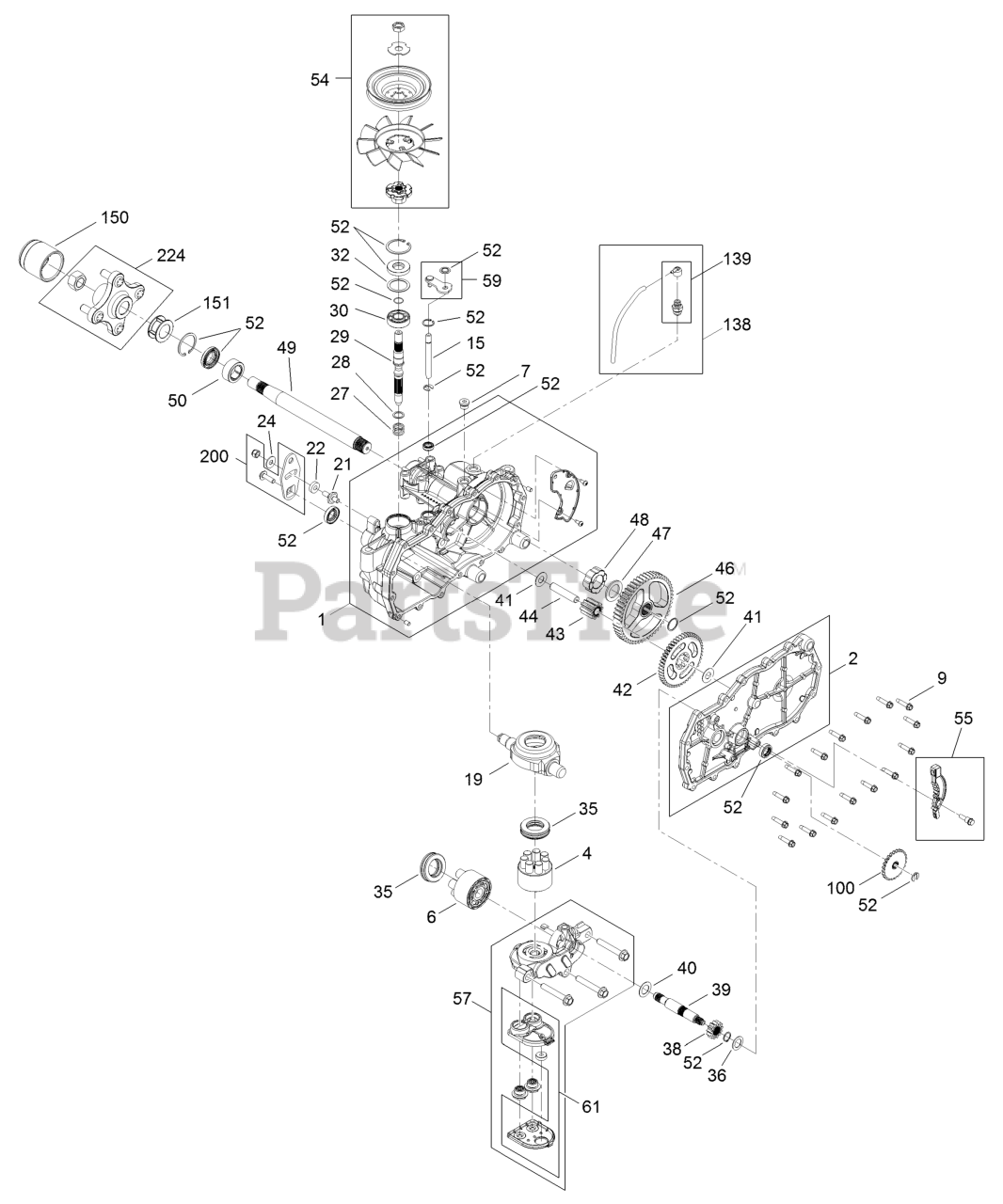

Left hand Hydro Transaxle Assembly No. 119-3340 Parts Diagram

  • Title

1

Exmark 106-8695

MAIN HOUSING ASM

$1049.99

$

Usually ships in 3-6 days

0

2

Exmark 106-8696

SIDE ASM

$762.99

$

Usually ships in 3-6 days

0

4

Exmark 110-8561

PUMP BLOCK ASM

$431.99

$

Usually ships in 3-6 days

0

6

Exmark 103-2666

CYLINDER BLOCK KIT

$614.99

$

Usually ships in 3-6 days

0

7

Exmark 104-2189

PLUG-THREAD, STRAIGHT

$29.99

$

In Stock, only 2 left!

0

9

Exmark 104-5305

SCREW-HHF
(Superseded to 117-5359)

$3.49

$

In Stock, only 1 left!

0

15

Exmark 106-8678

ROD-BYPASS

$63.99

$

Usually ships in 3-6 days

0

19

Exmark 104-5304

SWASHPLATE-TRUNNION

$212.99

$

Usually ships in 3-6 days

0

21

Exmark 104-2116

STUD

$42.99

$

Usually ships in 3-6 days

0

22

Exmark 112-9853

PUCK-FRICTION

$8.99

$

Usually ships in 3-6 days

0

24

Exmark 114-8491

WASHER

$5.99

$

Usually ships in 3-6 days

0

27

Exmark 120-5537

94-1936
(Superseded to 94-1936)

$9.49

$

In Stock, only 1 left!

0

28

Exmark 120-5538

WASHER

$5.99

$

Usually ships in 3-6 days

0

29

Exmark 104-5306

SHAFT-INPUT

$422.99

$

Usually ships in 3-6 days

0

30

Exmark 104-5311

BEARING-BALL

$50.99

$

In Stock, only 3 left!

0

32

Exmark 104-5308

SPACER

$9.49

$

In Stock, only 2 left!

0

35

Exmark 94-6922

BEARING-THRUST

$70.99

$

In Stock, only 2 left!

0

36

Exmark 104-5339

WASHER-FLAT

$7.49

$

Usually ships in 3-6 days

0

38

Exmark 104-5316

GEAR-PINNION, 13T

$36.99

$

Usually ships in 3-6 days

0

39

Exmark 106-8683

SHAFT-MOTOR

$327.99

$

Usually ships in 3-6 days

0

40

Exmark 104-5360

WASHER

$8.99

$

Usually ships in 3-6 days

0

41

Exmark 119-5541

Washer
(Superseded to 94-1933)

$7.49

$

Usually ships in 3-6 days

0

42

Exmark 104-5317

GEAR-10T/48T

$210.99

$

Usually ships in 3-6 days

0

43

Exmark 104-5318

GEAR-JACKSHAFT, 10T

$95.99

$

Usually ships in 3-6 days

0

44

Exmark 104-5329

PIN-JACKSHAFT

$123.99

$

Usually ships in 3-6 days

0

46

Exmark 112-9855

GEAR-52T, BULL

$184.99

$

Usually ships in 3-6 days

0

47

Exmark 112-9856

WASHER

$9.49

$

Usually ships in 3-6 days

0

48

Exmark 112-9857

BEARING-SLEEVE

$21.99

$

In Stock, only 1 left!

0

49

Exmark 121-5732

SHAFT-AXLE

$210.99

$

Usually ships in 3-6 days

0

50

Exmark 112-9859

BUSHING-AXLE

$16.99

$

Usually ships in 3-6 days

0

52

Exmark 106-8686

SEAL KIT

$240.99

$

In Stock, only 1 left!

0

54

Exmark 121-5729

FAN PULLEY KIT

$128.99

$

In Stock, only 2 left!

0

55

Exmark 106-8688

BRAKE ARM KIT

$46.99

$

In Stock, Qty 20+

0

57

Exmark 112-9861

CENTER SECTION FILTER KIT

$654.99

$

Usually ships in 3-6 days

0

58

Exmark 104-2147

SEALANT

Note: Not illustrated

$129.99

$

Usually ships in 3-6 days

0

59

Exmark 120-5549

BYPASS KIT

$47.99

$

Usually ships in 3-6 days

0

61

Exmark 114-1634

FILTER KIT

$51.99

$

In Stock, Qty 7

0

100

Exmark 106-8694

DISC-BRAKE, COG

$66.99

$

In Stock, Qty 6

0

138

Exmark 112-9866

BREATHER KIT

$59.99

$

In Stock, only 2 left!

0

139

Exmark 114-1635

BREATHER ASM

$51.99

$

In Stock, only 2 left!

0

150

Exmark 116-6214

CAP-AXLE, LONG

$18.99

$

In Stock, only 2 left!

0

151

Exmark 121-5734

TUBE-AXLE

$7.49

$

Usually ships in 3-6 days

0

200

Exmark 117-5362

CONTROL ARM KIT

$33.99

$

In Stock, only 2 left!

0

224

Exmark 109-3538

116-3872
(Superseded to 116-3872)

$77.99

$

In Stock, only 3 left!

0
