QTS691KA422 - Exmark 42" Quest S-Series Zero-Turn Mower, Kawasaki FR691V (SN: 313000000 - 313999999) (2013) Hydro Transaxle Assembly Parts Diagram

42" Quest S-Series Zero-Turn Mower, Kawasaki FR691V

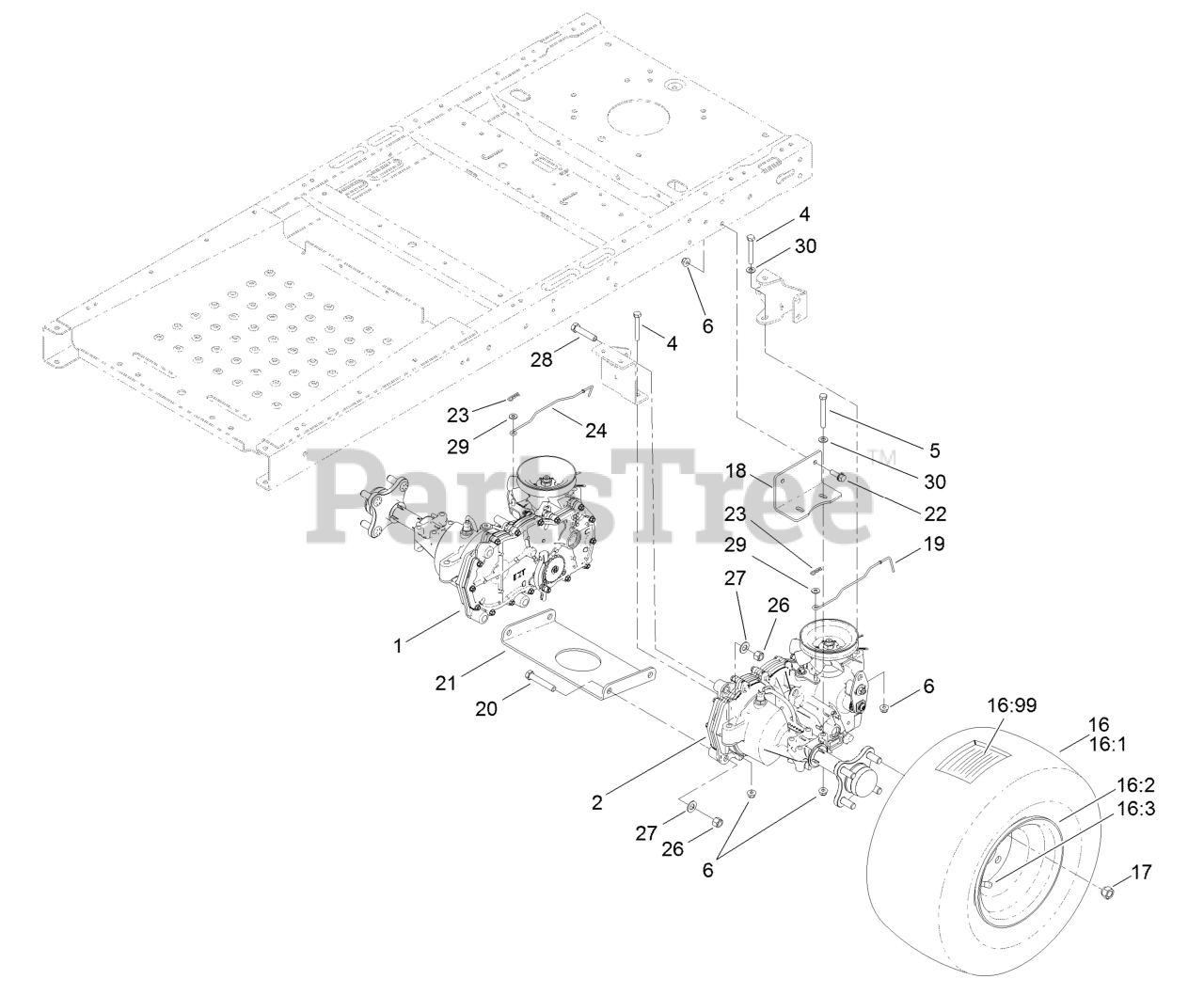

Hydro Transaxle Assembly Parts Diagram

  • Title

1

Exmark 119-3341

RH HYDRO TRANSAXLE ASM

$1670.99

$

Usually ships in 3-6 days

0

2

Exmark 119-3340

LH HYDRO TRANSAXLE ASM

$1499.99

$

Usually ships in 3-6 days

0

4

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 14

0

5

Exmark 322-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 120-5523

4 PLY WHEEL AND TIRE ASM

$267.99

$

Usually ships in 3-6 days

0

16:1

Exmark 119-8907

TIRE-4 PLY

$231.99

$

Usually ships in 3-6 days

0

16:2

Exmark 107-2475

WHEEL

$84.99

$

In Stock, Qty 6

0

16:3

Exmark 232-27

Stem-Valve

$

$

Not available

16:99

Exmark 107-2491

TUBE-TIRE

$90.99

$

In Stock, only 2 left!

0

17

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

18

Exmark 117-7264-03

MOUNT-HYDRO

$10.99

$

Usually ships in 3-6 days

0

19

Exmark 121-2971

ROD-BYPASS, LH

$10.99

$

Usually ships in 3-6 days

0

20

Exmark 324-10

SCREW-HH

$2.49

$

In Stock, Qty 7

0

21

Exmark 119-3339-03

PLATE-CROSS, HYDRO

$28.99

$

Usually ships in 3-6 days

0

22

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

23

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

24

Exmark 121-0752

ROD-BYPASS, RH

$45.99

$

Usually ships in 3-6 days

0

26

Exmark 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Exmark 3256-25

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

28

Exmark 324-8

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

29

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
