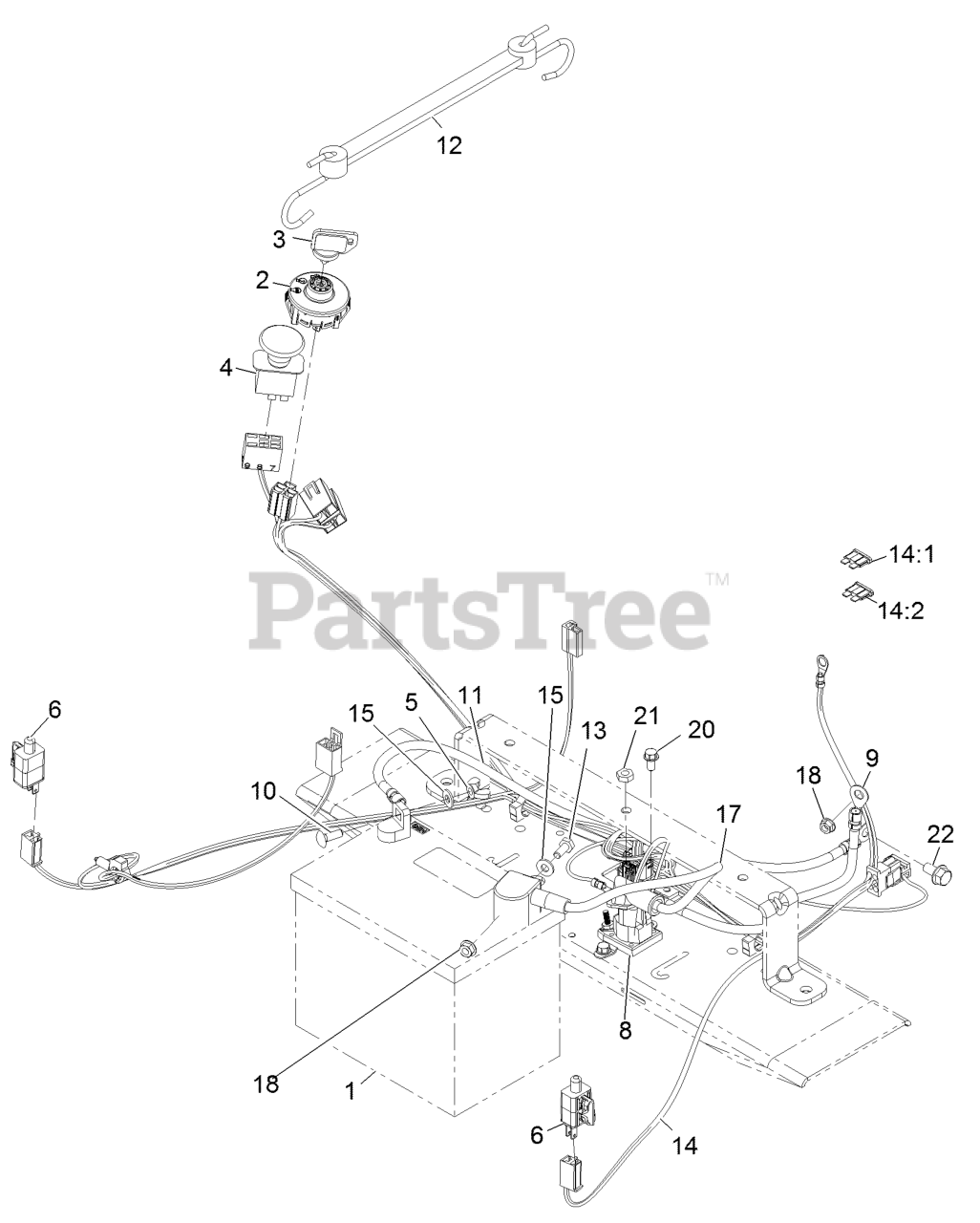

QTS691KA502 - Exmark 50" Quest S-Series Zero-Turn Mower, Kawasaki FR691V (SN: 312000000 - 312999999) (2012) Electrical Assembly Parts Diagram

50" Quest S-Series Zero-Turn Mower, Kawasaki FR691V

Electrical Assembly Parts Diagram

  • Title

1

Battery

Note: (Not Used) Not serviced separately

$

$

Not available

2

Exmark 117-2221

137-4100
(Superseded to 137-4100)

$30.99

$

In Stock, Qty 20+

0

3

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

4

Exmark 103-5221

SWITCH-PTO

$63.99

$

In Stock, Qty 5

0

5

Exmark 32103-22

NUT-WING

$2.99

$

In Stock, only 3 left!

0

6

Exmark 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

8

Exmark 117-1197

SOLENOID

$50.99

$

In Stock, Qty 20+

0

9

Exmark 119-8898

CABLE-BATTERY, RED

$18.99

$

In Stock, only 2 left!

0

10

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

11

Exmark 119-8899

CABLE-BATTERY, BLACK

$18.99

$

In Stock, only 2 left!

0

12

Exmark 104-2466

HOLDDOWN-BATTERY

$26.99

$

In Stock, only 2 left!

0

13

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Exmark 121-5652

136-9184
(Superseded to 136-9184)

$164.99

$

In Stock, only 2 left!

0

14:1

Exmark 109103

FUSE-BLADE, 30 AMP

$7.49

$

In Stock, only 4 left!

0

14:2

Exmark 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, Qty 16

0

15

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Exmark 119-8897

CABLE-BATTERY, RED

$25.99

$

In Stock, only 2 left!

0

18

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

20

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 19

0

22

Exmark 33104-016

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0
